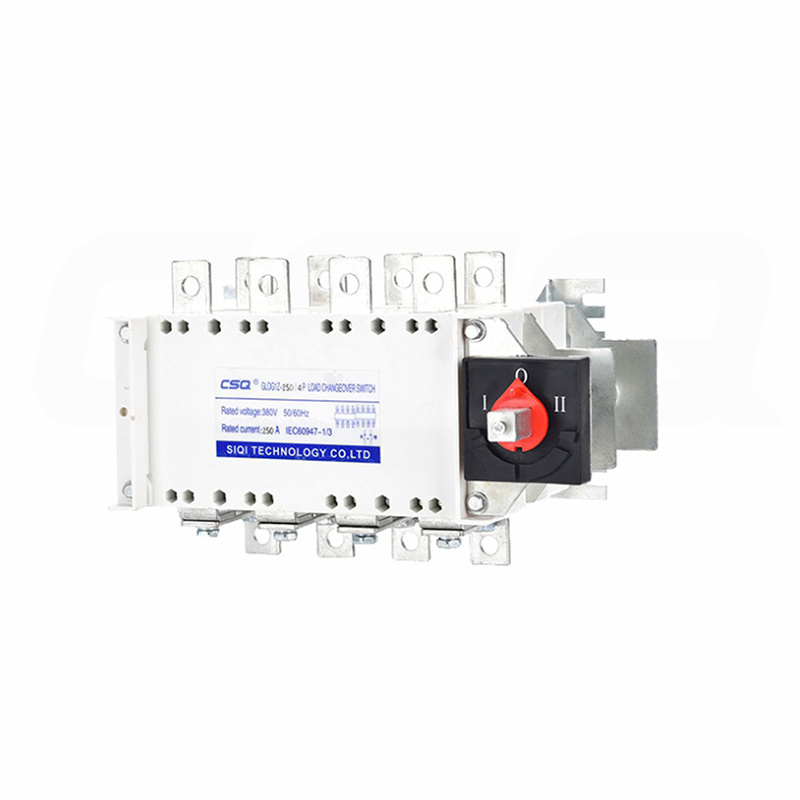

1.The load isolation switch is suitable for the changeover of two sets of low voltage electric circuit or the change over of 2sets of load devices or safety isolation.
2.Mode of operation
Direct operation:handle is installed on the switch Operation outside the board:handle is installed outside the door of power distributing board. If you need operation outside the board,then it is with extended shaft that is used for the operation outside the board.
3.the products have 3poles, 4poles(three poles+on and off neural pole)
4.Two sets of auiliary contacts can be assmebled according to the demand.
So if you need,please do talk with us or leave message when you send us enquiry.If you do not mention about this,our switch will not include auiliary contacts.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCGZ1-400A
-
Max. Current:
-
3200A
-
certificate:
-
CE,CCC,ISO9001,PICC
-
Poles:
-
3P,4P
-
professional manufacturer:
-
10 years
-
Product name:
-
Manual Changeover Switch
-
Color:
-
White
-
Keywords:
-
Changeover Switch
-
Voltage:
-
690V
-
Frequency:
-
50Hz/60Hz
-
Warranty:
-
18 Months
-
Type:
-
Changeover Switch
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
AC380V/660V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCGZ1-400A
-
Max. Current:
-
3200A
-
certificate:
-
CE,CCC,ISO9001,PICC
-
Poles:
-
3P,4P
-
professional manufacturer:
-
10 years
-
Product name:
-
Manual Changeover Switch
-
Color:
-
White
-
Keywords:
-
Changeover Switch
-
Voltage:
-
690V
-
Frequency:
-
50Hz/60Hz
-
Warranty:
-
18 Months
-
Type:
-
Changeover Switch
Products Description
Product Paramenters
|
Current
|
160A
|
250A
|
630A
|
1600A
|
3200A
|
||||
|
Rated insulation voltage Ui
|
690V
|
|
|
|
|
||||
|
Rated impaction withstand voltage Uimp
|
8KV
|
|
|
|
|
||||
|
Rated working voltage Ue
|
AC380V
|
|
|
|
|
||||
|
Rated working current Ie
|
160A
|
250A
|
630A
|
1600A
|
3200A
|
||||
|
Position
|
I-O-II
|
|
|
|
|
||||
|
Rated making capacity
|
10Ie
|
|
|
|
|
||||
|
Rated breaking capacity
|
8Ie
|
|
|
|
|
||||
|
Rated limting short-circuit current
|
50KA
|
|
|
|
|
||||
|
Rated short time withstand current Ie
|
7KA
|
|
|
|
|
||||
|
Poles
|
3p & 4p
|
|
|
|
|
||||
|
Voltage of control power supply
|
AC220V
|
|
|
|
|
||||
|
Energy consumption of the motor
|
40W
|
|
|
|
|
||||
|
Weight Kg
|
5
|
8
|
15
|
65
|
130
|
||||
