Quick Details
-
Application:
-
Used Tire Roller Rubber Shredder Blades
-
Spindle material:
-
40Cr
-
Gear Motor:
-
SEW gear Motor
-
Shredder blades Material:
-
Cr12Mov, 55SiCr, D2
-
Equipment:
-
tire recycling machine
-
Final Product:
-
powder or pellet customized
-
Item:
-
Tyre rubber recycling shredder machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Motor:
-
Siemens
-
Bearing:
-
NSK or SKFBearing
-
Application:
-
Used Tire Roller Rubber Shredder Blades
-
Spindle material:
-
40Cr
-
Gear Motor:
-
SEW gear Motor
-
Shredder blades Material:
-
Cr12Mov, 55SiCr, D2
-
Equipment:
-
tire recycling machine
-
Final Product:
-
powder or pellet customized
-
Item:
-
Tyre rubber recycling shredder machine
2019 New design Waste Tire Recycling Machine Double Hooks Tire Debeader
Tire shredder for the treatment of waste tires in the rubber, tires can be torn into smaller pieces to facilitate the crushing, fine powder and other deep processing, to achieve a reasonable resource recycling,energy saving and environmental protection purposes. With the increase of the number of the car, waste tires are also increasing,recycling tire rubber has formed a large-scale market. Re-use of recycled rubber, whether it is grinding or melting extrusion, need a certain specifications of the rubber particles, so the tire shredding machine has an obvious effect on the tire shredding recycling production line.
Technical Parameter:
| Mondel |
Blade Specifications (mm) |
Blade Quantity (piece) |
Reducer (set) |
Motor Power (kw) |
Spindle Speeds (r/min) |
Dimensions (mm) |
| LDT600 | Φ250*10 | 48 | 400*2 | 15*2 | 18-25 | 1450*870*2200 |
| LDT800 | Φ250*20 | 32 | 400*2 | 30*2 | 18-25 | 2150*870*2200 |
| LDT1000 | Φ350*30 | 28 | 650*2 | 37*2 | 18-25 | 3400*1250*2200 |
| LDT1200 | Φ350*30 | 38 | 650*2 | 55*2 | 18-25 | 4150*1250*2200 |
| LDT1500 | Φ400*40 | 36 | 750*2 | 75*2 | 18-25 | 4150*1250*2200 |
| LDT2000 | Φ530*50 | 38 | 850*2 | 90*2 | 18-25 | 5250*1780*2200 |
Steel Wire Puller (Hook Debeader):
Separator & Rubber Crushing Machine :

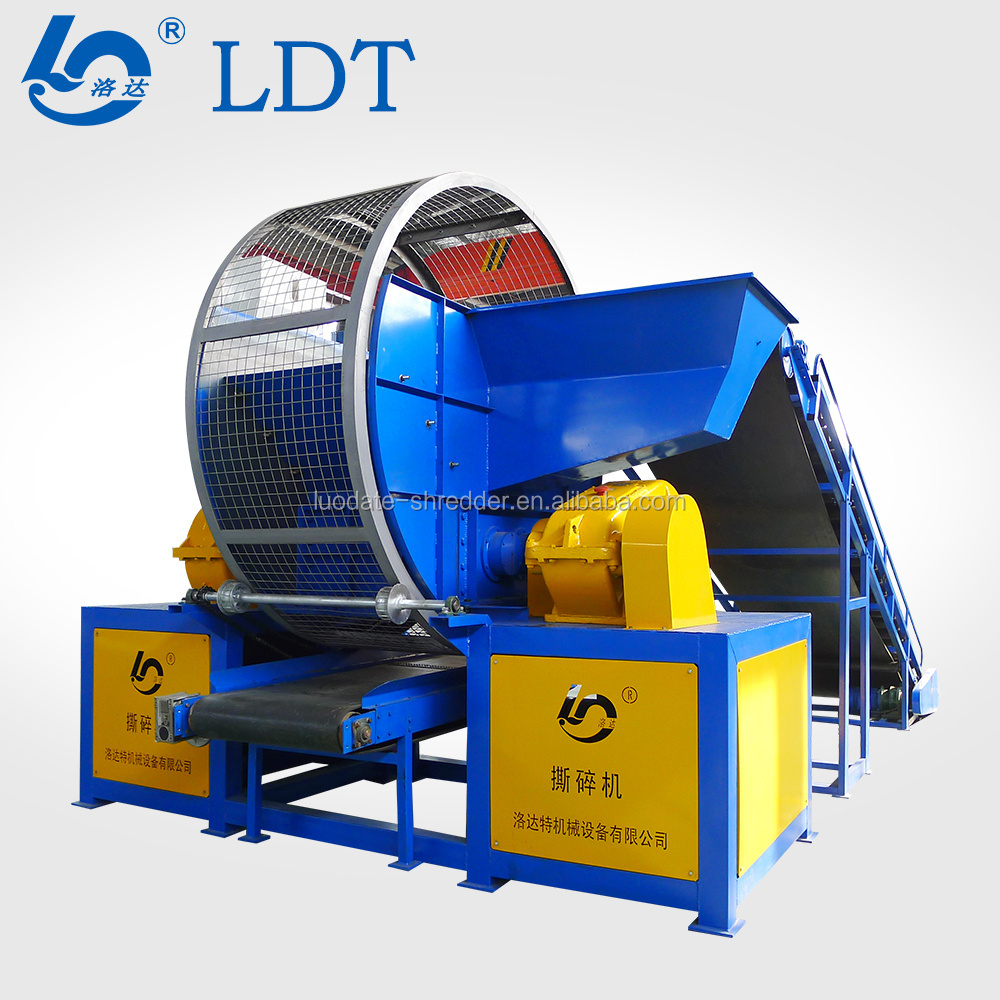

1. Tire shredders, rubber shredders is made of the rack, motor, reducer, broken warehouse, rotary screen, PLC control system and other components.
2. When the material into the broken crusher, the two sets of teeth under the strong shear was broken, broken material with the two groups of the role of blocking plate, fall into the rotary screen, through the rotary screen screening, to meet the requirements of the material will be Screening out, did not meet the requirements of the material need to re-enter the crushing chamber broken.
3. If the material is hard to break, the two main rolls will be reversed automatically under the automatic control system of PLC, then can be turned back and forward repeatedly until the material is broken and discharged.
1. For the material properties, the flexibility to choose the equipment knife roller will enhance the effect of crushing.
2. Different knife rooler can be used for different material requirements.
3. The correct choice of knife roller can greatly improve the design performance and production efficiency.
