Quick Details
-
Product name:
-
Removable Access Pannel
-
Material:
-
Aluminum Alloy & Galvanized Sheet
-
Shape:
-
Rectangle
-
Size:
-
Customized Size
-
Color:
-
White
-
Surface finish:
-
Powder coated
-
ODM/OEM:
-
Acceptable
-
Sample:
-
Available
-
Installation:
-
Ceiling, wall
-
Usage:
-
HAVC System
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XUXING
-
Model Number:
-
AD-R
-
Product name:
-
Removable Access Pannel
-
Material:
-
Aluminum Alloy & Galvanized Sheet
-
Shape:
-
Rectangle
-
Size:
-
Customized Size
-
Color:
-
White
-
Surface finish:
-
Powder coated
-
ODM/OEM:
-
Acceptable
-
Sample:
-
Available
-
Installation:
-
Ceiling, wall
-
Usage:
-
HAVC System
Products Description
Description:

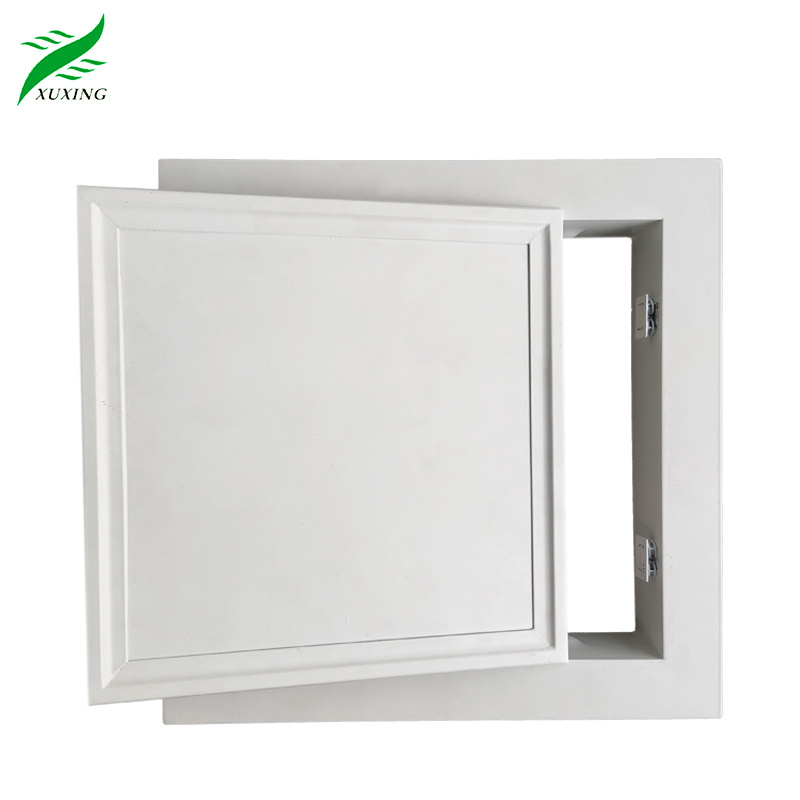

* The frame & inner panel are high quality extruded aluminum sheet and galvanized sheet construction with advantages of corrosion resistance and rigidity.
* It consists out frame and inner panel. The inner panel is fixed to the out-frame by fastener one side and steel spring pins in the other side.
* The panel is dischargeable from the out-frame by pushing from one side to the other side horizontally.
* The frame & inner panel are high quality extruded aluminum sheet and galvanized sheet construction with advantages of corrosion resistance and rigidity.
* It consists out frame and inner panel. The inner panel is fixed to the out-frame by fastener one side and steel spring pins in the other side.
* The panel is dischargeable from the out-frame by pushing from one side to the other side horizontally.
Construction:
* Panel: High quality galvanized sheet / aluminum alloy.
* Out frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange
* Panel: High quality galvanized sheet / aluminum alloy.
* Out frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange
Surface Finish:
* Powder coated color finish as per RAL color
standard color: RAL9016
* Powder coated color finish as per RAL color
standard color: RAL9016
Size:
* Any size available
* Over face size= Neck size +60mm
* Standard size (Neck size=A)
* Over face size= Neck size +60mm
* Standard size (Neck size=A)
|
Item Code
|
A = Neck size(mm)
|
Face Size(mm)
|
|
AD-R-200
|
200x200
|
260x260
|
|
AD-R-300
|
300x300
|
360x360
|
|
AD-R-400
|
400x400
|
460x460
|
|
AD-R-450
|
450x450
|
510x510
|
|
AD-R-600
|
600x600
|
660x660
|
