6*4 Road Construction Chip Sealer Crushed Stone Seal Synchronous Chip Spreader Truck

6*4 Road Construction Chip Sealer Crushed Stone Seal Synchronous Chip Spreader Truck

FOB Reference Price: Get Latest Price

≥1 Sets

US $68000

≥10 Sets

US $59000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 3.5T/min

Power:: 70kw/2400rpm

Place of Origin:: Hubei, China

Brand Name:: CLW

Dimension(L*W*H):: 10250*2500*3650mm

Product name:: HOWO 6*4 chip sealer truck

Vehicle chassis:: DONGFENG SINO-TRUK JAC ISUZU FOTON

Engine power:: 70kw/2400rpm

Spreader width:: 200-4200mm

Stone particle size:: 3-25mm

Asphalt tank capacity:: 8m3

Hopper capacity:: 14m3

Heating System:: Italian burner Riello

Control System:: SIEMENS

Spray medium:: Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt

Quick Details

Max. Paving Thickness:: 3-15mm

Weight:: 25000 kg

Engine Brand:: HONDA

Production Capacity:: 3.5T/min

Power:: 70kw/2400rpm

Place of Origin:: Hubei, China

Brand Name:: CLW

Dimension(L*W*H):: 10250*2500*3650mm

Product name:: HOWO 6*4 chip sealer truck

Vehicle chassis:: DONGFENG SINO-TRUK JAC ISUZU FOTON

Engine power:: 70kw/2400rpm

Spreader width:: 200-4200mm

Stone particle size:: 3-25mm

Asphalt tank capacity:: 8m3

Hopper capacity:: 14m3

Heating System:: Italian burner Riello

Control System:: SIEMENS

Spray medium:: Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt

6*4 Road Construction Chip Sealer Crushed Stone Seal Synchronous Chip Spreader Truck

Product Description

Gravel and asphalt/ road chip sealer Description

Bitumen Gravel Chip Sealer Truck is to synchronize the intelligent asphalt sprayer and the screw chip spiral spreader, so that the surface contact between the asphalt binder and the stone chip can be achieved in the quickest time. The special construction equipment for maximum adhesion is used for the gravel seal process on the highway surface, bridge deck waterproofing, and under seal layer.

Bitumen Gravel Chip Sealer Vehicle features

1. The equipment adopts electrical control and has a high degree of automation; the setting of radar speed feedback device, can precisely control the amount of asphalt sprayed and fiber cutting;

2. Stone chip spraying is controlled by the electric push rod, which is stable and reliable. The gravity of the chip is naturally dispersed and evenly distributed;

3. A good anti-corrosion and durable insulation layer ensures insulation performance index ≤ 22°C/8h;

4. It can be used to spread base asphalt, modified asphalt, emulsified asphalt and other media, with a wide range of construction;

5. One nozzle one control can realize one-button start, can realize single control and any combination spraying.

Get the latest quotation,pls contact Ms.Marilyn, WhatsApp and WeChat online: 0086-15907145633

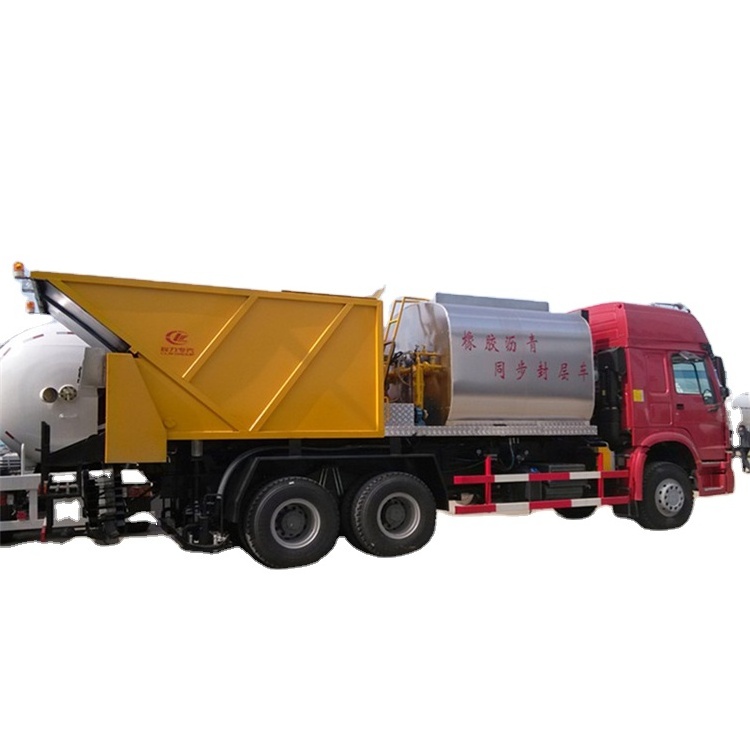

Photos of 6*4 Road Construction Chip Sealer Crushed Stone Seal Synchronous Chip Spreader Truck

Parameters of 6*4 Road Construction Chip Sealer Crushed Stone Seal Synchronous Chip Spreader Truck

Asphalt Synchronous Chip Sealer,Distribute Bitumen And Aggregate,Chipping Machine
Overall	Item	Specification
	Vehicle model	CLW5250FXY
	GVW (kg)	Appro×25000
	Mass in working order (kg)	Appro×17370
Chassis	Overall dimensions (mm)	10250x2500x3650
	Fact loading capacity (L)	4000+10000
	Max. Speed (km/h)	90
	Chassis Model	ZZ1257M4641W1
	Cab	Standard cabin with Left hand drive
	Color	Optional
	Allowable person in cab	2/3
	Wheel base (mm)	4600+1350
	Front/Rear track base (mm)	2022/1830/1830
	Front/Rear overhang (mm)	1500/2545
	Number of axles	3
	F/R Axle	7000/13000
	Traction system	6x4
	Operation control system	Power steering
	Braking system	Full air
	Electric system	24V
	Transmission	HW13710 10 speeds + 2 rear
	Spring plate	9/12
	Tire specification	12.00-20
	Tire quantity	10+1
Engine	Engine manufacture	SINOTRUK WEICHAI POWER CO., LTD
	Engine model	WD615.87
	Emission standard	Euro 2
	Exhaust/output	9726/213
	Horse power	290
Upload Part	Asphalt tank Total Volume(L)	6000
	Chippings bucket Total Volume(L)	10000
	Insulating layer thickness (mm)	80
	Hydraulic pump	50-20-16
	Proportional valve	Taiwan EFBG-03-160-HF
	Asphalt pump	QGB680
	Hydraulic motor for asphalt pump	05-110-BD31
	Heating System	Italian burner Riello (G20)
	Heat-transfer oil pump	40-25-160
	Control System	SIEMENS CLW-32-01
	Generator	5.5KW gasoline engine generator
	Number of nozzle	32
	Spray medium	Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt
	Spray width(m)	4
	Spray amount(L/m2)	0.3-3.5
	Working Condition	1.Altitude: 0-4500m
		2.Temperature: -350C~+450C
		3.Relative humidity: 80%
		4.Wind force: ≤8 degree

Details of 6*4 Road Construction Chip Sealer Crushed Stone Seal Synchronous Chip Spreader Truck

Bitumen Gravel Chip Sealer Vehicle application

1. It is used for the preventative maintenance surface course of all kinds of highways, first class roads, etc.

2. Asphalt surface course new repair low grade highway and rural road asphalt.

3. Waterproof surface of bridge deck and riverside highway.

4. Lower sealing layer of new asphalt pavement, it called stress absorbing layer.

5. Old cement pavement change to waterproof surface course of asphalt pavement.

6. Though multi-layer paving different grain sizes stone materials, repair below ten centimeters rut, sink, etc.
