Quick Details
-
Brand Name:
-
Wanrooetech
-
Voltage:
-
380V, 380v/50HZ(as Customers' Request )
-
Dimension(L*W*H):
-
According to model
-
Power (kW):
-
7.5
-
Weight (T):
-
0.6
-
Product name:
-
Installs Easily Cardboard Shredder Mini Metal Shredder Machine
-
Application:
-
Plastic, Dtv, Metal, Wood etc
-
Certification:
-
CE Certificated
-
Type:
-
Two Shaft
-
Usage:
-
Waste Plastic Cusher
-
Blades material:
-
SKD-11
-
Capacity:
-
100-1000kg/h
-
Power:
-
7.5kw
Quick Details
-
Max.Production Capacity (kg/h):
-
3000
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
100 - 3000 kg/h
-
Brand Name:
-
Wanrooetech
-
Voltage:
-
380V, 380v/50HZ(as Customers' Request )
-
Dimension(L*W*H):
-
According to model
-
Power (kW):
-
7.5
-
Weight (T):
-
0.6
-
Product name:
-
Installs Easily Cardboard Shredder Mini Metal Shredder Machine
-
Application:
-
Plastic, Dtv, Metal, Wood etc
-
Certification:
-
CE Certificated
-
Type:
-
Two Shaft
-
Usage:
-
Waste Plastic Cusher
-
Blades material:
-
SKD-11
-
Capacity:
-
100-1000kg/h
-
Power:
-
7.5kw

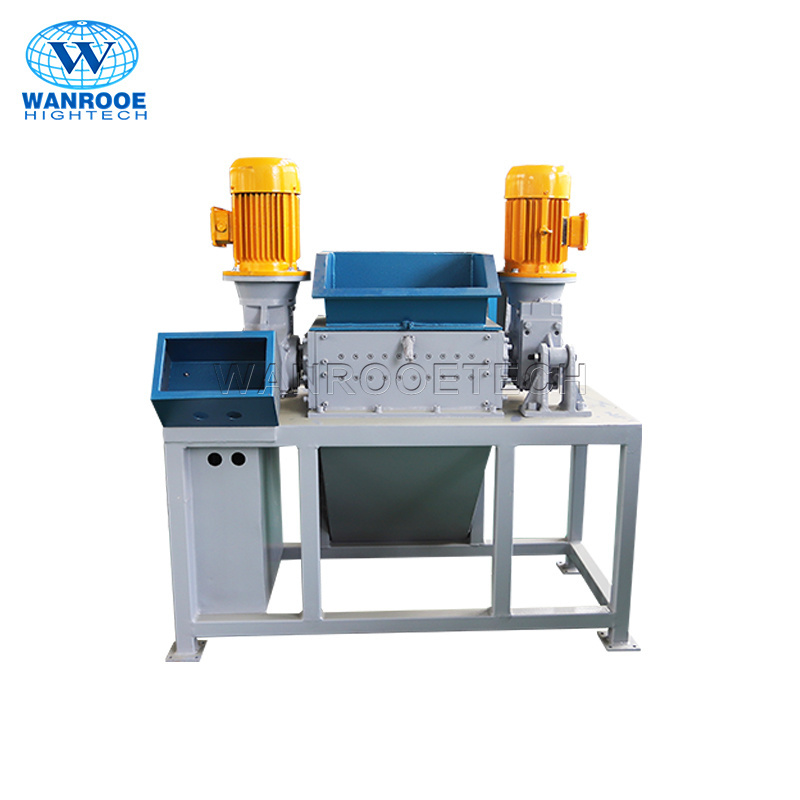

Installs Easily Aluminum Waste Mini Small Metal Shredder Machine
Application Areas:
The shredder machine can easily pre-crush:
1.plastic sheets;
2.electronic waste;
3.scrap (components, subassemblies; consumables);
4.metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);
5.aluminum cans;
6.wood(wooden pallets or fruit boxes);
7.plastic(plastic bottles or canisters);
8.waste tire, rubber;
9.waste household appliances;
10.paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material);
11.textiles (rags, garments, carpet);
12.animal bones and organic waste.
Description:
The double shaft plastic shredder machine is especially suitable for the crushing of those very-large and ultra-thick objects. (such as tyres, supporting boards, packing barrels, which are usually difficult to break).
Features:
1) The shredder have the characteristics of strong crushing ability, low noise, environmental- friendly.
2) The motor connected with the shaft directly, it can avoid belt slipping and avoid the easy wear part broken.
3) Compact structure. The motor is directly connected to the shaft roller, which can avoid slipping and spare parts are broken.
4) The spare parts are made of high manganese steel which is of high resistance.
Working Principle
The materials are fed into through feed inlet. With a high speed of rotation, the blade knives could peel and cut the materials. And then the materials are sent out through high-speed steam-flow produced by fan blade in the knife plate
.
Details:
| Model | Shredding Motor Power(kw) | Shredding Chamber size(mm) |
| PNSS-300 | 7.5 | 510*300 |
| PNSS-400 | 7.5 | 510*400 |
| PNSS-600 | 7.5+7.5 | 510*600 |
| PNSS-800 | 18.5+18.5 | 600*800 |
| PNSS-1000 | 22+22 | 800*1000 |
| PNSS-1200 | 30+30 | 1000*1200 |
| PNSS-1400 | 55+55 | 1400*1200 |
| PNSS-1600 | 55+55 | 1600*1200 |
| PNSS-1800 | 75+75 | 1800*1400 |
| PNSS-2000 | 90+90 | 2000*1400 |
Customer Feedback:
1. One year guarantee for whole machine.
2.24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
