Quick Details
-
Brand Name:
-
HOTON
-
Dimension(L*W*H):
-
1380*800*2120cm
-
Weight (T):
-
2.4 T
-
Model Number:
-
YQ32-63A
-
Motor Power (kw):
-
3 kw
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
Power(W):
-
Manual
-
Certification:
-
CE ISO
-
Product name:
-

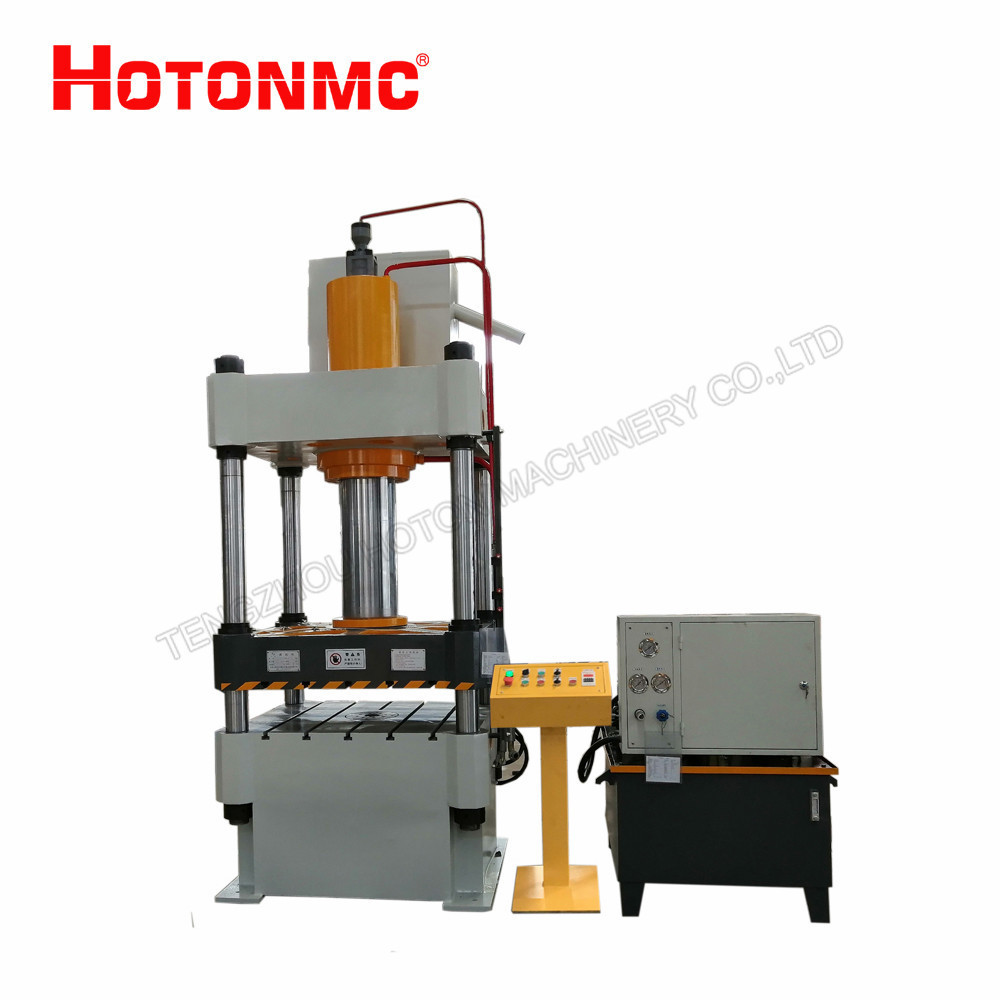

Gantry mobile hydraulic press machine HP-200
-
Model:
-
YQ32-63A
-
Keyword:
-
pressYQ32-100B
-
Nominal Force (kN):
-
1000 kN
Quick Details
-
Machine Type:
-
Hydraulic Press
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOTON
-
Dimension(L*W*H):
-
1380*800*2120cm
-
Weight (T):
-
2.4 T
-
Model Number:
-
YQ32-63A
-
Motor Power (kw):
-
3 kw
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
Power(W):
-
Manual
-
Certification:
-
CE ISO
-
Product name:
-
Gantry mobile hydraulic press machine HP-200
-
Model:
-
YQ32-63A
-
Keyword:
-
pressYQ32-100B
-
Nominal Force (kN):
-
1000 kN
Performance characteristics:
Type with thrree-beam and for-column,cartridge valves inserted in the manifold package for hydraulic system and stand-alone electrical system,in wide variety of plastic material applications such as extruding,bending,folding and drawing etc,also suitable for pressing various plastic and powder wares,two control technologies of preset preesure or preset stroke setting up hold-pressure or delay process,cost-effective for general-purposes.
Buffer facility should be equipped for blanking and punching to eliminate or alleviate vibration and noise caused by instant impact. Loa ded with movable bolster,quick die change and feed in and out etc.for customer’s desire.
|
Model
|
Unit
|
YQ32-63A
|
YQ32-63B
|
YQ32-100A
|
YQ32-100B
|
YQ32-160
|
|
Nominal force
|
KN
|
630
|
630
|
1000
|
1000
|
1600
|
|
System pressure
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
|
Slider MAX.opening height
|
mm
|
500
|
700
|
800
|
900
|
900
|
|
Slide effective stroke
|
mm
|
360
|
400
|
500
|
600
|
600
|
|
Effective worktable size(L.R×F.B)
|
mm
|
410×450
|
610×500
|
630×550
|
750×700
|
600×600
|
|
Nominal force of upper ejection cylinder
|
KN
|
100
|
100
|
200
|
200
|
400
|
|
Stroke of upper ejection cylinder
|
mm
|
160
|
160
|
200
|
200
|
200
|
|
Slider descending speed
|
mm/s
|
100
|
100
|
100
|
100
|
100
|
|
Slider pressing speed
|
mm/s
|
5-10
|
5-10
|
5-10
|
5-15
|
5-10
|
|
Slider return speed
|
mm/s
|
90
|
90
|
90
|
90
|
90
|
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
