Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QYM
-
Model Number:
-
QYM-Hexagonal Gabion
-
Wire Gauge:
-
1.0-5.0mm
-
Materials:
-
Galvanized wire;PVC coated wire
-
Products type:
-
Hexagonal Gabion
-
Color::
-
Silver.gray,green,etc
-
Lacing / tie wire:
-
2.2mm
-
Selvedge wire diameter::
-
3.0mm--4.0mm
-
Certification::
-
ISO9001:2008
-
Mesh size:
-
3/8-2"
-
Wire diameters::
-
1.5mm~4mm
-
used for:
-
protect and support seawall, slope, road, bridge, reservoirs
-
Weaving pattern:
-
straight twist, reverse twist, double-direction twist,
Quick Details
-
Material:
-
Plastic Coated Iron Wire
-
Type:
-
Welded Mesh
-
Application:
-
Gabions
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QYM
-
Model Number:
-
QYM-Hexagonal Gabion
-
Wire Gauge:
-
1.0-5.0mm
-
Materials:
-
Galvanized wire;PVC coated wire
-
Products type:
-
Hexagonal Gabion
-
Color::
-
Silver.gray,green,etc
-
Lacing / tie wire:
-
2.2mm
-
Selvedge wire diameter::
-
3.0mm--4.0mm
-
Certification::
-
ISO9001:2008
-
Mesh size:
-
3/8-2"
-
Wire diameters::
-
1.5mm~4mm
-
used for:
-
protect and support seawall, slope, road, bridge, reservoirs
-
Weaving pattern:
-
straight twist, reverse twist, double-direction twist,

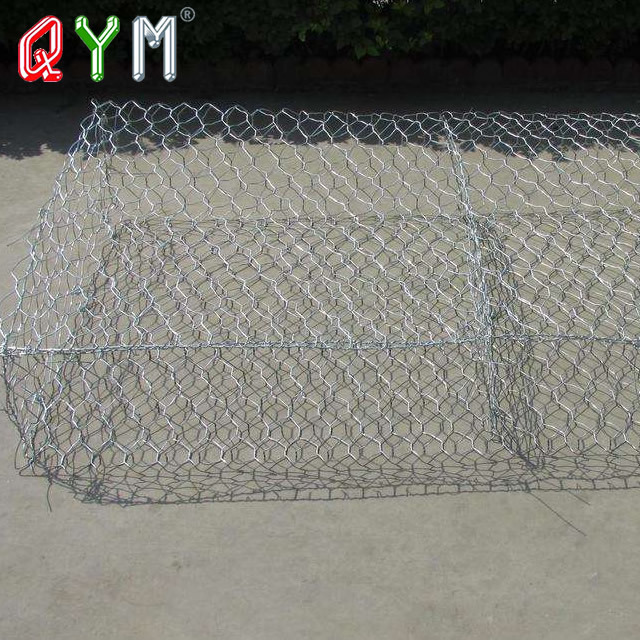

QYM-Hexagonal Gabion
We guarantee high quality gabion mesh.
We use heavy galvanized wire or galfan wire and PVC coated as materil and 25 sets advanced weaving machine to make sure all our products are flat surface, refined aperture, strong structure and corrosion-resistance to protect the dam and rivebank.
| materials | hot dipped galvanized wire and PVC coated galvanized wire , Galfan coated wire |
| mesh wire | 2.0mm,2.2mm,2.7mm,3.0mm |
| selvage wire | 2.4mm,2.7mm,3.4mm,3.9mm |
| mesh size | 6*8cm, 8*10cm, 10*12cm, 12*15cm |
| lacing wire | 2.2mm, 5% of gabion weight |
| zinc coating | 225-275g/m2 according to EN 10224-2 |
| size | 2X1X0.5m , 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m |
Gabion Box Sizes :
| Nominal Dimensions |
Number of Cells |
Capacity (m³) |
||
|
Length (m) |
Width (m) |
Height (m) |
||
| 1 | 1 | 1 | 1 | 1 |
| 2 | 1 | 0.5 | 2 | 1 |
| 2 | 1 | 1 | 2 | 2 |
| 3 | 1 | 1 | 3 | 3 |
| 4 | 1 | 1 | 4 | 4 |
| 4 | 2 | 0.3 | 4 | 2.4 |
| 6 | 2 | 0.3 | 6 | 3.6 |
|
Mesh size: 60*80mm , 70*90mm, 80*100mm, 100X120mm,120X150mm
Mesh wire: 2.0mm-4.0mm Selvage wire: Thicker 0.5-1.0mm than mesh wire Lacing wire: 2.2mm ,5% of gabion weight |
||||
Quality Control
1. Raw Material Inspection -- wire diameter Zinc Coating ≥ 260 g
2. Raw Material Inspection -- PVC coating We use best wire material
3. Weaving Process quality control -- mesh opening -- 80*100
4. Weaving Process quality control -- Gabion Size -- Zero Defect
5. Edgefolding control
6. Inspecting Edge Wire
Gabion Applications
1. Control and guide of water or flood
2. Flood bank or guiding bank
3. Preventing of rock breaking
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area
|
|
