Ring barcode Scanner Portable finger wearable Mini barcode reader Wireless 2.4G Bluetooth communication

Ring barcode Scanner Portable finger wearable Mini barcode reader Wireless 2.4G Bluetooth communication

FOB Reference Price: Get Latest Price

≥1 Pieces

US $57

≥100 Pieces

US $55

≥500 Pieces

US $49

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Optical Resolution:: 1280x800 pixels

Scan Speed:: 60 times per second

Brand Name:: Winfreid

Place of Origin:: Guangdong, China

Product name:: Finger wearing barcode scanner

Color:: Black

Storage Space:: 15M

Interface:: USB-COM/PS/2

Scan Mode:: Auto Sense

Image Sensor:: CMOS

Weight:: 39g

Size:: 52.8 x 36 x 28.6 mm

Application:: Warehouse

Communication:: Blue Tooth+2.4GHz Wireless

Quick Details

Type:: Barcode Scanner

Scan Element Type:: CMOS

Max Paper Size:: A4

Optical Resolution:: 1280x800 pixels

Scan Speed:: 60 times per second

Brand Name:: Winfreid

Place of Origin:: Guangdong, China

Product name:: Finger wearing barcode scanner

Color:: Black

Storage Space:: 15M

Interface:: USB-COM/PS/2

Scan Mode:: Auto Sense

Image Sensor:: CMOS

Weight:: 39g

Size:: 52.8 x 36 x 28.6 mm

Application:: Warehouse

Communication:: Blue Tooth+2.4GHz Wireless

Mini 1D 2D QR code with storage scanner

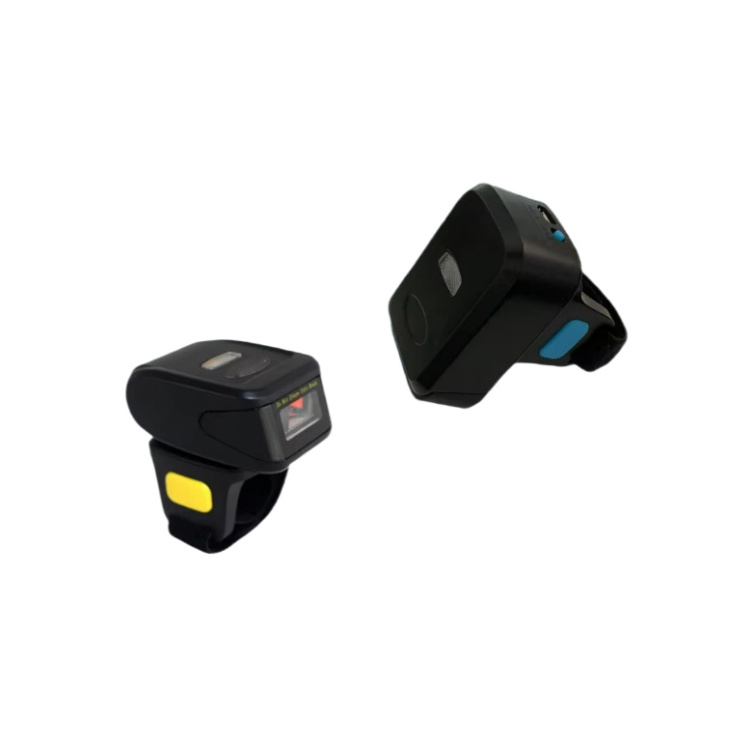

S673S WEARABLE BARCODE SCANNER

Support wireless Bluetooth communication, small size, easy to carry, single charge ultra-long working hours, wearing ring type, to bring the operator super comfortable working experience and working environm.

HIGH DENSITY SCANNING
SIMPLE CONTROL
PLUG AND PLAY
HIGH COMPATIBILITY INTERFACE
SUPPORT BLUETOOTH COMMUNICATION
SCAN CODE WITH ONE HAND

PRODUCT SPECIFICATIONS
Performance Parameter
Image (pixel)	1280x800 pixels
illuminant	(Aimer) red light-emitting diode; (Lighting) White light-emitting diodes
Roll/pitch/offset	360 °, ± 55 °, ± 55 °
FOV	52 ° (H) 38 ° (V)
Scanning rate	60 scans per second
resolution	≥ 4mil
Physical And Electrical Properties
Dimensions（mm）	52.8x36 x 28.6 mm
Weight	39g
Power	1000 MW
Work Current	200mA
Interface Support	HID-KBW /HID-POS/USB serial port /TTL232
Decoding ability
2D Codes	CodeblockA, CodeblockF, PDF417, MicroPDF417, GS1 composite code, QRCode, data matrix, MaxiCode, Aztec, HANXIN.
1D Codes	Codabar, Code39, code32 Pharmaceuticals (PARAF), Interleaved2of5, NEC2of5, Code93, Direct 2of5 Industry, Direct 2of5iata, Matrix2of5, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/ January 8, EAN/ January 13 Day, MSI, GS1DataBarOmnidirectional, GS1DataBar Limited, GS1DataBar, Expanded, ChinaPost (HongKong2of5), KoreaPost.

Enviromental Parameter
Impact specification	At a height of 1.0 meters, more than 50 falls to the concrete floor
humidness	5% to 95%
Operating temperature	-5 °C to 45 °C
Storage temperature	-20 ℃ to 60 ℃
Class of protection	IP41
Decode Ranges
Code 39 (5 million)	30-135 mm
ENA-13 (13 million)	35-220 mm
Qr Code (20 million)	45-460 mm
