Quick Details
-
Brand Name:
-
Dewo
-
Maximum Torque:
-
6nm
-
Operating Speed:
-
12000-24000rpm
-
Power:
-
9kw
-
Voltage:
-
380V/220V
-
Current::
-
18A/32A
-
Frequency:
-
400HZ-800HZ
-
Diameter:
-
144*133
-
Collect:
-
ISO30/ BT30
-
Certification:
-
CE, ROHS,
-
Weight::
-
30kg
-
Cooling type:
-
air cooling
-
Lubrication:
-
Grease
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Applicable Industries:
-
CNC machine
-
Weight (KG):
-
32
-
Brand Name:
-
Dewo
-
Maximum Torque:
-
6nm
-
Operating Speed:
-
12000-24000rpm
-
Power:
-
9kw
-
Voltage:
-
380V/220V
-
Current::
-
18A/32A
-
Frequency:
-
400HZ-800HZ
-
Diameter:
-
144*133
-
Collect:
-
ISO30/ BT30
-
Certification:
-
CE, ROHS,
-
Weight::
-
30kg
-
Cooling type:
-
air cooling
-
Lubrication:
-
Grease

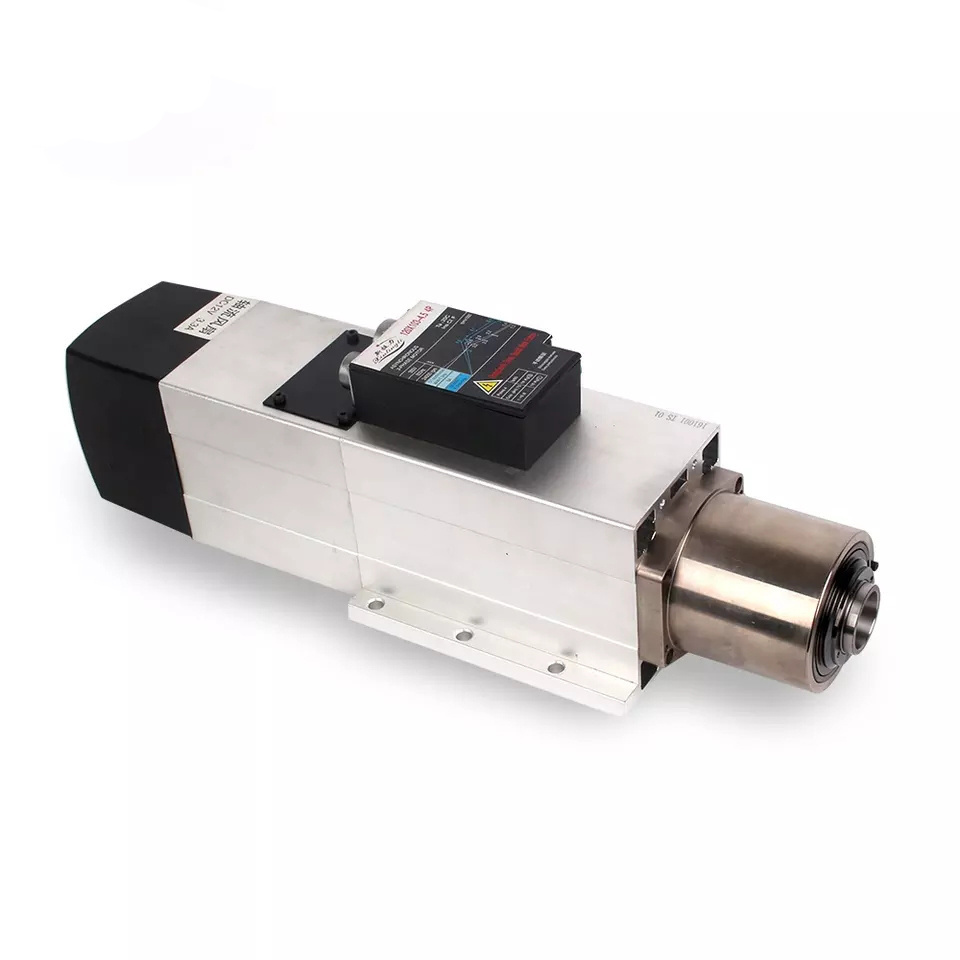

7.5KW ATC spindle motor BT30 ( GDZ143*133-7.5)
| Model:GDZ143*133-7.5 | Torque: 6.4Nm | Collet: ISO30/BT30 |
| Power: 7.5KW | Voltage:220V or 380V | Current:32A or 18A |
| Frequency:400HZ~800HZ | Speed: 12000~24000rpm | Cool: Air Cooling |
| Lub:Grease | Weight:30kg | |
| Warranty period: Bearings=half a year, other parts a year | ||
The datasheet of our water cooling spindle motor
| TYPE |
speed (rpm) |
motor | Collect | Product size |
Weight (kg) |
||||||
|
power (kw) |
voltage (V) |
current (A) |
frequency (HZ) |
diameter (mm) |
L1 | L2 | L3 | ||||
| GDZ48-300 | 60000 | 0.3 | 75 | 4.5 | 1000 | Φ48 | ER8 | 125 | 5 | 16.5 | 1.5 |
| GDZ62-1.2 | 24000 | 1.2 | 178 | 5 | 400 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ62-1.2 | 36000 | 1.2 | 220 | 4.5 | 600 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ62-1.2 | 60000 | 1.2 | 220 | 4.5 | 1000 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ65-800 | 24000 | 0.8 | 220 | 1.9 | 400 | Φ65 | ER11 | 161.5 | 5 | 28.5 | 2.6 |
| GDZ65-800A | 24000 | 0.8 | 220 | 1.9 | 400 | Φ65 | ER11 | 197 | 5 | 28.5 | 3 |
| GDZ65-1.5 | 24000 | 1.5 | 220 | 5.5 | 400 | Φ65 | ER11 | 208 | 4.5 | 28.5 | 3.6 |
| GDZ80-1.5C | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER11 | 181.5 | 12 | 27 | 4.4 |
| GDZ80-1.5E | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER11 | 208 | 12 | 30 | 4.4 |
| GDZ80-1.5,ER16 | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER16 | 210 | 18 | 32 | 5 |
| GDZ80-2.2B,ER20 | 24000 | 2.2 | 220 380 | 8 5 | 400 | Φ80 | ER20 | 210 | 40 | 20.5 | 5 |
| GDZ85-1.5 | 24000 | 1.5 | 380 | 5 | 400 | Φ85 | ER20 | 251 | 5.5 | 40.5 | 13 |
| GDZ85-2.2 | 24000 | 2.2 | 380 | 7.5 | 400 | Φ85 | ER20 | 251 | 5.5 | 40.5 | 13 |
| GDZ100-3 | 24000 | 3 | 220 380 | 10 5.8 | 400 | Φ100 | ER20 | 221 | 31.5 | 44 | 9 |
| GDZ100-3B | 24000 | 3 | 220 380 | 12 7 | 400 | Φ100 | ER20 | 246 | 31.5 | 44 | 9.6 |
| GDZ100-4 | 24000 | 4 | 220 380 | 13.8 8 | 400 | Φ100 | ER20 | 261 | 31.5 | 44 | 11.6 |
| GDZ105-3.0N | 24000 | 4 | 220 380 | 11.3 6.5 | 400 | Φ105 | ER20 | 235 | 30.5 | 40 | 13 |
| GDZ105-3.2S | 24000 | 3.2 | 380 | 6.5 | 400 | Φ105 | ER20 | 235 | 30.5 | 40 | 13 |
| GDZ125-4.5 | 24000 | 4.5 | 380 | 8 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 22 |
| GDZ125-5.5 | 24000 | 5.5 | 380 | 9 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 22 |
| GDZ125-4.5S | 24000 | 4.5 | 380 | 8 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 28 |
| GDZ125-5.5S | 24000 | 5.5 | 380 | 9 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 28 |
