Quick Details
-
Model Number:
-
FZN15
-
Max. Current:
-
630A
-
Product:
-
H.V. Vacuum Load Break Switch
-
Rated Voltage:
-
12KV
-
Rated current:
-
630A
-
Rated frequency:
-
50Hz
-
Type:
-
Indoor
-
Customized:
-
Accept special order
-
Product name:
-
Load Break Switch
-
Sample:
-
Accept
Quick Details
-
Max. Voltage:
-
12KV
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIKAI/OEM
-
Model Number:
-
FZN15
-
Max. Current:
-
630A
-
Product:
-
H.V. Vacuum Load Break Switch
-
Rated Voltage:
-
12KV
-
Rated current:
-
630A
-
Rated frequency:
-
50Hz
-
Type:
-
Indoor
-
Customized:
-
Accept special order
-
Product name:
-
Load Break Switch
-
Sample:
-
Accept

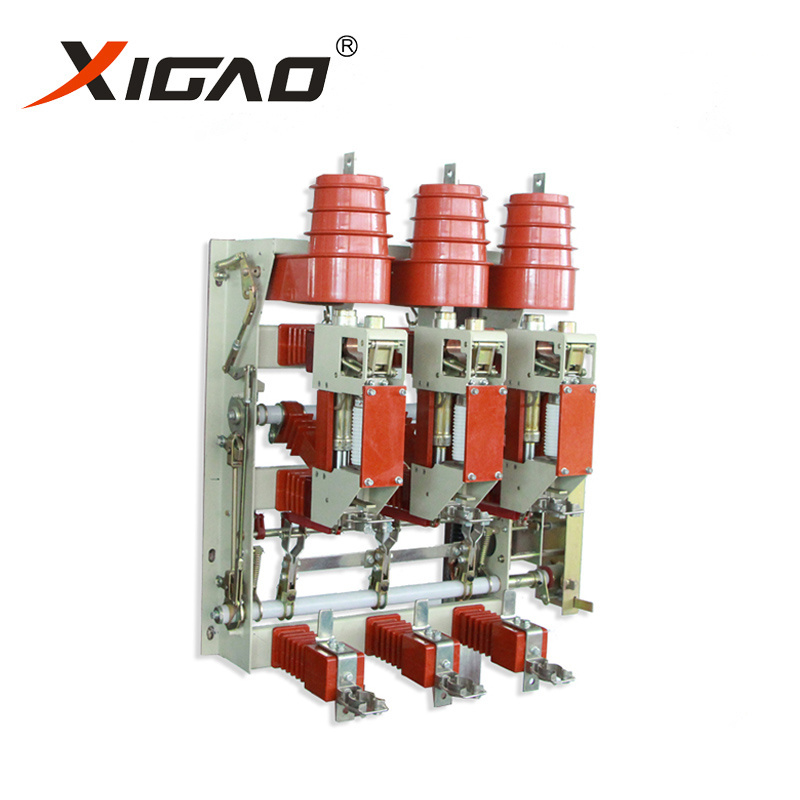

FZN25-12D/T630-20 Indoor AC high voltage load-breaking switch is three-phase AC 50Hz, rated voltage 12kV indoor installation, which is suitable for using in industry and mining situation and so on enterprise substation and transformer substtion for protection and controlling the electrical facility, uses in Off and ON load current, closed loop current, idling transformer and cable charging current. It has manual and electrical motor operating mechanism that isadvantageous to realize three remote controls requirement of power system.
FZRN25-12D/TX-31.5 Indoor AC high Voltage Vacuum Load Switch-The fuse combination electric appliance is three-phase AC 50Hz, rated voltage 12kV indoor installment, which is suitable for load control and short-circuit protection using in industry and mining situation and so on enterprise substation and transformer substation. It is equiped with the earthing switch that may withstand short-circuit current The operating mechanism can be possible manual and electrically operated that is advantageous to realize three remote controls requirement of electrical power system.
FZN25-12D, FZRN25-12D load switch and combination electric appliance are suitable for load control and to short-circuit the protection in three-phase ring net or the terminal power supply urban district power distribution station and the industry consumer. Because the combined electric appliance has more reliable, econnomical protection function than circuit breaker electrical appliance equipment such as the transformer, especially for the ring net, double rdiation power supply unit and box type transformer substation.
Load switch main technical paameter
| NO | Description | Unit | Data | ||
| FZN25-12D/T630-20 | FZRN25-12D/T125-31.5 | ||||
| 1 | Rated voltage | kV | 12 | ||
| 2 | Rated frequecny | Hz | 50 | ||
| 3 | Rated current | A | 630 | 125 | |
| 4 |
Rated
insulation level |
1 min power frequency with stand voltage insulation level |
kV | Explosion chamber fracture 30; | |
| To earth,phase to phase 42; Isolation fracture 48; | |||||
|
Lightning impulse withstand voltage (peak value) |
kV | To earth,phase to phase 75; Isolation fracture 85; | |||
| 5 | Rated dynamic current (peak value) | kA | 50 | ||
| 6 | 4 seconds heat-stable current | kA | 20 | ||
| 7 | The rating active the load breaking current | A | 630 | ||
| 8 | Rated closed loop breaking currnet | A | 630 | ||
| 9 | Rated cable charge breaking current | A | 10 | ||
| 10 | Rated breaking idling transformer capacity | kVA | 1600 | ||
| 11 | Rated shift electric current | A | 2000 | ||
| 12 | Fuse model | SDLAJ-12 SFLAJ-12 | |||
| 13 | Ram output energy | J | 2-5(middle grade) | ||
| 14 | Rated short-circuit making electric current | kA | 50 | ||
| 15 | Earthing switch rated peak withstand current | kA | 50 | ||
| 16 | Earthing switch 2s thermal stable current | kA | 20 | ||
| 17 | Auxiliary loop rated voltage | V | 220 110 | ||
| 18 | Mechanical life | Time | 10000 | ||
Mechanical characteristics parameter
| No. | Description | Unit | Data | ||
| FZN25-12D/T630-20 | FZRN25-12D/T125-31.5 | ||||
| 1 | Between charged body and to earthing air distance | mm | >125 | ||
| 2 | Depth of conduct tube inserting fixed contact seat | > 18 | |||
| 3 |
Distance between moving and fixed contact of vacuum explosion chamber |
6+10 | |||
| 4 |
Vacuum explosion chamber contact pressure spring compression amount |
2 +10 | |||
| 5 | Vacuum explosion chamber average switchon speed | 0.6 | |||
| 6 | Vacuum explosion chamber average switchoff speed | m/s | 0.9 | ||
| 7 | closing bounce time | m/s | ≤2 | ||
| 8 | Three-phase closing/opening synchroneity | ≤3 | |||
| 9 | Mainreturn toute resistance | υΩ | ≤ 150 | ≤300 | |
| 10 | Manual operation maximum moment | Nm | ≤160 | ||
| 11 | Fuse trigger opening time | ms |
30-40
40-50 |
||
| 12 | Release trigger opening time | ||||
| No. | Rated voltage(V) |
Rated
current(A) |
Rated power(W) | Normal work voltage scope |
| 66ZY-CJ01B | DC220 | 0.7 | 70 |
85%-110%
Rated voltage |
| 66ZY-CJ02B | DC110 | 1.5 |
Click The Picture To See More Product Details
