Quick Details
-
Brand Name:
-
WINTRUSTEK
-
Color:
-
Gray
-
Density:
-
3.10/cm3
-
Compressive Strength:
-
2500 MPa
-
Flexural Strength:
-
380 MPa
-
Max Working Temperature:
-
1400°C
Quick Details
-
Material:
-
Silicon Carbide
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
customized
-
Brand Name:
-
WINTRUSTEK
-
Color:
-
Gray
-
Density:
-
3.10/cm3
-
Compressive Strength:
-
2500 MPa
-
Flexural Strength:
-
380 MPa
-
Max Working Temperature:
-
1400°C
| - Product Name: |

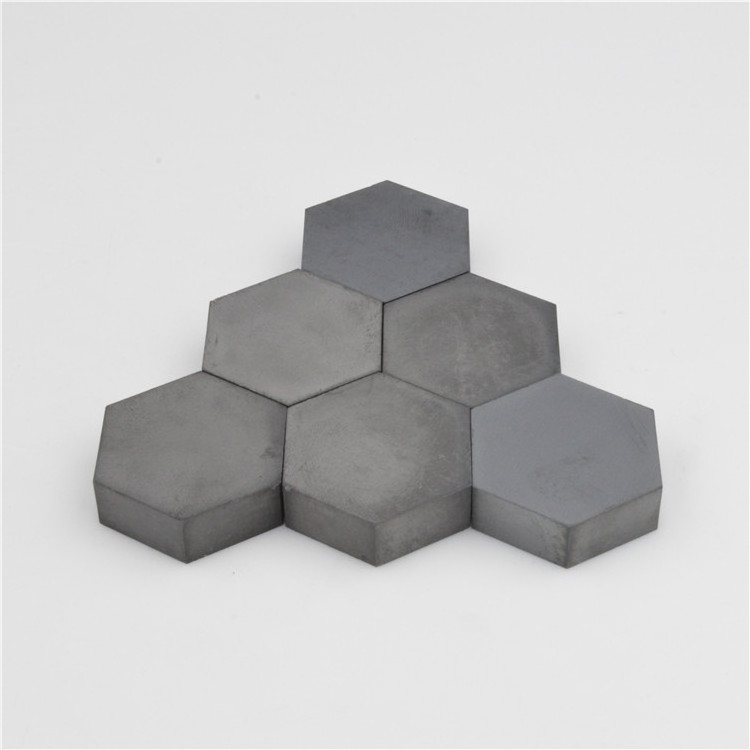

Silicon Carbide Ballistic Ceramic Panel Bulletproof Plate |
| - Material: |
SiC / Silicon Carbide |
| - Typical Characteristics: |
1. High Hardness, Out Standing Wear Resistance 2. High Strength Over A Wide Temperature Range 3. Excellent Thermal Shock Resistance 4. Excellent Oxidation Resistance 5. Very Low Friction Coefficient 6. Low Thermal Expansion and High Thermal Conductivity |
| - Typical Applications: |
1. Mechanical Seal 2. Heat Exchanger 3. Armour Plate 4. Ball Vlave Parts 5. Pump Components 6. Semiconductor 7. Metallurgical Engineering 8. Fixed and Moving Turbine Components |
| Properties / Material | SSiC | SiSiC |
| Sintering Method | Pressureless Sintering | Reaction Sintering |
| Density (g/cm 3 ) | 3.10 | 3.05 |
| Purity (%) | >98 | >90 |
| Shore's Hardness | >115 | >110 |
| Modulus Of Elasticity (@25°C, GPa) | >410 | >400 |
| Compressive Strength (MPa) | 2500 | 2200 |
| Flexural Strength (MPa) | 380 | 350 |
| Thermal Expansion Coefficient (10/ °C ) | 4.2 | 4 |
| Max Working Temperature ( °C) | 1400 | 1300 |
I n your inquiry, please provide as detailed imformation as you can for our evaluation.
1. Material :
If you are not sure what exact material you need, please tell us your requests on material performance and your specific application, according to which we will offer you the most suitable material.
2. Drawing :
Please make sure the drawing is clear with all of your technical requests so that we can quote asap.
3. Quantity :
The last but not the least, don't forget to tell us the quantity you need to get our best offer.
