Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GYS
-
Model Number:
-
Z7
-
Features:
-
4K
-
Product Name:
-
Z7
-
HD:
-
4k @30fps
-
Support system:
-
Support Android Smart Tv
-
USB host:
-
2*USB2.0
-
BT:
-
5.0 Version
-
Warranty:
-
1 Year/ 12 Months
-
Language:
-
Support Muti-language
-
RAM:
-
1/2GB
-
ROM:
-
8GB/16GB
-
CPU:
-
Allwinner H313 Quad Core
Quick Details
-
Processor Core:
-
Quad Core
-
Support Resolution:
-
4k
-
WiFi:
-
802.11n 2.4G/5GHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GYS
-
Model Number:
-
Z7
-
Features:
-
4K
-
Product Name:
-
Z7
-
HD:
-
4k @30fps
-
Support system:
-
Support Android Smart Tv
-
USB host:
-
2*USB2.0
-
BT:
-
5.0 Version
-
Warranty:
-
1 Year/ 12 Months
-
Language:
-
Support Muti-language
-
RAM:
-
1/2GB
-
ROM:
-
8GB/16GB
-
CPU:
-
Allwinner H313 Quad Core

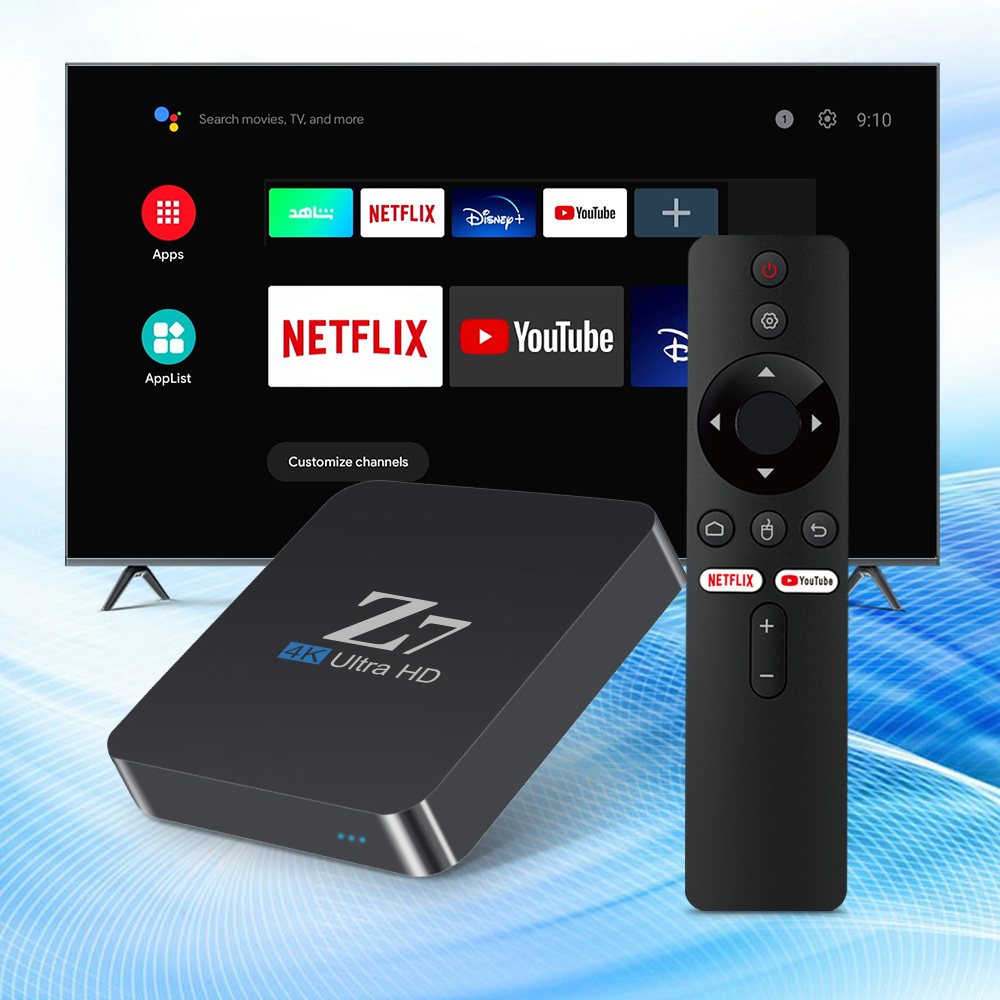

New Z7 ATV box with IPTV player Allwinner H313 Android 11.1 android tv box smart settop box 2.4G wireless remote
| Z7 H313 | |||
| Basic parameters | |||
| System | SoC: Allwinner H313 | ||
| CPU: Quad-core ARM Cor texA53 | |||
| GPU: Mali-G31 | |||
| DRAM: DDR3 2GB | |||
| FLASH: EMMC 8GB | |||
| OS: Android Q(11.0) | |||
| Network | RJ45 Interface 10M/100M adaptive | ||
| Build in Wi-Fi 2.4GHz+5GHz | |||
| I/O | |||
| Video Output | HD2.0(4K60), AV | ||
| Network | RJ45, Buildin Wi-Fi antenna | ||
| Peripheral Interface | USB2.0x2 | ||
| Power Interface | DC 5V 2A | ||
| Other Interface | IR receiver, LED indicato | ||
| Media | |||
| Video | Decoder: | ||
| • H.265 Main10 L5.1 decoder up to 4K 60fps | |||
| • VP9 Profile 2 decoder up to 4K 30fps | |||
| • AVS2 JiZhun 10bit decoder up to 4K 30fps | |||
| • H.264 BP/MP/HP L4.2 decoder up to 4K 30fps | |||
| • Multi-format 1080p 60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 | |||
| SP/ASP L5, AVS+/AVS JiZhun, WMV9/VC1, etc | |||
| Format: | |||
| MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. | |||
| Audio | Decoder: | ||
| MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, | |||
| Real Audio, AC-3/DD+/AC-4, MPEG-H | |||
| Format: | |||
| MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. | |||
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | ||
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | ||
| Features | |||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | ||
| Multi-screen interactive | Miracast, DLNA and Airplay | ||
| Local Media Playback | Video/Audio/Picture | ||
| TV APP | Google Play(TV version), Google Voice Assistant, YouTube(4K), Net flix(TV Version), | ||
| Disney+(TV Version up to 720P), HBO Max(TV Version) Android TV APP | |||
| External Storage | USB storage max to 2TB (FAT32/NTFS) | ||
| System Upgrading | Upgrading via USB disk or internet | ||
| Other parameters | |||
| Input Voltage | DC IN 5V/2A | ||
| Power Consumption | 8W Max | ||
| Operation Temperature | 0~40℃, Humidity<95% | ||
| Physical characteristics | Size: 79*79*17MM | ||
| Weight: | |||
| Material | |||
| Proposed Accessory | Power adapter, User manual, HD cable | ||
