Quick Details
-
Inside diameter(min):
-
130 mm
-
Foil roll inside diameter:
-
400 ~500 mm
-
Foil roll outside diameter:
-
1000 mm
-
Mandrel load(max):
-
2000 KG
-
Expanding force:
-
0~10000 N
-
Tension working force:
-
0~0.6 Mpa
-
Centering way(deviation Recertify):
-
Manual/ Auto
-
Mandrel rotation speed:
-
0~20 RPM
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Axial length:
-
180~800 mm
-
Outside diameter(max):
-
800 mm
-
Inside diameter(min):
-
130 mm
-
Foil roll inside diameter:
-
400 ~500 mm
-
Foil roll outside diameter:
-
1000 mm
-
Mandrel load(max):
-
2000 KG
-
Expanding force:
-
0~10000 N
-
Tension working force:
-
0~0.6 Mpa
-
Centering way(deviation Recertify):
-
Manual/ Auto
-
Mandrel rotation speed:
-
0~20 RPM

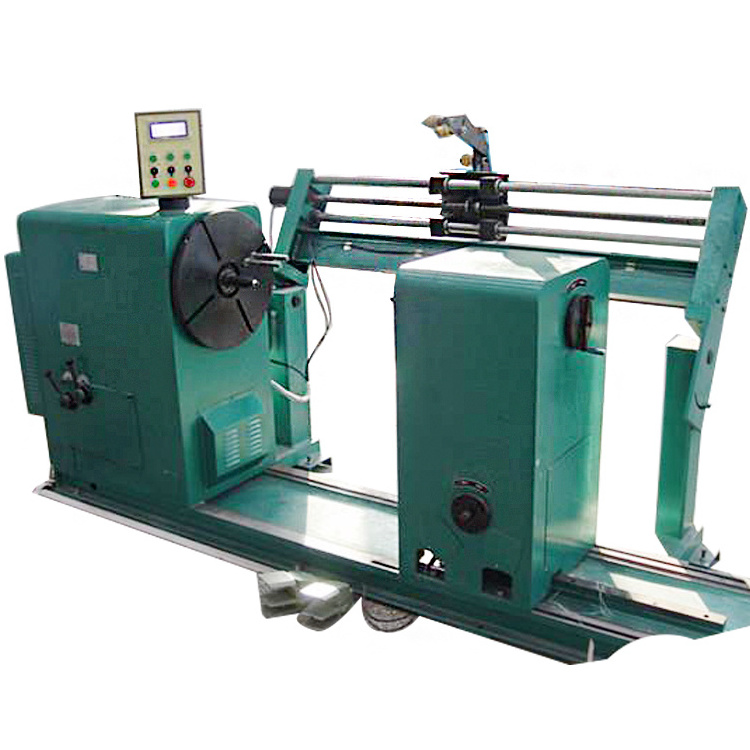

BR-II-800 Transformer coil Double layer Foil Winding Machine
1.General description
BR-800 foil winding machine used for transformer and electrical industry foil coils winding.
Foil coil based on different thickness of copper and aluminum foil, with wide strips insulation material as layer insulation, narrow strips for end insulation, completes the winding process, and finish lead welding and surface dressing at the same time. Each function of equipment provides enough support.
2.Main technical performance
|
S.N |
ITEM |
SPECIFICATION |
|
1 |
Coil range |
|
|
1.1 |
Axial length |
180~800 mm |
|
1.2 |
Axial length(with lead) |
200~950 mm |
|
1.3 |
Outside diameter (exclude wires) |
Φ700 mm |
|
1.4 |
Φ800 mm |
|
|
1.5 |
Inside diameter(min) |
Φ130 mm |
|
1.6 |
Coil type |
Round, rectangle |
|
2 |
Coil material |
|
|
2.1 |
Material of conductor |
CU(Copper) or Al(aluminum) |
|
2.2 |
Conductor Width |
180~800 mm |
|
2.3 |
Thickness |
Au 0.35~2 mm, Al 0.6~2 mm |
|
2.4 |
Foil roll inside diameter |
Φ400 ~Φ500 mm |
|
2.5 |
Foil roll outside diameter |
Φ1000 mm |
