Quick Details
-
Brand Name:
-
Hebeixukang
-
Model Number:
-
UQK
-
Material:
-
SS304, SS316L, PP,PTFE
-
Contact rate:
-
5A/250VAC
-
Contact Way:
-
SPDT,NO,NC
-
suitable temperature:
-
-50 ~ 250℃
-
Connection:
-
special size accepted
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hebeixukang
-
Model Number:
-
UQK
-
Material:
-
SS304, SS316L, PP,PTFE
-
Contact rate:
-
5A/250VAC
-
Contact Way:
-
SPDT,NO,NC
-
suitable temperature:
-
-50 ~ 250℃
-
Connection:
-
special size accepted
Products Description

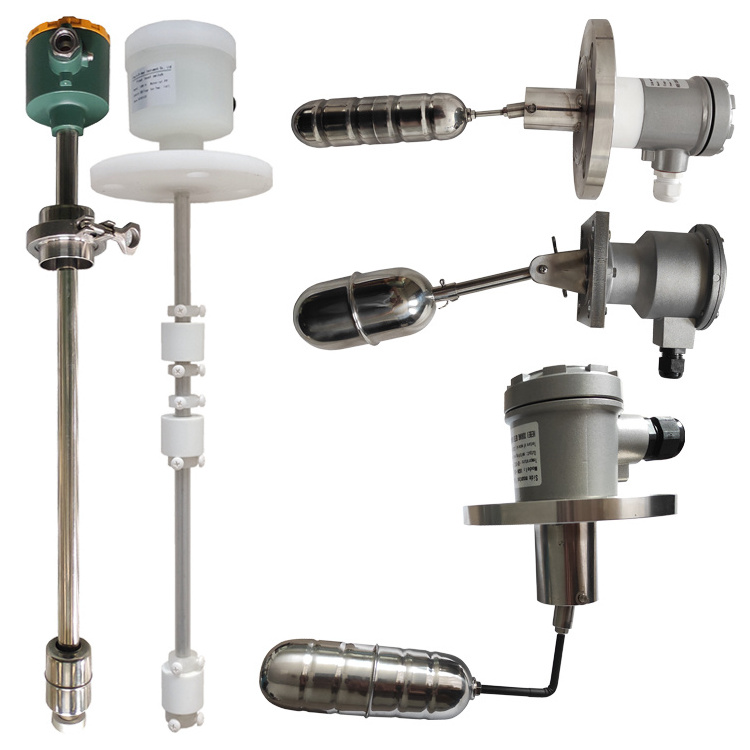

UQK Side mounted Stainless Steel Float Switch
UQK Float Level Controller is consist of float subassembly, stroke switch and housing.
A pair of plate shaping magnets are separately mounted on the top of the float and the stroke switch. When the floating ball moves up and down with the changing of the liquid level, the magnet at the top of the float also swings up and down. The magnetic force drives the magnet of the stroke switch subassembly through non-magnetic shell. So that the output contacts are connected or disconnected accordingly, and the signal device emits light or sound signals.
When the float rises and falls with the liquid level, the output contact will be connected or disconnected only when the liquid level is between the two magnetic plates.
And in the lifting process, there is no any signal generated.
The controller float is made of 304 stainless steel. We also can do Aluminum material or other stainless steel material according to users‘ needs.
Product Paramenters
|
Insertion rod length
|
200-8000mm
|
|
Material
|
Plastic material PP, PVDF (for corrosive fluid); SUS 304/316L material is used for high temperature or high pressure containers,side or top mounted
|
|
Fluid Density
|
>=0.45g/cm³
|
|
Switch point number
|
1, 2, 3 or 4nos switches
|
|
Contact Way
|
SPDT, normally open (NO), normally close (NC)
|
|
Contact rate
|
DC24V 2A, AC220V 2A
|
|
Action error
|
+/-3mm
|
|
Release error
|
8mm
|
|
Process temperature
|
＜180 C degree
|
|
Process pressure
|
＜2.5MPa or on order
|
|
Connection
|
Threaded or Flange GB, ANSI, JIS standard, DN50 PN16 or other
|
|
Thread UQK-10 side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～100℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
High temp. UQK-10T side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～200℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
Flanged UQK-20 side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～100℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
Flange High temp. UQK-20T
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～200℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
Flanged UQK-21 side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～200℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
Z type UQK-30 side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～100℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
High temp. UQK-41 side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～350℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
Flanged UQK-50 Top mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～100℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
Flange type UQK-60 side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～100℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
SUS304/SUS316L
|
|
|
Sp.Gr.
|
0.65
|
|
|
Connection
|
special size accepted
|
|
|
PP thread UQK-80 side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～100℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
PP
|
|
|
Sp.Gr.
|
0.7
|
|
|
Screw size
|
special order accepted
|
|
|
PP Flanged UQK-81 side mount
|
|
|
|
Contact rate
|
5A/250VAC
|
|
|
Operate temp
|
-30～100℃
|
|
|
Contact Way
|
SPDT
|
|
|
Wet Material
|
PP
|
|
|
Sp.Gr.
|
0.7
|
|
|
Connection
|
Flange
|
|
Installation schematic diagram
