With high quality aluminum case, better heat dissipation
Dust‐proof and splash‐proof
Compatible with sensor or sensorless motor
Cont. Current: 200A
BEC: 5V/1.5A
Lipo: 3‐12S
Case size: 180mm(L)x75mm(W)x18mm(H)
Sensored or Sensorless operation
Great start‐up torque with sensorless motors
Soft‐switching to reduce the losses in power electronic switches
Separation of low power electronics from the high power
electronics, make it more reliable.
- Product Details
- {{item.text}}
Quick Details
-
Max Speed:
-
<30km/h, 30-50Km/h, >50km/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Maytech
-
Model Number:
-
MTSPF6.6K SUPERFOC ESC
-
Power:
-
According to motor and battery
-
Model No.:
-
MTSPF6.6K SUPERFOC ESC
-
Brand:
-
Maytech
-
product name:
-
V6.0 speed controller esc with hall sensor for rc car
-
Application:
-
e-Skateboard/robotics/E-scooter
-
Function:
-
to adjust speeds
-
Certificate:
-
CE ROHS
-
Fit for:
-
sensored or sensorless motor
-
continuous current:
-
200 Amp
-
BEC:
-
5V/1.5A
-
LiPo:
-
3-12S
Quick Details
-
Voltage:
-
3-12S
-
Foldable:
-
NO
-
Range Per Charge:
-
No
-
Max Speed:
-
<30km/h, 30-50Km/h, >50km/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Maytech
-
Model Number:
-
MTSPF6.6K SUPERFOC ESC
-
Power:
-
According to motor and battery
-
Model No.:
-
MTSPF6.6K SUPERFOC ESC
-
Brand:
-
Maytech
-
product name:
-
V6.0 speed controller esc with hall sensor for rc car
-
Application:
-
e-Skateboard/robotics/E-scooter
-
Function:
-
to adjust speeds
-
Certificate:
-
CE ROHS
-
Fit for:
-
sensored or sensorless motor
-
continuous current:
-
200 Amp
-
BEC:
-
5V/1.5A
-
LiPo:
-
3-12S
Related Products
Maytech MINI VESC based ESC 30A 42V for fighting robots ROV underwater roboter humanoid robot
Maytech 75V 50A ESC Base On Vesc 75 for industrial robot autonomous mobile robot AGVs ROV RC Boat
Maytech 300A 80V antispark switch battery cut off switch with short circuit protection for electric hydrofoil surfboard efoil
Product Description

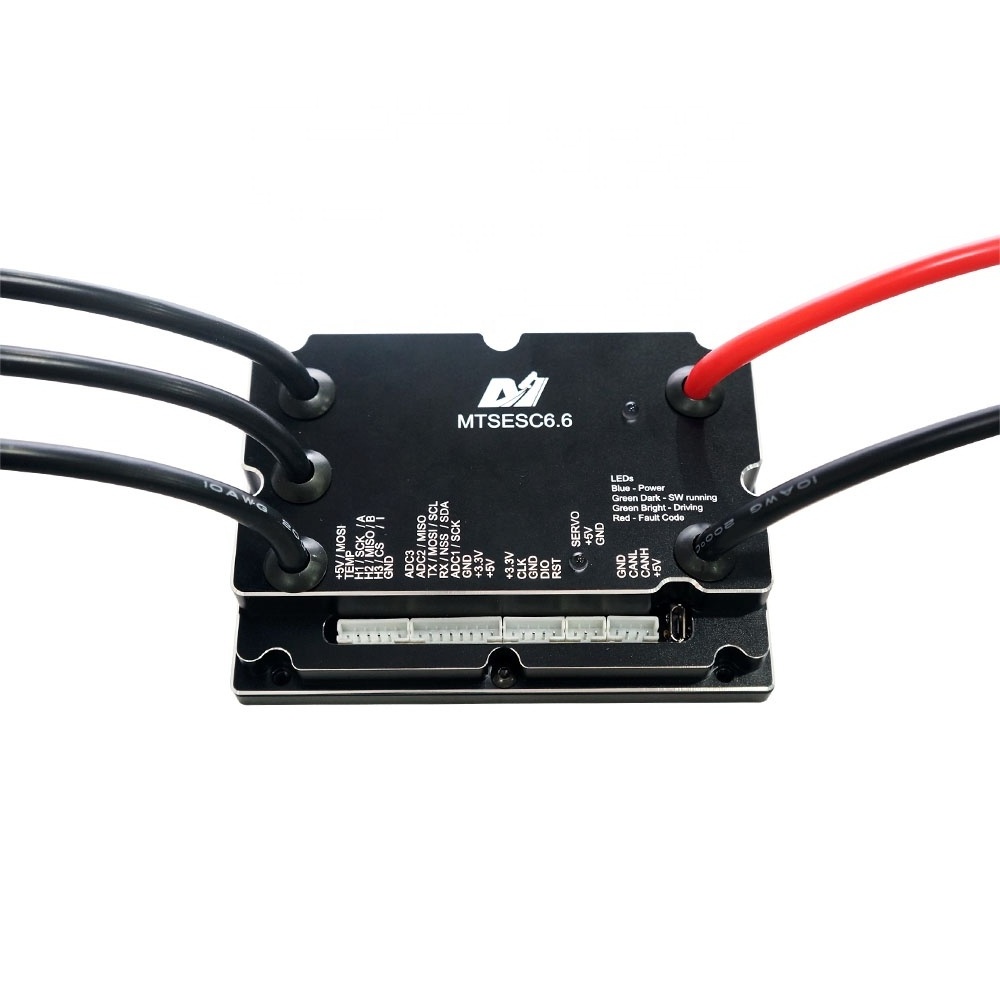

Maytech 200A 12S Dustproof ESC V6.0 FOC speed controller esc with hall sensor for rc car e-skateboard
|
Model no
|
MTSPF6.6K
SUPERFOC ESC
|
Cont. Current
|
200A
|
||
|
Voltage
|
3-12S (Max 50.4V)
|
VESC_TOOL
|
Compatible
|
||
|
BEC
|
5V
|
Case size
|
108x75x27mm
|
||
|
Hardware
|
based on V6
|
Firmware version
|
updatable, VESC_TOOL Compatible
|
||
|
Application
|
electric skateboard longboard, fighting robot, e-bike, electric surfboard, mountain board, etc.,
|
|
|
||
