Quick Details
-
Brand Name:
-
Ocean
-
Voltage:
-
220V-380V
-
Power:
-
0.5KW-65KW
-
Dimension(L*W*H):
-
2*1.2*2m-5*2*2m
-
Weight (KG):
-
500
-
Marketing Type:
-
Hot Product 2022
-
Evaporation Capacity(kg/h):
-
5-3000
-
Name:
-
freeze dryer machine
-
Keywords:
-
Fruit Vegetable Freeze Dryer
-
Function:
-
Food Vegetable Fruit Dehydrator
-
Advantage:
-
Easy Operation High Efficiency
-
Heating source:
-
Electricity Steam Oil Gas
-
MOQ:
-
1 Set
-
Dryig process:
-
Continuous Automatic Drying
-
Raw material:
-
304 Sainless Steel
-
Temperature range:
-
-30C~60°℃
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Capacity (kg/batch):
-
5-3000kg
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ocean
-
Voltage:
-
220V-380V
-
Power:
-
0.5KW-65KW
-
Dimension(L*W*H):
-
2*1.2*2m-5*2*2m
-
Weight (KG):
-
500
-
Marketing Type:
-
Hot Product 2022
-
Evaporation Capacity(kg/h):
-
5-3000
-
Name:
-
freeze dryer machine
-
Keywords:
-
Fruit Vegetable Freeze Dryer
-
Function:
-
Food Vegetable Fruit Dehydrator
-
Advantage:
-
Easy Operation High Efficiency
-
Heating source:
-
Electricity Steam Oil Gas
-
MOQ:
-
1 Set
-
Dryig process:
-
Continuous Automatic Drying
-
Raw material:
-
304 Sainless Steel
-
Temperature range:
-
-30C~60°℃
Product Description
Introduction

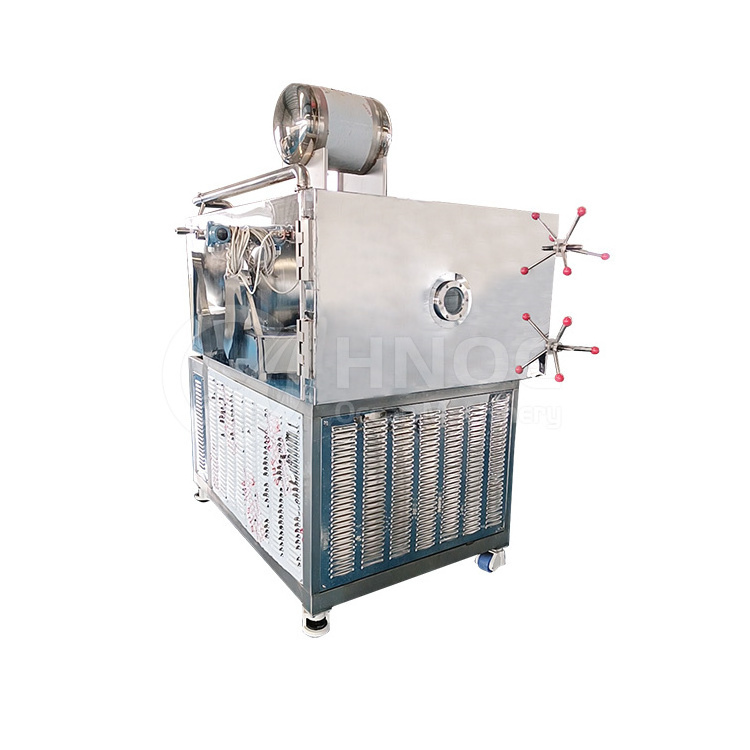

1. The Freeze-drying Machine Is An Equipment Manufactured By The Principle Of Vacuum Freeze-drying. The Structure Of The Equipment Is Reasonable, The Maintenance Is Convenient, The Cost Is Low, The Automatic Control And The Operation Are Convenient.
2. The Operation Is Simple, The Operator Only Needs To Press The Button To Turn On The Machine, And The Freeze-drying Is Completed At One Time, Without The Need For Supporting Facilities, And The Power Can Be Turned On To Work.
3. The Material Freeze-drying Speed Is Fast, The Energy Consumption Is Extremely Low, And The Drying Time Is Short, Generally 8 To 16 Hours (depending On The Nature Of The Material)
Application
Wide Range Of Applications: Food, Chemical Industry And Other Industries.
Structure
|
Model NO.
|
OCEAN-FDM0.5
|
OCEAN-FDM1.0
|
OCEAN-FDM2.0
|
OCEAN-FDM5
|
OCEAN-FDM10
|
OCEAN-FDM20
|
|||||
|
Shape and size(mm)
|
1800*1500*1800
|
|
2600*1600*2000
|
3500*1800*2300
|
4700*1800*2300
|
6700*1800*3000
|
|||||
|
Capacity(kg/batch)
|
5
|
10
|
20
|
50
|
100
|
100
|
|||||
|
Power(kw)
|
7
|
9.5
|
13
|
5
|
7
|
10
|
|||||
|
Tray’s area(m2)
|
0.5
|
1.07
|
2.14
|
0.5
|
1.07
|
2.14
|
|||||
|
Frozen storage and temperature(℃)
|
Below the chamber -30℃-60℃
|
|
|
|
|
|
|||||
|
Condenser temperature(℃)
|
-50℃-80℃
|
|
|
|
|
|
|||||
|
Vacuum degree
|
≥1pa
|
|
|
|
|
|
|||||
|
Heating way
|
Silicone oil,electric heating
|
|
|
|
|
|
|||||
