Quick Details
-
Dimension(L*W*H):
-
3800*1500*2200mm
-
Weight:
-
4500 KG
-
Name:
-

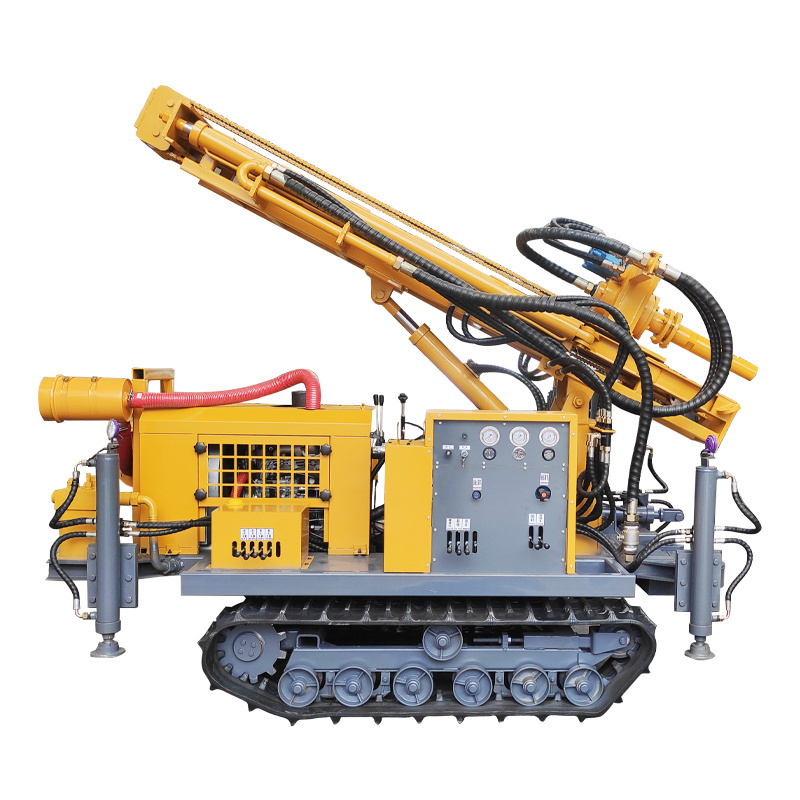

Drilling Rig Machine Prices
-
The hole diameter:
-
140-254mm/Customized
-
Using air pressure:
-
1.7-2.5mpa/Customized
-
Service:
-
OEM/ODM
-
Drill rod length:
-
1.5m/2m/3m/6m
-
Key words:
-
Underground Drilling Machine
-
Walking speed:
-
2.5km/h
-
Drilling depth:
-
180m/Customized
-
Equipped capacitor:
-
55kw/Customized
-
Rig lifting force(T):
-
12/15/16/20/22/28/35
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YuGong/YG
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3800*1500*2200mm
-
Weight:
-
4500 KG
-
Name:
-
Drilling Rig Machine Prices
-
The hole diameter:
-
140-254mm/Customized
-
Using air pressure:
-
1.7-2.5mpa/Customized
-
Service:
-
OEM/ODM
-
Drill rod length:
-
1.5m/2m/3m/6m
-
Key words:
-
Underground Drilling Machine
-
Walking speed:
-
2.5km/h
-
Drilling depth:
-
180m/Customized
-
Equipped capacitor:
-
55kw/Customized
-
Rig lifting force(T):
-
12/15/16/20/22/28/35
Specification
|
Model
|
YGF-180
|
YGF-200
|
YGF-260
|
YGF-300
|
|
Weight (Ton)
|
4.5
|
5
|
6.5
|
7.2
|
|
Drilling Diameter (mm)
|
140~254
|
140~254
|
140~305
|
140~325
|
|
Drilling Depth (m)
|
180
|
200
|
260
|
300
|
|
Walking Speed (Km/h)
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Climbing Angles (°)
|
30
|
30
|
30
|
30
|
|
Equipped capacitor (Kw)
|
55
|
65
|
70
|
85
|
|
Using Air Pressure (Mpa)
|
1.7~2.5
|
1.7~3.0
|
1.7~3.0
|
1.7~3.0
|
|
Air Consumption (m³/Min)
|
17~31
|
17~31
|
17~31
|
17~36
|
|
Drilling Pipe Length (M)
|
1.5/2/3
|
1.5/2/3
|
1.5/2/3
|
1.5/2/3
|
|
Rig Lifting Force (T)
|
12
|
13
|
20
|
24
|
|
Swing torque (N.m)
|
3200-4600
|
3400-4700
|
4000-5300
|
5700-7500
|
|
Swing speed (rpm)
|
45-70
|
45-70
|
45-70
|
45-70
|
|
Dimension (mm)
|
3950*1630
*2250 |
3950*1750
*2250 |
4000*1850
*2300 |
4100*2000
*2500 |
