Quick Details
-
Return Force (kN):
-
630 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Year:
-
new date
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1500*650*1950mm
-
Weight (T):
-
1.1 T
-
Model Number:
-
YM-63T
-
Motor Power (kw):
-
6 kw
-
MODEL:
-
YM-63T
-
Max. liquid pressure:
-
30Mpa
-
Piston travel:
-
200mm
-
Gantry span:
-
500mm
-
Worktable size(L-R)*(F-B):
-
400*460mm
-
Motor power:
-
6kw
-
Descent speed:
-
6mm/s
-
Return speed:
-
8mm/s
-
Dimension:
-
1500*650*1950mm
-
Weight:
-
1020kg
Quick Details
-
Machine Type:
-
Double Column Hydraulic Press
-
Slide Stroke (mm):
-
200
-
Ejector Force (kN):
-
630
-
Return Force (kN):
-
630 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Year:
-
new date
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1500*650*1950mm
-
Weight (T):
-
1.1 T
-
Model Number:
-
YM-63T
-
Motor Power (kw):
-
6 kw
-
MODEL:
-
YM-63T
-
Max. liquid pressure:
-
30Mpa
-
Piston travel:
-
200mm
-
Gantry span:
-
500mm
-
Worktable size(L-R)*(F-B):
-
400*460mm
-
Motor power:
-
6kw
-
Descent speed:
-
6mm/s
-
Return speed:
-
8mm/s
-
Dimension:
-
1500*650*1950mm
-
Weight:
-
1020kg
Recommend Products
Products Description
Product Paramenters
For reference only and supports customization.

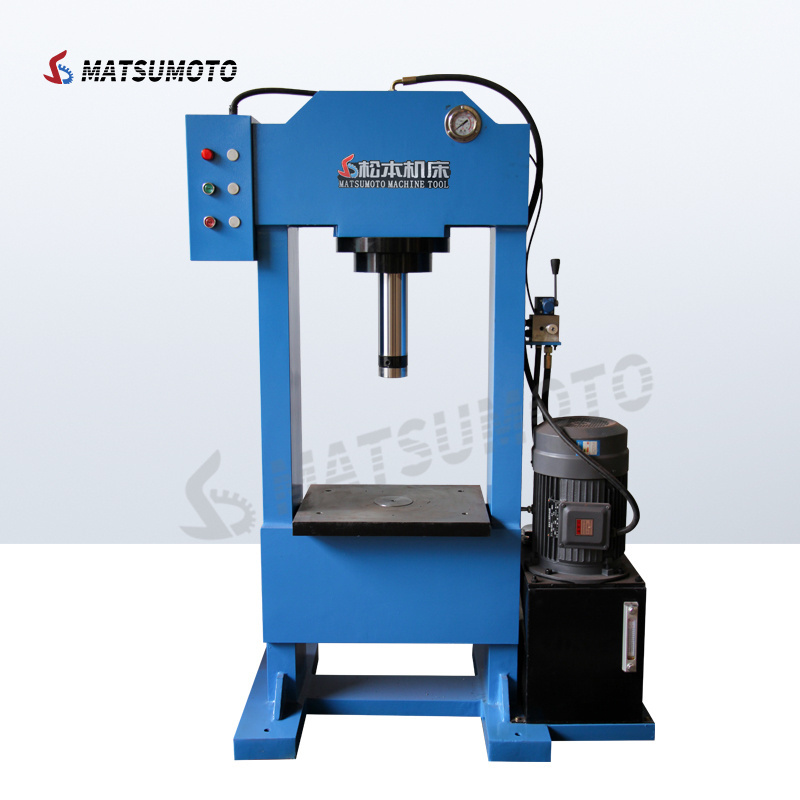

1.Gateway steel frame structure
2. Adopts the hydraulic ram with manual and foot-operated functions
3. Applied in dismounting, molding, aligning in the vehicle repairing
4.The manual hydraulc press are used for assembling, dismantling, alignment, stamping, drawing, straightening and punching.
5. It features with small volume, high pressure, simple structure and light weight.
6. mandrel presses have the advantages of small volume ,simple structure ,and little cost.The machine is suitable for operating in the open alror the other special situation.
1.Gateway steel frame structure
2. Adopts the hydraulic ram with manual and foot-operated functions
3. Applied in dismounting, molding, aligning in the vehicle repairing
4.The manual hydraulc press are used for assembling, dismantling, alignment, stamping, drawing, straightening and punching.
5. It features with small volume, high pressure, simple structure and light weight.
6. mandrel presses have the advantages of small volume ,simple structure ,and little cost.The machine is suitable for operating in the open alror the other special situation.
|
Parameters
|
Max.
liquid pressure |
Piston travel
|
Gantry span
|
Worktable size(L-R)*(F-B)
|
Motor power
|
Descent speed
|
Return speed
|
Dimension
|
Weight
|
|
Unit
|
Mpa
|
mm
|
mm
|
mm*mm
|
KW
|
mm/s
|
mm/s
|
mm
|
kgs
|
|
YM-20T1
|
18
|
200
|
420
|
360*400
|
2.2
|
12
|
19
|
1160*550*1500
|
320
|
|
YM-20T2
|
18
|
200
|
420
|
360*400
|
3
|
21
|
32
|
1160*550*1500
|
320
|
|
YM-40T1
|
23
|
200
|
500
|
400*460
|
3
|
6.5
|
9.5
|
1500*650*1950
|
900
|
|
YM-40T2
|
23
|
200
|
500
|
400*460
|
5.5
|
14
|
19
|
1500*650*1950
|
900
|
|
YM-60T1
|
30
|
200
|
500
|
400*460
|
6
|
6
|
8
|
1500*650*1950
|
1020
|
|
YM-60T2
|
30
|
200
|
500
|
400*460
|
5.5
|
12
|
16
|
1500*650*1950
|
1020
|
|
YM-80T1
|
31.5
|
240
|
520
|
500*450
|
5.5
|
9
|
13
|
1650*700*2100
|
1120
|
|
YM-80T2
|
31.5
|
240
|
520
|
500*450
|
5.5
|
23
|
34
|
1650*700*2100
|
1120
|
|
YM-100T1
|
31.5
|
240
|
520
|
500*500
|
5.5
|
7.5
|
10
|
1730*730*2200
|
1220
|
|
YM-100T2
|
31.5
|
240
|
720
|
700*500
|
5.5
|
7.5
|
10
|
1730*730*2200
|
1220
|
|
YM-150T1
|
31.5
|
300
|
810
|
800*600
|
5.5
|
5
|
7.5
|
1730*730*2200
|
1350
|
|
YM-150T2
|
31.5
|
300
|
1010
|
1000*600
|
5.5
|
5
|
7.5
|
1730*730*2200
|
1350
|
