Quick Details
-
Application:
-
Jigs and Fixtures, Industrial Magnet
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lance
-
Model Number:
-
SLND
-
Material:
-
Neodymium Iron Boron
-
Size:
-
D10-120mm
-
Certification:
-
ISO9001:2008
-
Coating:
-
Nickel
-
Holding Force:
-
11lbs-500lbs
Quick Details
-
Type:
-
Pot Magent, Permanent
-
Feature:
-
powerful
-
Power Source:
-
Neodymium Pot Magnets
-
Application:
-
Jigs and Fixtures, Industrial Magnet
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lance
-
Model Number:
-
SLND
-
Material:
-
Neodymium Iron Boron
-
Size:
-
D10-120mm
-
Certification:
-
ISO9001:2008
-
Coating:
-
Nickel
-
Holding Force:
-
11lbs-500lbs

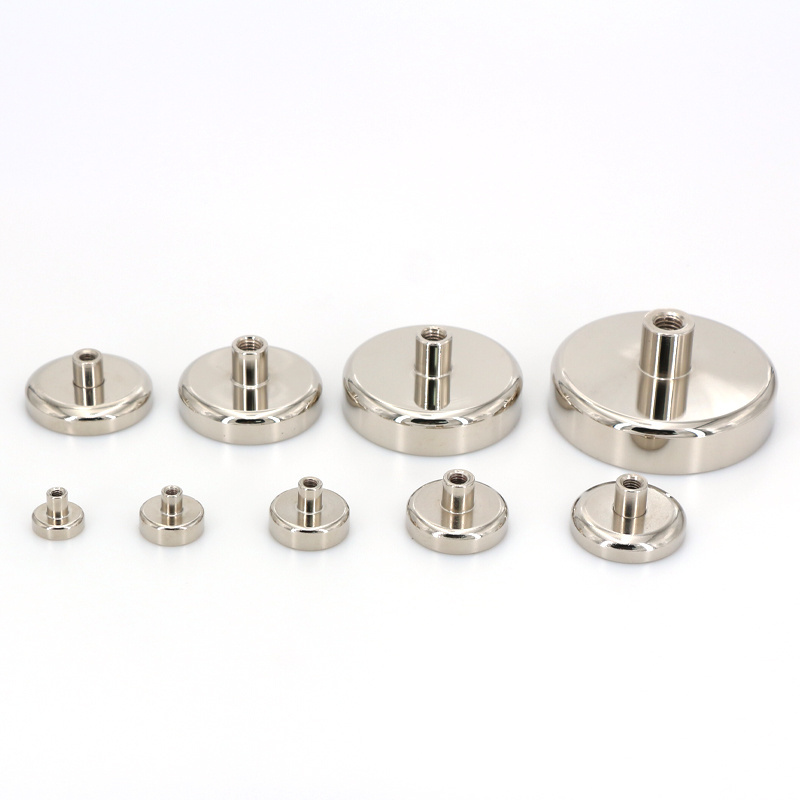

High Quality NdFeB Female Cup Neodymium Pot magnet with strong pulling force internal thread rod
Product Description
| Model |
D
(mm) |
d
(mm) |
M |
H
(mm) |
h
(mm) |
Weight
(g) |
Breakaway
(kg) |
| SND10 | 10 | 6 | M3 | 12.6 | 5 | 4 | 1.5 |
| SND12 | 12 | 6 | M3 | 12.6 | 5 | 5 | 2 |
| SND16 | 16 | 6.5 | M4 | 13.5 | 5 | 9 | 8 |
| SND20 | 20 | 6.5 | M4 | 15 | 7 | 17 | 12 |
| SND25 | 25 | 7.5 | M5 | 17 | 8 | 28 | 25 |
| SND32 | 32 | 10 | M6 | 18 | 8 | 45 | 34 |
| SND36 | 36 | 10 | M6 | 18.5 | 8 | 55 | 50 |
| SND42 | 42 | 10 | M6 | 18.8 | 8.6 | 84 | 72 |
| LND48 | 48 | 12 | M8 | 24 | 11 | 130 | 81 |
| LND55 | 55 | 12 | M8 | 28 | 12 | 211 | 95 |
| LND60 | 60 | 12 | M8 | 28 | 15 | 263 | 160 |
| LND70 | 70 | 17 | M10 | 34 | 17 | 481 | 200 |
| LND75 | 75 | 17 | M10 | 35 | 18 | 515 | 270 |
| LND80 | 80 | 17 | M10 | 35 | 18 | 694 | 300 |
| LND90 | 90 | 17 | M10 | 35 | 18 | 854 | 360 |
| LND120 | 120 | 22 | M12 | 40 | 18 | 1440 | 480 |
Attention: The force of product in this catalog have been determined at room temperature on a plate in polished steel (Q235B) with a thickness of 10 mm (80mm/min).
