Quick Details
-
Brand Name:
-
OM
-
Model Number:
-
ECS-961 NEO
-
Material:
-
Plastic + Electronic Components
-
Type:
-
Thermostat
-
Model:
-
ECS-961 NEO
-
Temperature measuring range:
-
-50℃~99℃
-
Temperature control range:
-
-50℃~99℃
-
Power supply:
-
220VAC±10%, 50/60Hz (Optional when ordering)
-
Power consumption:
-
<3W
-
Resolution:
-
0.1℃ or 1℃
-
Temperature measurement accuracy:
-
±1℃ at -40℃~50℃, ±2℃ at 50℃~70℃, and ±3℃ for other segments
-
Functions:
-
Refrigeration, Heating, Defrost, 1NTC, Calibration, Restore, Copy-card
-
Working environment temperature:
-
0℃~55℃
-
Storage temperature:
-
-25℃~75℃
Quick Details
-
Warranty:
-
12 Months
-
Theory:
-
Temperature controller
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OM
-
Model Number:
-
ECS-961 NEO
-
Material:
-
Plastic + Electronic Components
-
Type:
-
Thermostat
-
Model:
-
ECS-961 NEO
-
Temperature measuring range:
-
-50℃~99℃
-
Temperature control range:
-
-50℃~99℃
-
Power supply:
-
220VAC±10%, 50/60Hz (Optional when ordering)
-
Power consumption:
-
<3W
-
Resolution:
-
0.1℃ or 1℃
-
Temperature measurement accuracy:
-
±1℃ at -40℃~50℃, ±2℃ at 50℃~70℃, and ±3℃ for other segments
-
Functions:
-
Refrigeration, Heating, Defrost, 1NTC, Calibration, Restore, Copy-card
-
Working environment temperature:
-
0℃~55℃
-
Storage temperature:
-
-25℃~75℃
Function Profile:
Refrigeration, Heating, Defrost, 1NTC, Calibration, Restore, Copy card
Features and Functions

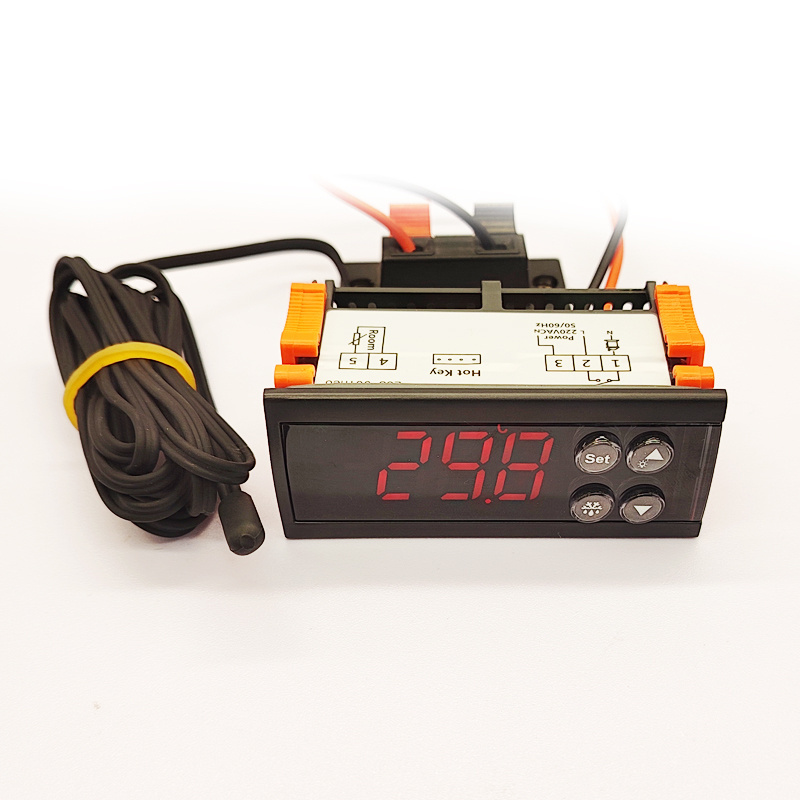

1) ECS-961neo has user menu and administrator menu.
2) User menu is used to adjust the temperature.
3) The administrator menu will be only active with the correct password, it can help the user avoid to operating the controller mistake.
4) ECS-961neo has 1 sensor for the room and with 16A(max) relay to control the compressor.
5) It has a very big display screen with the compressor and defrost indicator light which help the user check the statues of the refrigeration units easily.
Technical Parameters
|
Model
|
ECS-961NEO
|
|
Temperature measuring range
|
-50℃~99℃
|
|
Temperature control range
|
-50℃~99℃
|
|
Power supply
|
110-220VAC±10%, 50/60Hz;
12/24VDC±10% (Optional when ordering) |
|
Power consumption
|
<3W
|
|
Resolution
|
0.1℃ or 1℃
|
|
Temperature measurement accuracy
|
±1℃ at -40℃~50℃, ±2℃ at 51℃~70℃, and ±3℃ for other segments
|
|
Sensor
|
NTC sensor (1PC)
|
|
Functions
|
Refrigeration, Heating, Defrost, 1NTC, Calibration, Restore, Copy card
|
|
Working environment temperature
|
0℃~55℃
|
|
Storage temperature
|
-25℃~75℃
|
|
Relative humidity
|
20%~85% (No condensate)
|
|
Specification and Size
|
|
|
|
Product size
|
78.5(L)×34.5(W)×41(D)mm
|
|
|
Mounting size
|
71(L)×29(W)mm
|
|
Wiring Diagram
The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections by a qualified technician.
Details Images
Stable performance, easy to deal with various occasions:
Cold storage, refrigerator freezer, seafood machine, cold chain transportation, agriculture and livestock breeding, aquarium and so on.
