Quick Details
-
Dimension(L*W*H):
-
1.38*1.11*1.08
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max diameter of hole honed:
-
35-170mm
-
Max depth of hole honed:
-
320mm
-
Spindle Speed(4 steps):
-
120 160 225 290
-
Stork(3 steps):
-
35 44 65 a/min
-
Powder of main motor:
-
1.5Kw
-
Powder of cooling pump motor:
-
0.125kw
-
Working inside cavity dimensions L X W:
-
1400*870 MM
-
Overall dimensions LxWxH:
-
1640*1670*1920mm
-
Weight:
-
1000KG
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Richon/ Integrity
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1.38*1.11*1.08
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max diameter of hole honed:
-
35-170mm
-
Max depth of hole honed:
-
320mm
-
Spindle Speed(4 steps):
-
120 160 225 290
-
Stork(3 steps):
-
35 44 65 a/min
-
Powder of main motor:
-
1.5Kw
-
Powder of cooling pump motor:
-
0.125kw
-
Working inside cavity dimensions L X W:
-
1400*870 MM
-
Overall dimensions LxWxH:
-
1640*1670*1920mm
-
Weight:
-
1000KG
Products Description

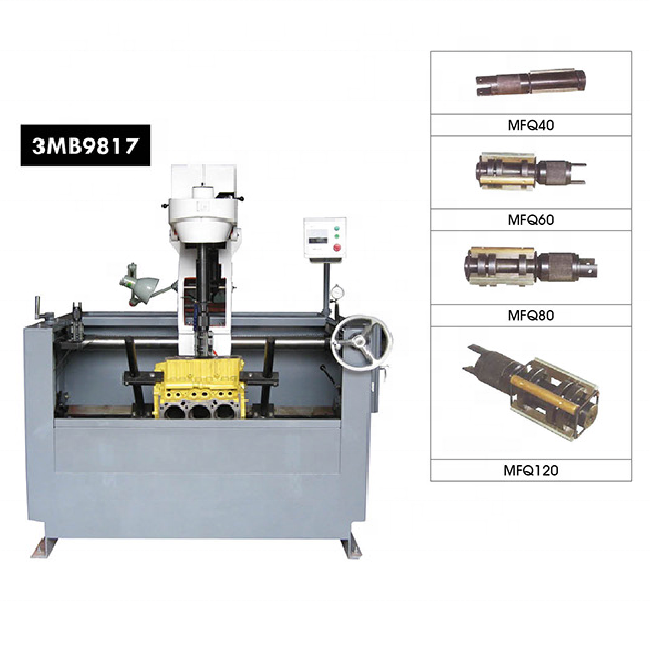

3MB9817
3MB9817 vertical honing machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
|
Model
|
3MB9817
|
|
Max diameter of hole honed
|
35-170 mm
|
|
Max depth of hole honed
|
320 mm
|
|
Spindle speed (4 steps)
|
120, 160, 225, 290 mm
|
|
Stork (3 steps)
|
35, 44, 65 s/min
|
|
Power of main motor
|
1.5 Kw
|
|
Power of cooling pump motor
|
0.125 Kw
|
|
Machine working inside cavity
|
1400 x 870 mm
|
|
Overall dimensions (L x W x H)
|
1640 x 1670 x 1920 mm
|
|
Packing dimensions (L x W x H)
|
1850 x 1850 x 2150 mm
|
|
N.W./G.W.
|
1000/1200 kg
|
Related Products
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1:
12 month
guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2:
Free replacing parts
available in the warranty period.
Cost-value replacing parts
available beyond the warranty period.
Quick action
and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes,
free training
in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide
different kinds processing solutions
for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to
visit our factory at any time
. The more you know us, the more you trust us! So you can rest assured on our
quality products
and our
best services
.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
