Quick Details
-
Processor Core:
-
10 Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
piesia
-
Model Number:
-
U-BOX-M5
-
Operating System:
-
Win and Linux, Win 10/11 and Linux
-
Processor Type:
-
AMD
-
RAM Type:
-
DDR5
-
Chipset Type:
-
AMD 6600H
-
Processor Series:
-
AMD 6600H
-
Video Memory:
-
According cpu
-
CPU:
-
Support AMD R 6000/7000 series processors
-
Memory:
-
2 DDR5 SODIMMs, Max up to 64GB
-
Storage:
-
M.2 2280 NVME
-
Product Name:
-
Mini PC NUC
-
Display port:
-
HD-I2.0/Type-C(DP)
-
LAN:
-
RTL8125B network, dual network
-
Port:
-
1*RS232,2*USB2.0,SATA3.0,1*PCIe4.0
-
Dimension:
-
114x114x54 mm
-
Key Words:
-
NUC Mini Pc
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
10 Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
piesia
-
Model Number:
-
U-BOX-M5
-
Operating System:
-
Win and Linux, Win 10/11 and Linux
-
Processor Type:
-
AMD
-
RAM Type:
-
DDR5
-
Chipset Type:
-
AMD 6600H
-
Processor Series:
-
AMD 6600H
-
Video Memory:
-
According cpu
-
CPU:
-
Support AMD R 6000/7000 series processors
-
Memory:
-
2 DDR5 SODIMMs, Max up to 64GB
-
Storage:
-
M.2 2280 NVME
-
Product Name:
-
Mini PC NUC
-
Display port:
-
HD-I2.0/Type-C(DP)
-
LAN:
-
RTL8125B network, dual network
-
Port:
-
1*RS232,2*USB2.0,SATA3.0,1*PCIe4.0
-
Dimension:
-
114x114x54 mm
-
Key Words:
-
NUC Mini Pc

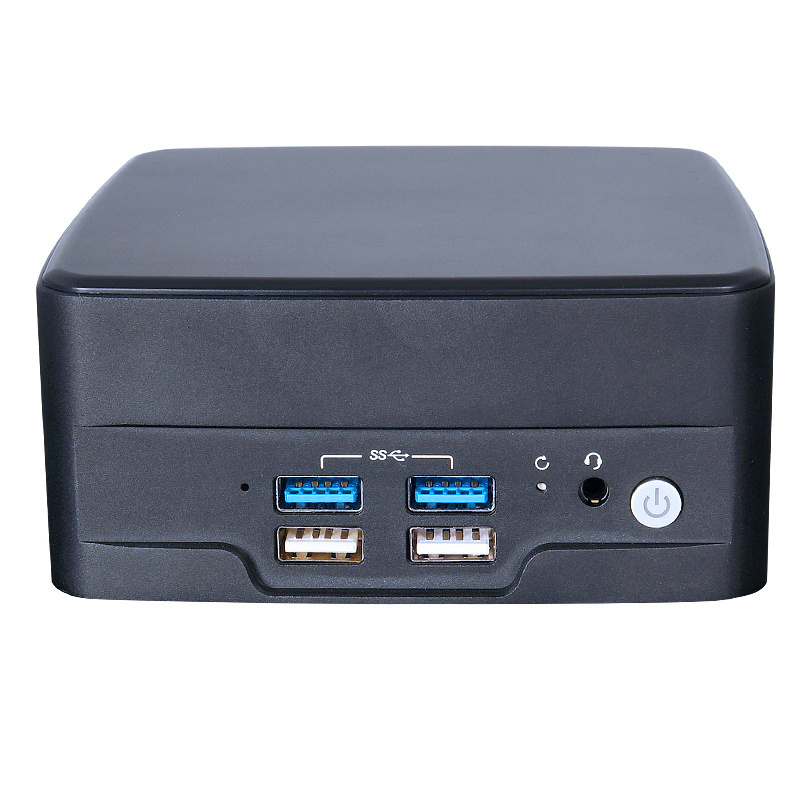

Products Description
|
Model
|
U-BOX-M5
|
|
Size
|
Machine size 114.5x114.5x54.1mm
|
|
Material
|
Metal body
|
|
Color
|
Available in black, iron gray
|
|
Processor
|
Onboard AMD R 6000/7000 series processor
|
|
Ram
|
2*DDR5 SO-DIMM，Max support64GB
|
|
Rom
|
1*M.2 M-Key 2280(PCIe3.0 x4 NVMe/SATA3.0 protocol,default NVME）
|
|
Network
|
RTL8125B network card, dual network
|
|
Wireless
|
Optional M.2 E-Key WIFI/BT, built-in antenna
|
|
TPM
|
External TPM2.0 optional
|
|
I/O interface
|
switch button;reset hole
|
|
|
RTL8125B network card, dual network
|
|
|
2*HDMI2.0 ports, 2 Type-C ports (USB3.2 + DP)
|
|
|
1*DC power port
|
|
|
1*2-in-1 audio hole
|
|
|
2*USB3.2 ports，2*USB2.0 ports
|
|
Power
|
DC 12-19V，90W and above
|
|
OS support
|
Windows10、Windows11、Linux
|
|
Package
|
Neutral white packing，181x152x115mm
|
|
Single weight
|
Net weight 1000g (excluding adapter)
|
Details Images
Services
1.Quality:
we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages : the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
2.Design: we could do design as customer requirement.
3.Packages : the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
About Piesia
Package&Delivery
Exhibition
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
