Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
90000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
Acntruck
-
Place of Origin:
-
Shanghai, China
-
Dimensions (L x W x H) (mm):
-
9070*3450*4370 mm
-
Cargo Tank Dimension:
-
9070*3450*4370 mm
-
Operating weight:
-
31000kg
-
Heaped capacity (SAE 2:1):
-
36 m³
-
Engine Model:
-
Cum--mins QSM11
-
Emission regulation:
-
Tier 3 / Stage III
-
Rated power:
-
306 kW (416 hp) @ 1900 rpm
-
Transmission Model:
-
Fast 10JSD220
-
Maximum travel speed:
-
40 km/h
-
Tire:
-
14.00R25
-
Body capacity:
-
30-38cbm
-
Capacity (Load):
-
51 - 60t
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
90000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
Acntruck
-
Place of Origin:
-
Shanghai, China
-
Dimensions (L x W x H) (mm):
-
9070*3450*4370 mm
-
Cargo Tank Dimension:
-
9070*3450*4370 mm
-
Operating weight:
-
31000kg
-
Heaped capacity (SAE 2:1):
-
36 m³
-
Engine Model:
-
Cum--mins QSM11
-
Emission regulation:
-
Tier 3 / Stage III
-
Rated power:
-
306 kW (416 hp) @ 1900 rpm
-
Transmission Model:
-
Fast 10JSD220
-
Maximum travel speed:
-
40 km/h
-
Tire:
-
14.00R25
-
Body capacity:
-
30-38cbm
-
Capacity (Load):
-
51 - 60t

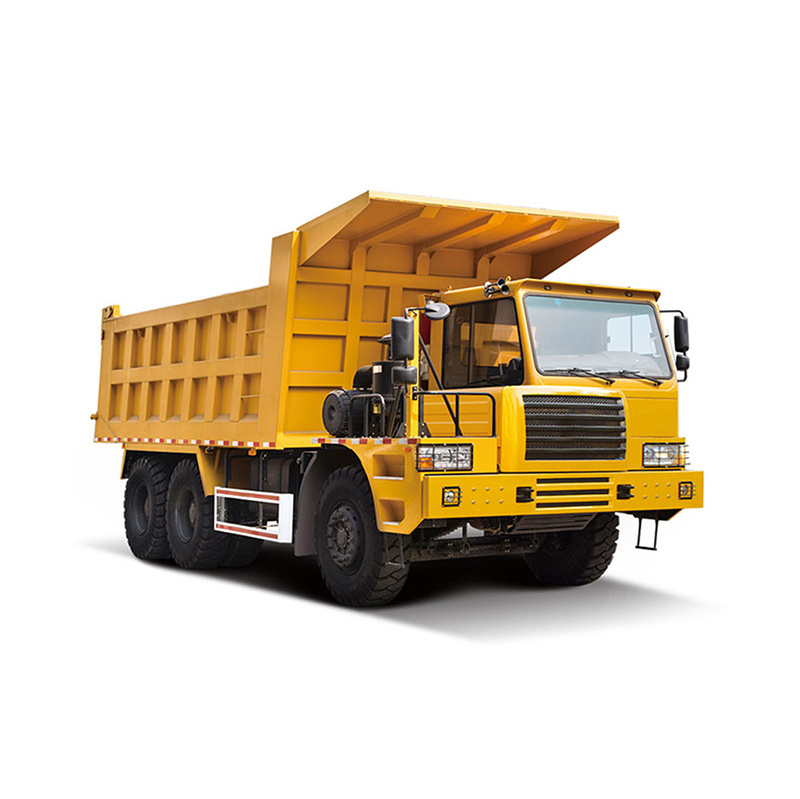

Off road dump truck TL849R mining truck dumper for sale
PRODUCT DETAILS
1. Efforts less full hydraulic steering system
2. Lifting system save time and increase production
3. The center of gravity act on point which provide more stable operation on jobsite.
4. The cab is spacious and less noise with a wider vision
5. Strong power train, world-class components suppliers
6. Brake system and alarm system, safe and reliable
7. Leaf spring suspension system with excellent shock absorption
PRODUCT PICTURES
PRODUCT SPECIFICATIONS
|
Operating weight
|
31000 kg
|
|
Rated load
|
59000 kg
|
|
Gross Machine Weight
|
90000 kg
|
|
Struck Capacity
|
30 m³
|
|
Heaped capacity (SAE 2:1)
|
36 m³
|
|
Engine Model
|
QSM11
|
|
Emission regulation
|
Tier 3 / Stage III
|
|
Rated power
|
306 kW (416 hp) @ 1900 rpm
|
|
Transmission Model
|
Fast 10JSD220
|
|
Type
|
Manual
|
|
Maximum travel speed
|
40 km/h
|
|
Dimension
|
9070x3450x4370 mm
|
|
Tire
|
14.00R25
|
