Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOSUN
-
Voltage:
-
220/380/415V 3P
-
Dimension(L*W*H):
-
1450*1340*1550mm
-
Weight:
-
1600 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
ML750
-
Inside Chase Size:
-
29.5*20.5inch
-
Platen Size:
-
29.5*20.5 inch
-
Max Cutting rule:
-
≤15m
-
Motor Power:
-
2.2kw
-
Oil Pump:
-
Automatic
-
Name:
-
Die Cutting Creasing Machine
-
Product name:
-
Manual Die Cutting Machine
-
Function:
-
Cardboard Automatic Die-cutting Machine
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
25±2times/min
-
Max. workable width:
-
750mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOSUN
-
Voltage:
-
220/380/415V 3P
-
Dimension(L*W*H):
-
1450*1340*1550mm
-
Weight:
-
1600 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
ML750
-
Inside Chase Size:
-
29.5*20.5inch
-
Platen Size:
-
29.5*20.5 inch
-
Max Cutting rule:
-
≤15m
-
Motor Power:
-
2.2kw
-
Oil Pump:
-
Automatic
-
Name:
-
Die Cutting Creasing Machine
-
Product name:
-
Manual Die Cutting Machine
-
Function:
-
Cardboard Automatic Die-cutting Machine
Product Appearance
Products Description

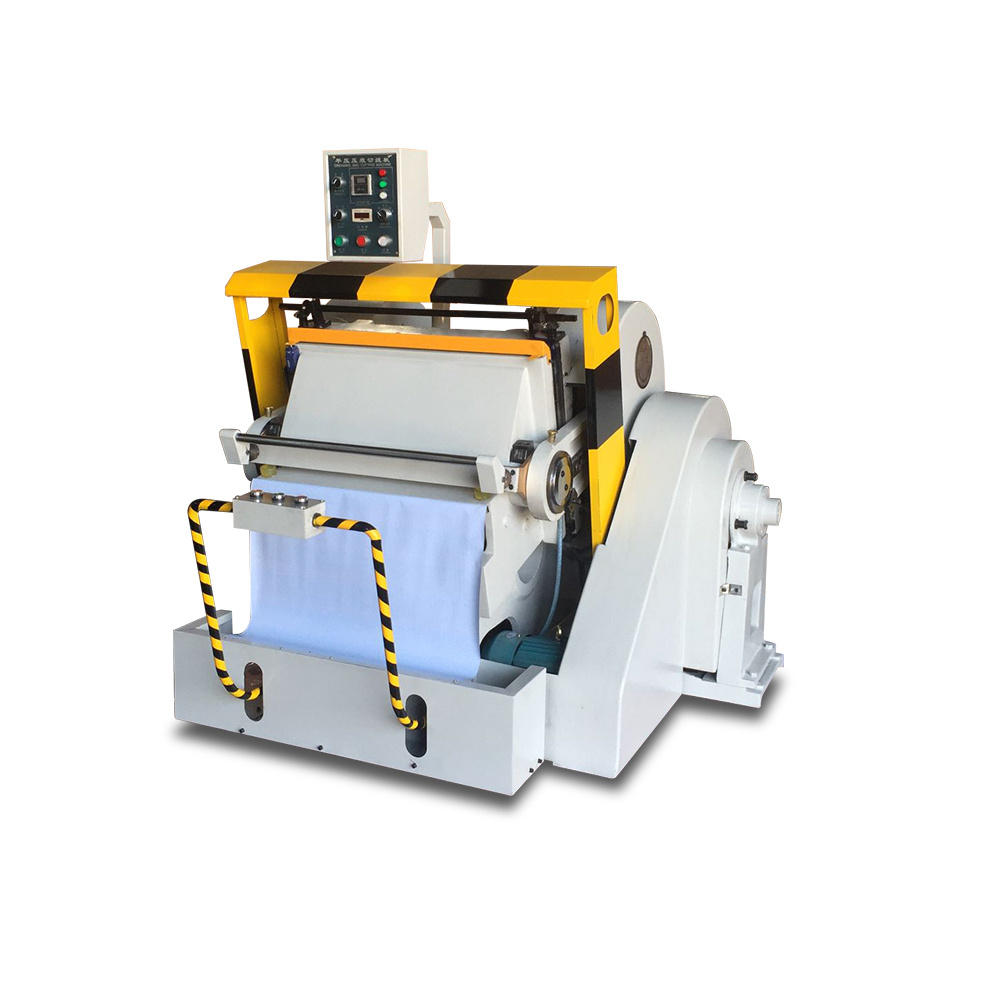

Die Cutting Machine or Platen Punching & Creasing Press particularly designed for Die Cutting, Scoring and Creasing Work on Paper,Linoleum, Cardboard, Corrugated board, Fireboard, Cork, Leather, Plastic and PVC Materials etc. Most Handsome and compact patronized model requires Minimum Floor-Space. Minimum "Make-Ready" Time and provides sufficient hourly production.
|
Model
|
Unit
|
ML750
|
ML750 CE
|
ML750 HEATING
|
|||
|
Platen Size
|
mm
|
750*520
|
|
|
|||
|
Inside Chase Size
|
inch
|
29.5*20.5
|
|
|
|||
|
Platen Size
|
inch
|
29.5*20.5
|
|
|
|||
|
Max Cutting rule
|
m
|
≤15m
|
|
|
|||
|
Impressions Per Min
|
times/min
|
25±2
|
|
|
|||
|
Motor Power
|
kw
|
2.2
|
|
|
|||
|
Heat Power
|
kw
|
/
|
/
|
5
|
|||
|
Heat Group
|
groups
|
/
|
/
|
2
|
|||
|
Temperature: C(F)
|
℃
|
/
|
/
|
0-170c(338F)
|
|||
|
Heating speed
|
Min
|
/
|
/
|
About 20 min
|
|||
|
N.T
|
kg
|
1600
|
1700
|
1700
|
|||
|
G.T
|
kg
|
1700
|
1800
|
1800
|
|||
|
Dimension
|
mm
|
1450*1340*1550
|
|
|
|||
|
Voltage
|
V
|
220/380/415V 50/60Hz 3Phase
|
|
|
|||
|
Package
|
Wooden case with free fumigation
|
|
|
|
|||
1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8.Can equip inner and outer movable frame and central lubrication device.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8.Can equip inner and outer movable frame and central lubrication device.
