Quick Details
-
Input:
-
HDMI
-
Output:
-
IP Output
-
Network protocol:
-
HLS,HTTP, RTSP, RTMPS, RTMP, UDP, multicast, unicast, SRT
-
Coding standard:
-
H.265/H264
-
Audio encoding:
-
AAC MP3 G.711
-
Application:
-
IPTV OTT System Total Solution
-
Product name:
-
Mini H.264 H.265 IPTV Encoder
-
Video encoding:
-
H.265/HEVC
-
Nature:
-
Live Streaming IPTV Video Encoder
-
Type:
-
Indoor
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haiwei
-
Model Number:
-
H5110
-
Input:
-
HDMI
-
Output:
-
IP Output
-
Network protocol:
-
HLS,HTTP, RTSP, RTMPS, RTMP, UDP, multicast, unicast, SRT
-
Coding standard:
-
H.265/H264
-
Audio encoding:
-
AAC MP3 G.711
-
Application:
-
IPTV OTT System Total Solution
-
Product name:
-
Mini H.264 H.265 IPTV Encoder
-
Video encoding:
-
H.265/HEVC
-
Nature:
-
Live Streaming IPTV Video Encoder
-
Type:
-
Indoor
|
Input
|
1 channel HDMI/ Line-in Audio, audio format: MP3 / AAC/ G711
|
|
|
||
|
Output
|
1 channel IP signal output. 1 RJ 100M / 1000M,Main TS stream and Sub TS stream, dual-stream.
|
|
|
||
|
Resolution
|
Up to 1080p 50fps
|
|
|
||
|
Coding standard
|
H.264/ H.265
|
|
|
||
|
Video Bit Rate
|
CBR/ VBR, 16kb-12Mbit/s
|
|
|
||
|
Audio Bit Rate
|
64kb/s-384kb/s
|
|
|
||
|
Video packaging
|
FFMPEG/ VLC
|
|
|
||
|
On Screen Display
|
Text ,images
|
|
|
||
|
Network protocol
|
HTTP/ RTSP/ RTMP/ RTMPS/ O NVIF/ RTP/ TCP/ UDP( Unicast/ multicast)/ SRT
|
|
|
||
|
Available image settings
|
Contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
|
|
|
||
Product Details
Haiwei is leading video streaming solutions provider in China

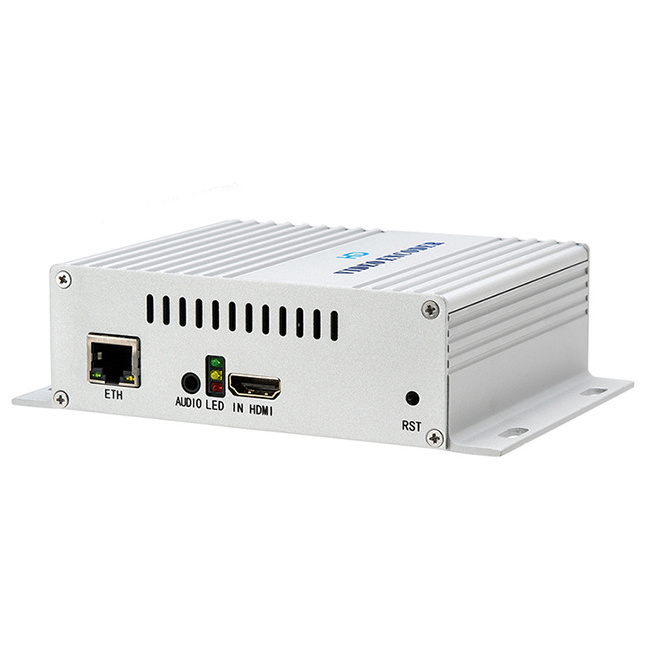

The H.265 HDMI video encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped
with 1 channel HDMI input supporting H.265 /HEVC high profile /main profile /baseline profile coding format which is streaming by
HTTP, RTSP, UDP, RTP, RTMP, RTMPS, O NVIF, HLS, FLV. HDMI max resolution is 1080p@60fps, and output stream resolution can up to
1080p@60fps.
Its high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end,
hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast
platform, such as YouTube, Ustream, Twitter, Facebook, etc. Not only single channel, we also produce multichannel HDMI video
encoder which is packed with 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.
● High-performance hardware encoding
● Support image parameter settings
● WEB interface, English, and Chinese is optional for configuration interface
● WEB interface management authority
● Support remote management in WAN(WEB)
● Support resolution customized settings
● Support one key to restoring the factory configuration
● Support SDK, secondary development
Efficient H.265 Encoding
New generation video encoding format, stable and efficient
The high efficiency h. 265/ h. 264 hd video compression technology is adopted, which has the characteristics of stability, reliability, high definition, low bitrate, low delay, etc. The h. 265 encoding efficiency is improved by 40% compared with that of h. 264, and the bandwidth occupation is reduced by 50%, making the image quality clearer without jamming.
H.265 coding efficiency
H.264 coding efficiency
FHD 1080P Live Video Quality
Real-time 720P/1080P@60 frame hd uncompressed picture quality, even complex, fast moving video picture quality, can easily deal with.At the same time, the software can realize recording and support HDMI video signals output by cameras, SLRS, drones, DV, medical devices, set-top boxes and other devices.
Support Most Live Streaming Platforms
Multi-protocol, multi-platform, all-round live marketing
Support HLS / RTSP/ RTP / RTMP / RTMPS / P2P / DHCP / O NVIF / HTTP / UDP / Unicast / Multicast and other protocols, as long as the live broadcast platform, support the above protocol
APP Remote Management
Managing encoders anywhere in the world via the Internet
1. Download APP “LiveX ”in Apple store or Google play.
2. Background settings as below:
Connection Schematic Diagram
OSD（On-Screen Display）
Web UI
Application
Digital TV Broadcasting System/IPTV&OTT system/Internet TV
Digital Signage /Video Conference/Live streaming/Hotel IPTV System
Digital Signage /Video Conference/Live streaming/Hotel IPTV System
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
