Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
GT01L100
-
Rating:
-
50mA 12VDC
-
Operating Force:
-
100gf-280gf
-
Ambient Humidity:
-
≤85%RH max
-
Mechanical life:
-
Over 1,000,000 cycles
-
Electrical life:
-
10,000cycles
-
Material:
-
Plastic
-
Application:
-
Automobile, remote control device, industrial machines
-
Color:
-
Black
-
Product Name:
-
Detector Switch
-
Terminal:
-
solder Terminals / straight PCB Terminals
Quick Details
-
Protection Level:
-
0
-
Max. Current:
-
0.1A
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
GT01L100
-
Rating:
-
50mA 12VDC
-
Operating Force:
-
100gf-280gf
-
Ambient Humidity:
-
≤85%RH max
-
Mechanical life:
-
Over 1,000,000 cycles
-
Electrical life:
-
10,000cycles
-
Material:
-
Plastic
-
Application:
-
Automobile, remote control device, industrial machines
-
Color:
-
Black
-
Product Name:
-
Detector Switch
-
Terminal:
-
solder Terminals / straight PCB Terminals

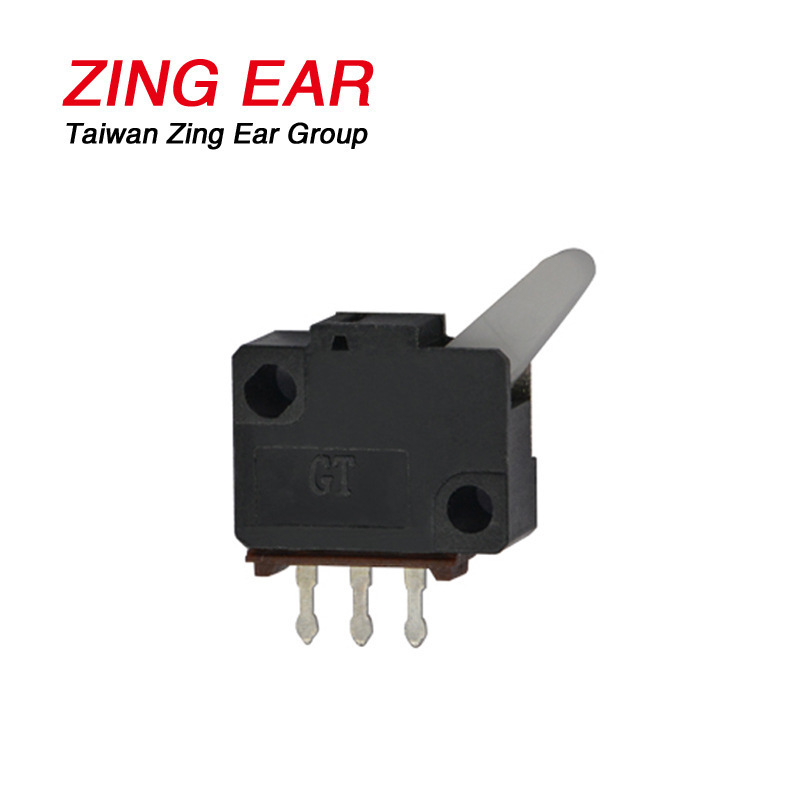

GT01 Series Detector Switch
* Features
-Tight Configuration,Small Contact Gap , Snap Action
-Long Life, High Reliability
-Global Safety Approvals
-Variety of Terminals
-Wide Range Operating Force
-Wide Range Temperature Grade
-With Optional PTI Grade
-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,
Communication Equipments.
Products Description
|
Application
|
|
|
|
|
||||
|
Home Applicances
|
Electronic Equipments
|
Automatic Machines
|
|
|
||||
|
Automatic Machines
|
Communication Equipments
|
Cash registers
|
|
|
||||
Product Parameters
|
Electrical
Characteristics
|
Rating
|
|
0.1A 12V DC/50μA3V DC
|
|
||
|
|
Contact Resitance
|
|
100mΩ Max(Initial Value)
|
|
||
|
|
Insulation Resistance
|
|
50MΩMin
|
|
||
|
|
Voltage Resistence
|
|
AC 50V (50-60Hz) 1Minute
|
|
||
|
|
Eletrical life
|
|
10,000 cycles (Min)
|
|
||
|
Parameters
|
Operating Force
|
|
See Detail Spec
|
|
||
|
|
Solder ability
|
|
245° C±5°C 3s±0.5s
|
|
||
|
|
Solder heat resistance
|
|
260° C±5°C 3s±1s
|
|
||
|
|
Mechanical Life
|
|
100,000 cycles (Min)
|
|
||
|
|
Operating Temperature Range
|
|
-25℃~ + 80℃
|
|
||
|
|
Ambient Humidity
|
|
≤85%RH max
|
|
||
Product size
