Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDS1-AGQ22F-11ET/J/S/12V/G
-
Product name:
-

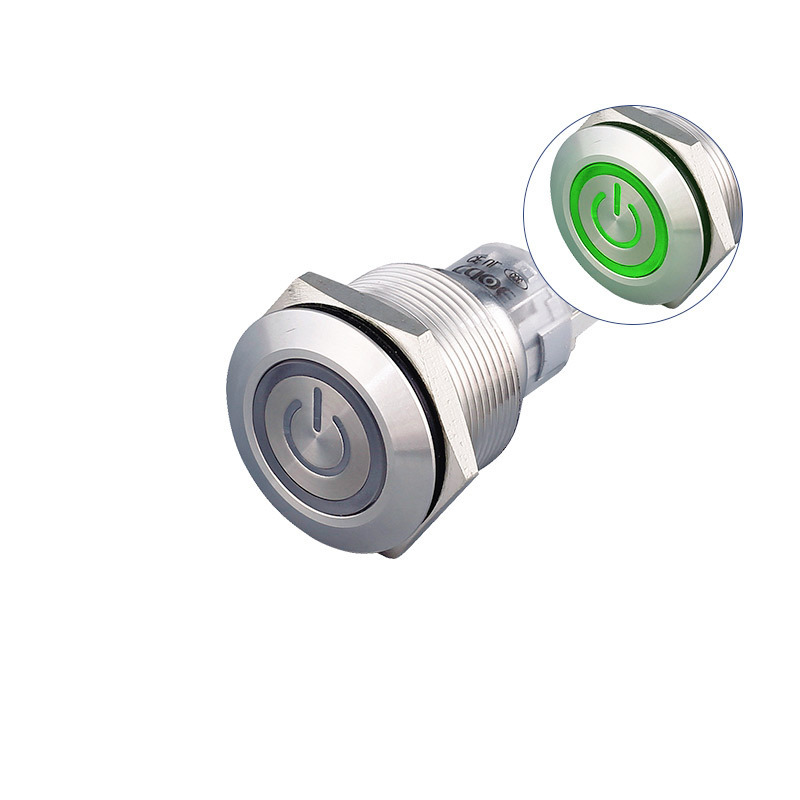

22mm ip67 metal momentary led push button
-
Head shape:
-
Flat round ring illuminated power
-
Operation Type:
-
Momentary
-
Contact configuration:
-
1NO1NC
-
Terminal type:
-
Pin Terminal
-
Material:
-
Stainless steel
-
Protection class:
-
IP67,IK09
-
Certificate:
-
Ce RoHs ISO9001
-
Sample Order:
-
Acceptable
-
Function:
-
Electrical control system start button
-
Certification:
-
UL
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDS1-AGQ22F-11ET/J/S/12V/G
-
Product name:
-
22mm ip67 metal momentary led push button
-
Head shape:
-
Flat round ring illuminated power
-
Operation Type:
-
Momentary
-
Contact configuration:
-
1NO1NC
-
Terminal type:
-
Pin Terminal
-
Material:
-
Stainless steel
-
Protection class:
-
IP67,IK09
-
Certificate:
-
Ce RoHs ISO9001
-
Sample Order:
-
Acceptable
-
Function:
-
Electrical control system start button
-
Certification:
-
UL
Parameter
|
22mm 5 pin metal push button switch wire connector
|
|
|
|
|
||||
|
Mounting hole size :
|
|
|
22mm
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Switch value:
|
|
|
5A/250V AC
|
|
||||
|
Operation type:
|
|
|
Momentary
|
|
||||
|
Contact configuration:
|
|
|
1NO1NC
|
|
||||
|
Head shape：
|
|
|
Flat
|
|
||||
|
Crust material:
|
|
|
Stainless Steel
|
|
||||
|
Terminal type:
|
|
|
Pin terminal
|
|
||||
|
Electrical life :
|
|
|
≥50,000 times
|
|
||||
|
Mechanical life:
|
|
|
≥1,000,000 times
|
|
||||
|
Operation temperature:
|
|
|
-25℃~+65℃
|
|
||||
|
Contact Resistance:
|
|
|
≤50mΩ
|
|
||||
|
Insulation Resistance:
|
|
|
≥100mΩ
|
|
||||
|
Operation stroke:
|
|
|
3.2mm
|
|
||||
|
Protection grade :
|
|
|
IP67
|
|
||||
|
Contact material:
|
|
|
Silver alloy
|
|
||||
|
Illumination type:
|
|
|
Ring illumination and illuminated Power symbol
|
|
||||
|
Led color:
|
|
|
R G B O W Y (One led)
|
|
||||
|
|
|
|
Red/Green,Red/Blue,Red/White bi-color led
|
|
||||
|
|
|
|
Red-Green-Blue tri-color led
|
|
||||
|
Led voltage:
|
|
|
2V(3V),5V(6V),12V,24V,36V,110V,220V
|
|
||||
|
Led life:
|
|
|
50,000 hours
|
|
||||
