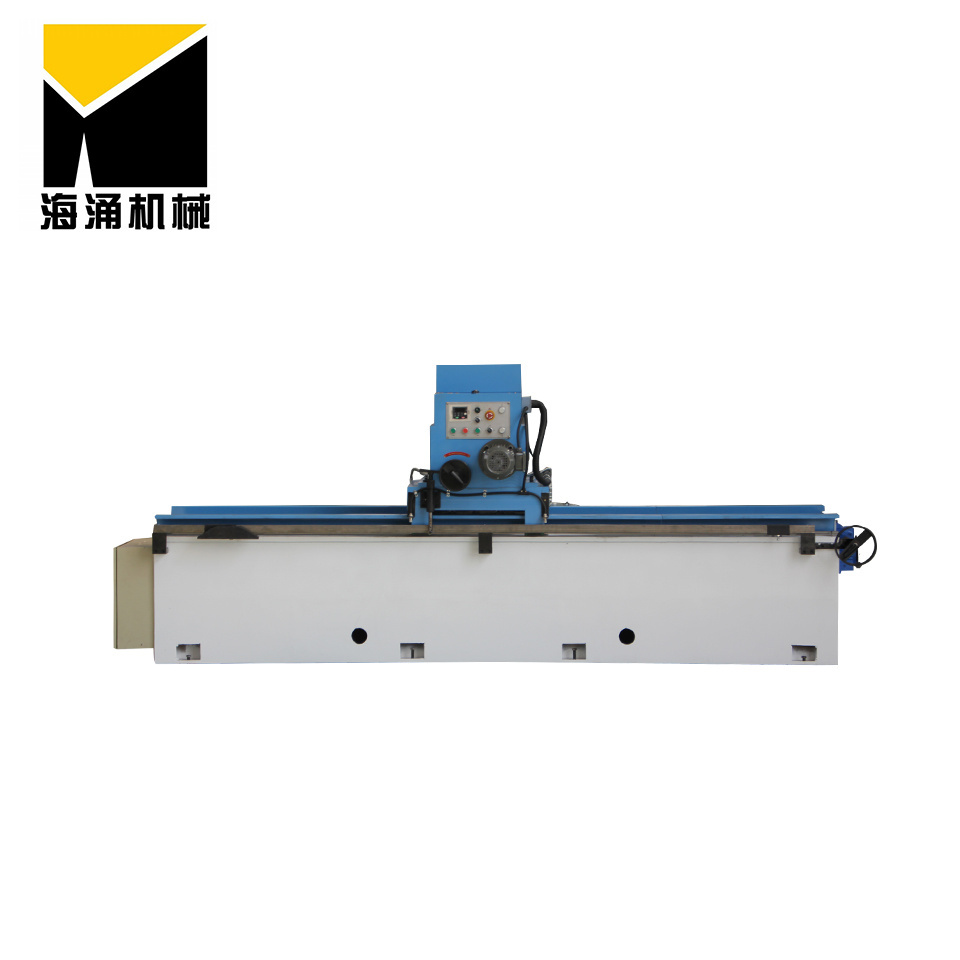

circular knife grinding machine

1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.
2. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
3. The machine has a double tilting fillet to lock tight the working table , so the grinder is more stable.
4. The machine chooses rack driving, so the grinding head traveling is smoother.
5. The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.
6. The switch and the contactor is choose from French Schneider electric components which are well known in the

world. The quality is beyond all doubts.
7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time

without the dropping of the knife. It is the no clearance transmission.

8. The movement of the grinding head is controlled by the inverter. Its speed is 0-20m/s. Its speed can be fitted for

bot accurate grinding and rough grinding.
9 the automatic feed system , job accuracy is 0.01mm.
10 This machine’s body is a design of gantry body, with the high-quality steel weld, stress relieved eliminating the

internal stress. The body has high strength and good rigidity. No shrinking in center of body. The thickness of the

machine body steel is11mm. The machine body have the heat treatment
11. Hiwin linear guide, the accuracy can reach 0.001mm/m to 0.002mm/m
