Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
Huamei
-
Model Number:
-
19-HM001
-
TYPE:
-
Fiberglass acoustic ceiling
-
MATERTIAL:
-
Torrefaction compound high density fiberglass wool
-
SIZE:
-
600*600/600*1200/600*1800MM,OTHER SIZE TO ORDER
-
THICKNESS:
-
30-70MM
-
FIREPROOF:
-
CLASS A
-
NRC:
-
0.9-1.0
-
USING:
-
CEILING ,WALL PAENL
-
EDGE:
-
SQUARE,TEGULAR, INSERT, BEVEL
-
CERTIFICTAE:
-
ISO,SGS,CE
-
MOISTURE RATE:
-
≤1%
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
Huamei
-
Model Number:
-
19-HM001
-
TYPE:
-
Fiberglass acoustic ceiling
-
MATERTIAL:
-
Torrefaction compound high density fiberglass wool
-
SIZE:
-
600*600/600*1200/600*1800MM,OTHER SIZE TO ORDER
-
THICKNESS:
-
30-70MM
-
FIREPROOF:
-
CLASS A
-
NRC:
-
0.9-1.0
-
USING:
-
CEILING ,WALL PAENL
-
EDGE:
-
SQUARE,TEGULAR, INSERT, BEVEL
-
CERTIFICTAE:
-
ISO,SGS,CE
-
MOISTURE RATE:
-
≤1%
Product Description
Noise Hazards
Fiberglass Acoustic Suspended Panle
This Suspended Panel have elegant surface and delicate texture, can hang in any space.
Cooperate with light,lighting showing stereoscopic appearance can creat unique ceiling that express whole and architectu dsign the panels are widely used im cinema meeting rooms music.Achieve decorative and sound absorbing effects
SGS Sound Absorption Coefficient
|
f Hz
|
α
s
|
|
100 125 160
|
0.28 0.47 0.30
|
|
200 250 315
|
0.64 0.76 1.00
|
|
400 500 630
|
0.99 0.95 0.95
|
|
800 1000 1250
|
0.75 0.77 0.91
|
|
1600 2000 2500
|
0.88 0.96 0.96
|
|
3150 4000 5000
|
0.98 0.98 0.97
|
|
α ω
|
0.90
|
All shapes,sizes and colors can be customized according to requirements
|
MAIN MATERIAL
|
Torrefaction compounded high density fiberglass wool
|
|
FACE
|
Special painted laminated with decorative fiberglass tissue+ MGO Board with perforation
|
|
DESIGN
|
The color and design as demanded
|
|
FIRE-RESISTANT
|
CLASS A,tested by SGS(EN 13501-1:2007+A1:2009)
|
|
NRC
|
0.8-0.9 tested by SGS(EN ISO 354:2003 EN ISO 11654:1997)
|
|
THERMAL-RESISTANT
|
≥0.4(㎡.K)/w
|
|
HUMIDTY
|
Dimensionally stable with RH up to 95% at 40℃ No sagging,warping or delaminating
|
|
MOISTURE RATE
|
≤1%
|
|
ENVIRONMENTAL IMPACT
|
Tiles and packings are fully recyclable
|
|
SAFETY
|
Limit of radionuclides in building materials Specific activity of 226Ra:Ira≤1.0 Specific activity of 226Ra,232Th,40K:Ir≤1.3
|
|
CERTIFICATES
|
SGS,ISO9001:2008,CE,KFI
|
|
NORMAL SIZE
|
600x600/600x1200mm,other size to order
|
|
NORMAL DENSITY
|
Fiberglass wool 100KG/m³,special density can be supplied
|

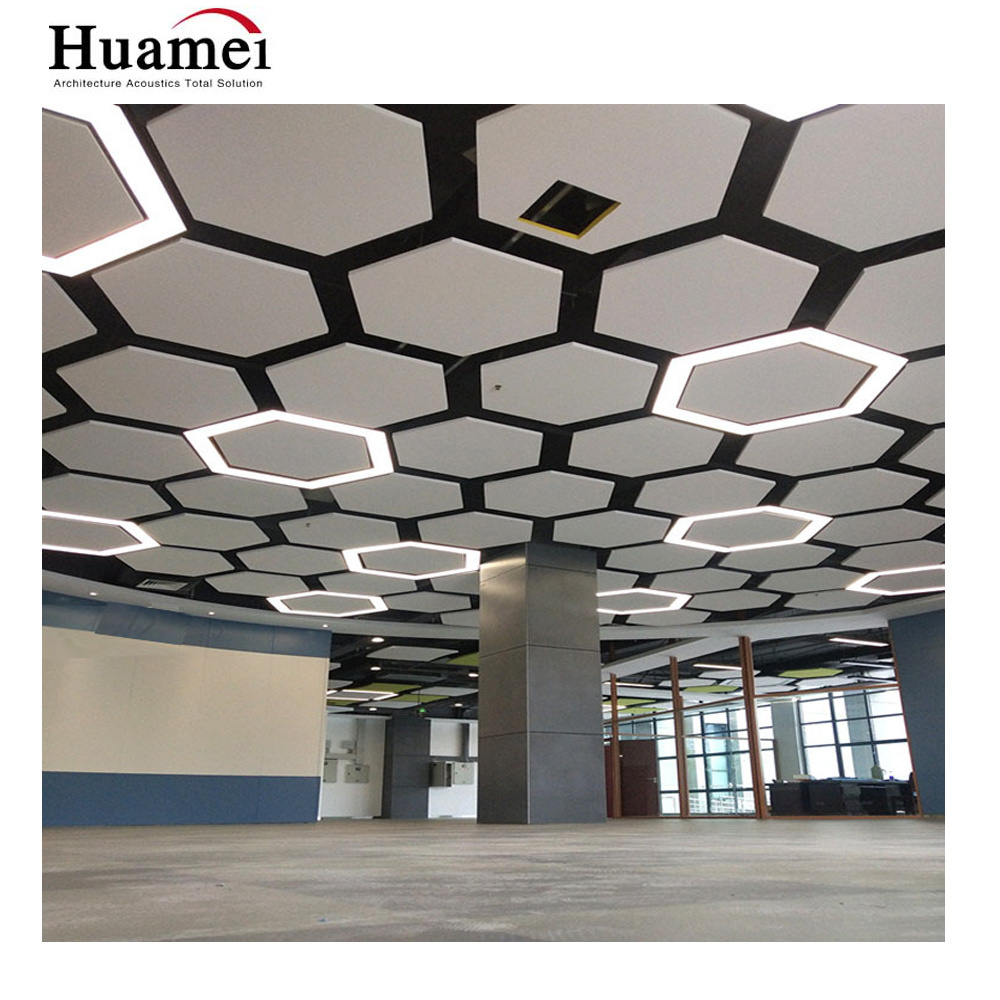

Detailed Images
Acoustic Suspended Panle
Provide a good quiet environment for the office.
Acoustic Suspended Panle
Provide a quiet and comfortable space for the café
Acoustic Suspended Panle
Provide independent and quiet space for the exhibition hall
Packing & Delivery
Our Company
The history of our company
Shandong Huamei Building Materials Co., Ltd located in Linyi City ,Shandong Province, China, which is a manufacturer of building materials with more than ten years history. Our products have already been exported to Middle East,Africa,Southeast Asia,Europe and American and other parts of the world.
Our company had been started our business from gypsum products,After several years of developing and innovating,our company has made a great adjustment of product structure,a series of new products have been developed to meet the acoustic needs,such as fiberglass acoustic ceiling ,suspended fiberglass acoustic panel,decorative fabric acoustic
insulation wall panel,perforated fiberglass acoustic panel,rock wool fireproof ceiling and panel, with installation of these products can achieve excellent sound absorption effect,encourage productivity and comfort with a great indoor climate and acoustics.
In 2000 we passed the ISO9001 quality management system certification,South Korea's highest fireproof certification(KFI),and the European standard fireproof and soundproof testing certification(SGS).Our own brand"Tengyuan"has been widely praised by customers at home and abroad, because of our excellent products quality and service.Welcome guests from all over the world to get cooperation and development.
