Quick Details
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Mobile Switching Center (MSC) server
-
Product name:
-
Universal Media Gateway UMG8900
-
Product Type:
-
Enterprise Core Network
-
Warranty:
-
1 Year
-
Skype ID:
-
Hongtelecom_ethan
-
Model:
-
UMG8900 SSM-32 SSM-256
Quick Details
-
Type:
-
VoIP Gateway
-
Brand Name:
-
HUAWEI
-
Model Number:
-
UMG8900 SSM-32 SSM-256
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Mobile Switching Center (MSC) server
-
Product name:
-
Universal Media Gateway UMG8900
-
Product Type:
-
Enterprise Core Network
-
Warranty:
-
1 Year
-
Skype ID:
-
Hongtelecom_ethan
-
Model:
-
UMG8900 SSM-32 SSM-256
Core Network Universal Media Gateway UMG8900 SSM-32 SSM-256 Chassis
When the UMG8900 functions as an access gateway (AG) on the fixed network, a user access module (UAM) is required.
When the UMG8900 functions as a trunk gateway (TG) or a media gateway on the mobile network, no UAM is required. The server switching module (SSM) and the UAM are connected over TDM. Physically, the connection is E1 or SDH based. The two modules communicate with each other using a private protocol. The SSM performs maintenance and management of the UMG8900.
The UMG8900 is of flexible configuration, and thus can serve as the following service gateways at the access layer in the NGN:
- Trunk gateway (TG)
- Embedded signaling gateway (SG)
- NGN-enabled switch
- Integrated application of the TG, and SG
- Extended integration of fixed and mobile network services
The UMG 8900 has two size chassis SSM-256 and SSM-32 with different Main Control Card.
SSM256 has one standard Slot, but SSM32 has two standard Slots on Main Control Board.

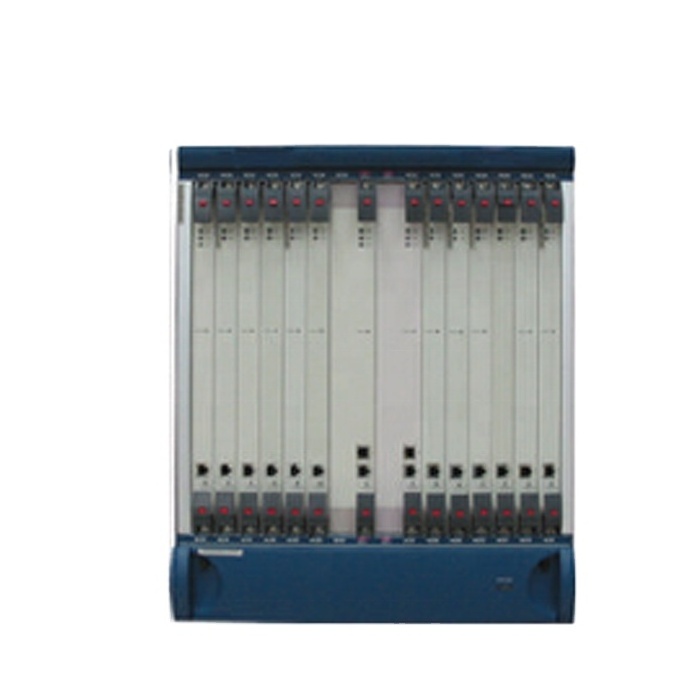

UMG8900 SSM-256 Chassis:
UMG8900 SSM-32 Chassis
