Quick Details
-
Brand Name:
-
LILLIPUT
-
Place of Origin:
-
Fujian, China
-
Size:
-
5.5" IPS
-
Physical Resolution:
-
1920*1080
-
Aspect Ratio:
-
16:9
-
Contrast:
-
1000:1
-
Viewing Angl:
-
160°/160°(H/V)
-
INPUT/OUTPUT:
-
3G-SDI,HDMI
-
AUDIO:
-
Speaker,Ear Phone Slot
-
HDMI FORMAT:
-
Full HD ~ HD,1080p, 1080i, 720p, 576p, 576i, 480p, 486i
Quick Details
-
Brightness:
-
450cd/m
-
Contrast Ratio:
-
1000:1
-
Panel Type:
-
IPS
-
Brand Name:
-
LILLIPUT
-
Place of Origin:
-
Fujian, China
-
Size:
-
5.5" IPS
-
Physical Resolution:
-
1920*1080
-
Aspect Ratio:
-
16:9
-
Contrast:
-
1000:1
-
Viewing Angl:
-
160°/160°(H/V)
-
INPUT/OUTPUT:
-
3G-SDI,HDMI
-
AUDIO:
-
Speaker,Ear Phone Slot
-
HDMI FORMAT:
-
Full HD ~ HD,1080p, 1080i, 720p, 576p, 576i, 480p, 486i

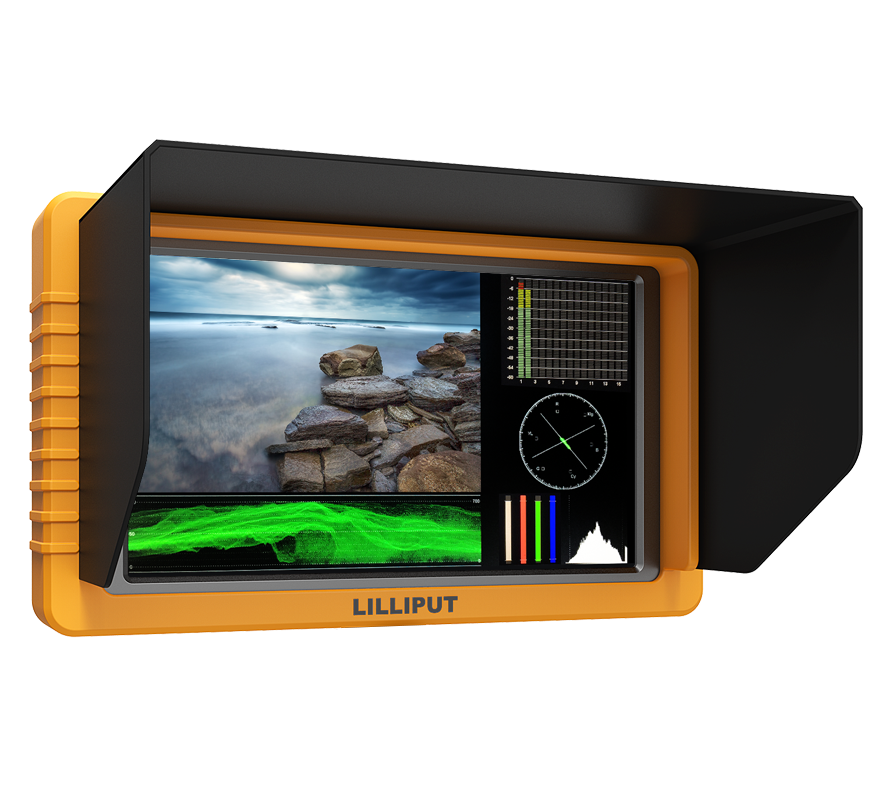

LILLIPUT New with SDI and HDMI cross conversion 5 inch tft monitor lcd
|
DISPLAY
|
Display Screen | 5.5" IPS 8bits |
|---|---|---|
| Physical Resolution | 1920×1080 (401ppi) | |
| Aspect Ratio | 16:9 | |
| Brightness | 450cd/m 2 | |
| Contrast | 1000:1 | |
| Viewing Angle | 160°/160°(H/V) | |
|
INPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
OUTPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
AUDIO
|
Speaker | 1 |
| Ear Phone Slot | 1 | |
|
SDI FORMAT
|
SMPTE-125M |
480i(59.94)
1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M |
720p(60/59.94/50)
1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M-AB | 1080p(60/59.94/50) | |
| -Level A & Level B | 720p(60/59.94/50/30/29.97/25/24/23.98) | |
| Level B 2x | 1080i(60/59.94/50) | |
| ITU-R BT.656 | 576i(50) | |
|
HDMI FORMAT
|
Full HD ~ SD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
|
POWER
|
Current | 1A |
| Input Voltage | DC 7-24V | |
| Battery Plate | F970 / QM91D / DU21 / LP-E6 | |
| Power Consumption | ≤12W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ | |
|
DIMENSION
|
Dimension(LWD) | 154.5x90x20mm / 157.5x93x23mm (with case) |
| Weight |
320g / 340g (with case) |
