Quick Details
-
Brand Name:
-
Zhenzhong
-
Motor Power:
-
5.5kw, 4kw
-
Charging Capacity:
-
560L, 560L
-
Reclaiming capacity:
-
350L, 350L
-
Speed of Mixing Drum:
-
1440r/min
-
Water Supply Mode:
-
Water Pump
-
Working Cycle Period:
-
60s, 35-40S
-
Discharge Way:
-
Hydraulic Discharging
-
Outline Dimension:
-
2810*2240*3070mm
-
Weight (KG):
-
2000 kg
-
Model Number:
-
JZC350
-
Voltage:
-
220V
-
Power:
-
0.75KW
-
Product Type:
-
Concrete,Cement
Quick Details
-
Mixing Power:
-
5.5kw, 0.75kw
-
Productivity:
-
14m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhenzhong
-
Motor Power:
-
5.5kw, 4kw
-
Charging Capacity:
-
560L, 560L
-
Reclaiming capacity:
-
350L, 350L
-
Speed of Mixing Drum:
-
1440r/min
-
Water Supply Mode:
-
Water Pump
-
Working Cycle Period:
-
60s, 35-40S
-
Discharge Way:
-
Hydraulic Discharging
-
Outline Dimension:
-
2810*2240*3070mm
-
Weight (KG):
-
2000 kg
-
Model Number:
-
JZC350
-
Voltage:
-
220V
-
Power:
-
0.75KW
-
Product Type:
-
Concrete,Cement
Product Overview
Diesel

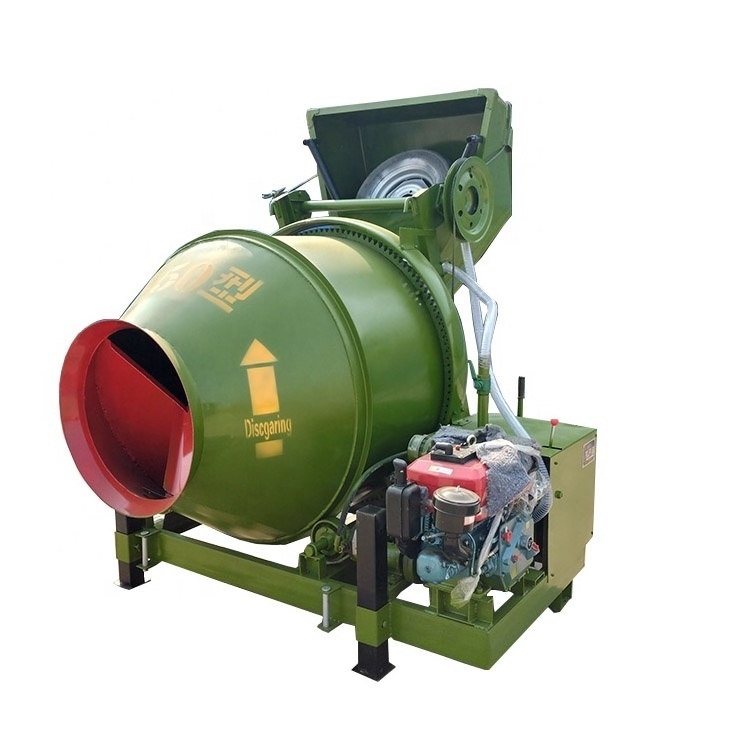

JZC350 concrete mixer
Diesel concrete mixer is sriven by diesel engine, it is the most suitable mixer in various areas where there is no electricity or it is inconvenient to supply electricity. The principle is the existing JZC350 concrete mixer is installed a diesel power generation system, and this system can supply electricity power to make sure the normal running of mixer.Suitable for mixing plastic and semi-rigid concrete mixer. It is mainly used in architectural building site; road construction; bridge project; water-power project; small and medium concrete plant; etc.
Product Specifications
|
Model parameter
|
JZC350
|
|
Discharging capacity
|
350L
|
|
Feeding capacity
|
560L
|
|
Production rate
|
10-14m3/h
|
|
Mixing drum speed
|
14r/min
|
|
Maximum aggregate particles
|
60mm
|
|
Mixing motor
|
5.5Kw
|
|
Improving motor
|
4.5Kw
|
|
Pump motor
|
0.55Kw
|
|
Maximum towing speed
|
20Km/h
|
|
Size
|
2800*2150*3000mm
|
|
Weight
|
1950Kg
|
