Multi-channel HDM1 Encoder H.264 MPEG4 CSP-3228S HD/SD 1MPTS and 8SPTS digital TV

Multi-channel HDM1 Encoder H.264 MPEG4 CSP-3228S HD/SD 1MPTS and 8SPTS digital TV

FOB Reference Price: Get Latest Price

≥5 Pieces

US $38

≥50 Pieces

US $37

≥100 Pieces

US $36

≥500 Pieces

US $35

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

MODEL:: CSP-3228S-8/16/24

Input:: 8/16/24 HDM1 inputs

Video Encoding:: MPEG-4 AVC/H.264

Audio Encoding:: MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through

System function:: Network management(WEB)

Stream output:: IP output through DATA (GE) over UDP and RTP/RTSP protocol

Dimension:: 482mmx328mmx44mm

Environment:: 0~45℃(work);-20~80℃(Storage)

Power requirements:: AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

language:: English

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: catvscope

Model Number:: CSP-3228S

MODEL:: CSP-3228S-8/16/24

Input:: 8/16/24 HDM1 inputs

Video Encoding:: MPEG-4 AVC/H.264

Audio Encoding:: MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through

System function:: Network management(WEB)

Stream output:: IP output through DATA (GE) over UDP and RTP/RTSP protocol

Dimension:: 482mmx328mmx44mm

Environment:: 0~45℃(work);-20~80℃(Storage)

Power requirements:: AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

language:: English

Products Description

Key features

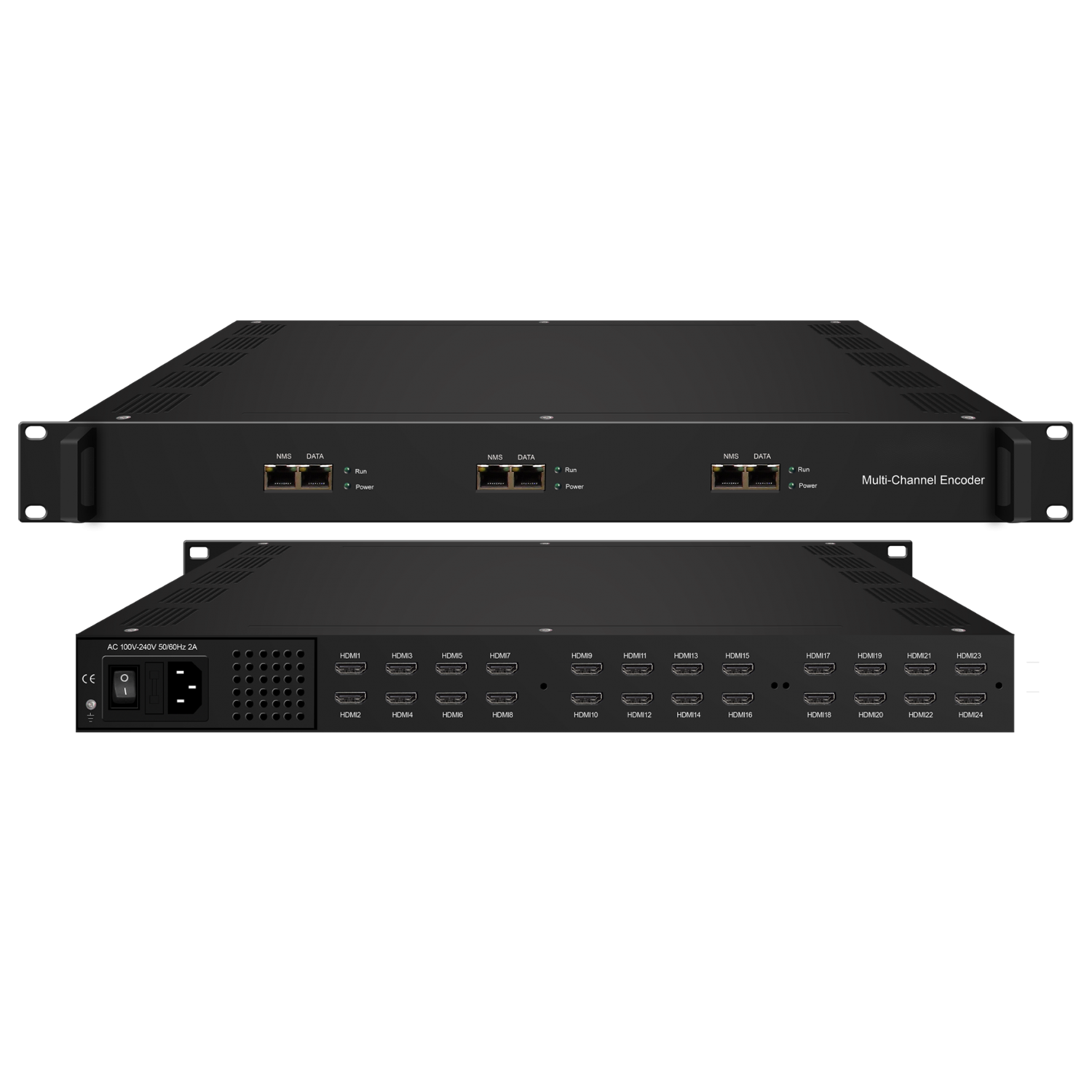

3228S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs

· MPEG4 AVC/H.264 video encoding format
· MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
· IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
· Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو for more languages please consult us…)
· Support “Null PKT Filter” function
· Control via web management, and easy updates via web

Input	8/16/24 HDMI inputs
Video	Resolution	input		1920×1080_60P, 1920×1080_60i,
							1920×1080_50P, 1920×1080_50i,
							1280×720_60P, 1280×720_50P,
							720 x 576_50i,720 x 480_60i
			Output			1920×1080_30P, 1920×1080_25P,
							1280×720_30P, 1280×720_25P,
							720 x 576_25P, 720 x 480_30P
		Encoding				MPEG-4 AVC/H.264
		Bit-rate				1~13Mbps each channel
		Rate Control				CBR/VBR
		GOP Structure				IP…P (P Frame adjustment, without B Frame )
Audio	Encoding				MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
		Sampling rate				48KHz
		Resolution				24-bit
		Audio Gain				0-255 Adjustable
		MPEG-1 Layer 2 Bit-rate				48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	LC-AAC Bit-rate				48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
		HE-AAC Bit-rate				48/56/64/80/96/112/128 kbps
Stream output	IP output through DATA (GE) over UDP and RTP/RTSP protocol
		(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board)
		1 ASI out as mirror of MPTS (Optional as order)
System function	Network management(WEB)
		Chinese and English language
		Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)		482mm×328mm×44mm
		Environment		0~45℃(work)；-20~80℃（Storage）
		Power requirements		AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

Order Information
	3228S-8	3228S-16	3228S-24
8 HDMI Inputs with 8 SPTS and 1 MPTS out (1 encoder board+1NMS port+1 DATA Port)	X
16 HDMI Inputs with 16 SPTS or 2 MPTS out (2 encoder boards+2 NMS ports+2 DATA Ports)		X
24 HDMI Inputs with 24 SPTS or 3 MPTS out((3 encoder boards+3 NMS ports+ 3 DATA Ports))			X
