Quick Details
-
Span:
-
31.5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOKO CRANE
-
Weight (KG):
-
5000 kg
-
Product Name:
-
Double Girder Overhead Crane
-
Lifting mechanism:
-
Electric Wire Rope Hoist
-
Control method:
-
Ground Control+Remote Control
-
Main electrical parts:
-
Schneider Brand
-
Power Source:
-
380V/400V/415V/440V
-
Color:
-
Requirement
-
Girder Type:
-
Two Box
-
Work Duty:
-
A5-A6
-
Speed:
-
VVVF VFD (Frequency Inverter)
-
Temperature:
-
-25---+40℃
Quick Details
-
Max. Lifting Height:
-
35m
-
Rated Lifting Moment:
-
25TON
-
Max. Lifting Load:
-
80t
-
Span:
-
31.5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOKO CRANE
-
Weight (KG):
-
5000 kg
-
Product Name:
-
Double Girder Overhead Crane
-
Lifting mechanism:
-
Electric Wire Rope Hoist
-
Control method:
-
Ground Control+Remote Control
-
Main electrical parts:
-
Schneider Brand
-
Power Source:
-
380V/400V/415V/440V
-
Color:
-
Requirement
-
Girder Type:
-
Two Box
-
Work Duty:
-
A5-A6
-
Speed:
-
VVVF VFD (Frequency Inverter)
-
Temperature:
-
-25---+40℃
Product Description

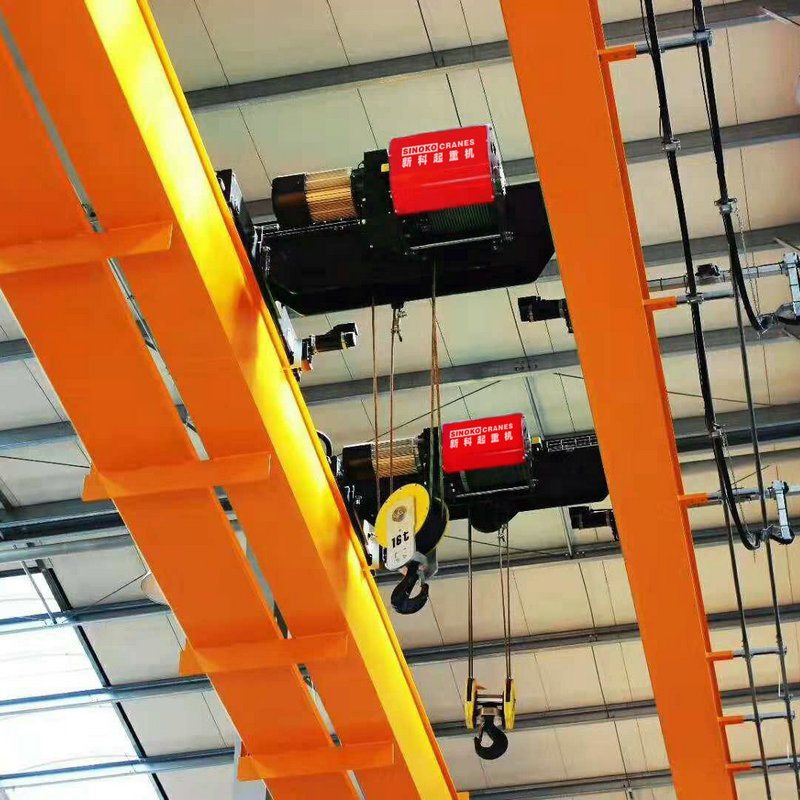

10t 20t 25t 50t Double girder overhead travelling beam crane
10t 20t 25t 50t Double girder overhead travelling beam crane
has features of tight dimensions, low building headroom, light dead weight and light wheel load. They are applicable to the transfer, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouse, goods yard and power station. They can also be used instead of common double girder overhead crane at production workshop in light textiles or food industry. It has two kinds
of classification, that is, light and medium. The working ambient temperature is generally -25℃ to 40℃. It is forbideen to work in environment with combustible, explosive or corrosive media.
of classification, that is, light and medium. The working ambient temperature is generally -25℃ to 40℃. It is forbideen to work in environment with combustible, explosive or corrosive media.
Specification
|
Model NO
|
CXTS
|
|
Condition
|
New
|
|
Type
|
Double Girder Crane
|
|
Load Capacity
|
5t to 80t
|
|
Lifting height
|
3 ~ 30 m or customized
|
|
Cross Speed
|
0~30 M/Min (VVVF)
|
|
Working Class
|
A5-A8
|
|
Origin
|
Henan, China
|
|
Working temperature
|
-20 ~ 40 ℃
|
|
Way to Control
|
Pendant Push Button / Wireless Remote Controller / Cabin
|
|
Trademark
|
SINOKO CRANES
|
|
Specification
|
CE, ISO
|
|
HS Code
|
8426112000
|
|
Safety device
|
Buffer,current overload protection,overload device,power failure protection
|
|
Application area
|
Factory,workshop,warehouse,power station,logstic,etc.
|
Advantages
1.Reasonable structure
2.Favorable performance
3.Smooth starting and stopping
4.Safe and reliable traveling
5.Low noise, commodious cabin and good view
6.Convenient maintenance, excellent exchangeability for parts and components
7.Energy saving,reduce energy consumption
8.Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9.Primer and finishing paint
2.Favorable performance
3.Smooth starting and stopping
4.Safe and reliable traveling
5.Low noise, commodious cabin and good view
6.Convenient maintenance, excellent exchangeability for parts and components
7.Energy saving,reduce energy consumption
8.Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9.Primer and finishing paint
