Quick Details
-
Voltage:
-
2200v/3380v50hz 3-phase
-
Power:
-
10kw
-
Dimension(L*W*H):
-
2100x1300x1700mm /pack size:2250*1400*1970
-
Weight:
-
2500kg
-
Produce Name:
-

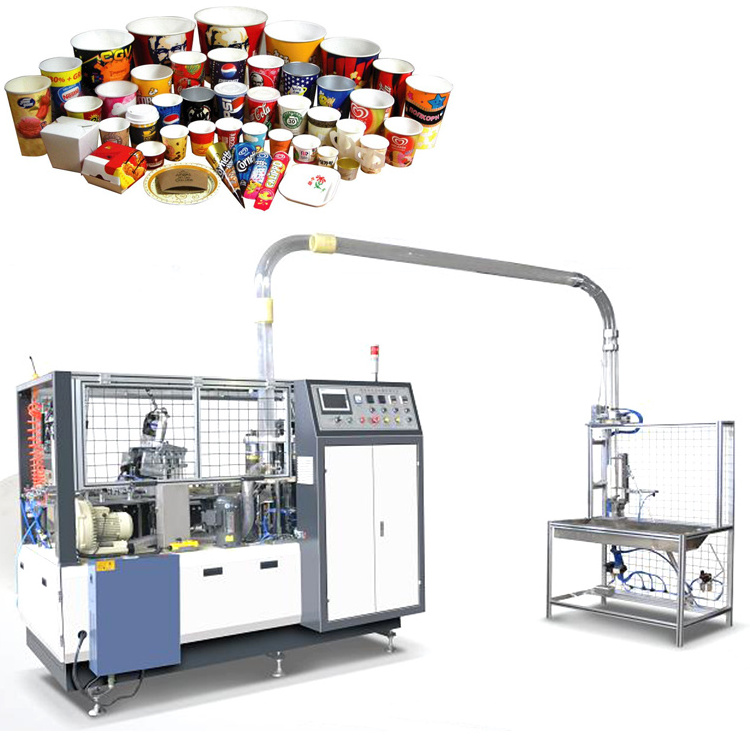

TYO-120 HIGH SPEED PAPER CUP MAKING MACHINE
-
Capacity:
-
105-120pcs/min
-
Total Power:
-
10kw
-
HSCode:
-
8441309000
-
Weight(N.W./G.W.):
-
2500kg
-
Paper Cup Size:
-
Cup high 35-135mm
-
Raw Material:
-
One-side or two-side
-
paper weight:
-
160-350g/m2 (single or double PE paper)
-
Cup Sealing:
-
ULTRASONIC/HOT SEALING SYSTEM
-
Bottom Knurling:
-
HOT WIND SYSTEM
Quick Details
-
Production Capacity:
-
105-120pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANYUE
-
Voltage:
-
2200v/3380v50hz 3-phase
-
Power:
-
10kw
-
Dimension(L*W*H):
-
2100x1300x1700mm /pack size:2250*1400*1970
-
Weight:
-
2500kg
-
Produce Name:
-
TYO-120 HIGH SPEED PAPER CUP MAKING MACHINE
-
Capacity:
-
105-120pcs/min
-
Total Power:
-
10kw
-
HSCode:
-
8441309000
-
Weight(N.W./G.W.):
-
2500kg
-
Paper Cup Size:
-
Cup high 35-135mm
-
Raw Material:
-
One-side or two-side
-
paper weight:
-
160-350g/m2 (single or double PE paper)
-
Cup Sealing:
-
ULTRASONIC/HOT SEALING SYSTEM
-
Bottom Knurling:
-
HOT WIND SYSTEM
1: Advanced indexing cam open structure .manufacturing precision,ensuring and stability of the machine operation.
2: Swiss import Leiter flameless hot air system, stable performance, high production efficiency.
3: Using high-strength structural profiles.compact machine structure stable.
4: AIl use of standardized parts production,versatility.excellent interchange eability ,casy maintenance of equipment.
5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Intelligent design.PLC automatic control.servo motor,automatic fault alarm.counting. detection.parking
7: Automatic shutdown isolation.
8:we use spray lubrication to add oil,so you only need to use three barrels of oil which is much less than other company
|
Main Technical Parameters |
|
|
Model |
TYO-120 HIGH SPEED PAPER CUP MAKING MACHINE |
|
Produce Name |
Single PE coated(Heat sealing) paper cup machine. Just for hot Drink is better |
|
Raw Material |
One-side or two-side PE coated paper(Singe PE or Double PE coated paper) |
|
Paper Cup Size |
40ml -16oz , bottom diameter:35 - 80 mm , Cup high 35 -135mm, Top diameter: 40-115mm cup bottom depth:4-12mm |
|
Suitable Size |
2 1 00x1 30 0x1700mm /pack size:2250*1400*1970 |
|
Total Power |
10kw |
|
Weight (N.W./G.W.) |
2500kg |
|
paper weight |
1 6 0-3 5 0g/m2 (single or double PE paper) |
|
Working Air Source |
AIR PRESSURE 0. 5 -0. 8 MPA ( USER SHOULD BUY AIR COMPRESSOR ) |
|
HSCode |
8441309000 |
|
Power Source |
220V 1 phase or 380V 3phase 50Hz, (Better use 380V 3-phase) We used 220v standard.if your power is different, Please declare in advance. |
TERM:
1). The Above prices are based on FOB Ningbo Port, China.
2). Payment: By Bank T/T Payment. 30% down payment, and balance for 70% payment before shipment
3). Delivery time: Within 35- 45 working days after receiving the deposit.
Port of loading: Ningbo China
4). Packaging: plastic film.
5) Warranty period: From the day of the use of the machine in the buyer's factory: 1year. The seller guarantees the mc are 100% new. The above clause is ONLY effective being properly used, any artificial misuse or destroy prepensely is not within the limit of Quality Guarantee.
6) Installations and Commissioning
(1) Up to date commissioning has been made before shipment.
(2) Overseas Commissioning and charges:
One technician will be sent to the buyer to guide the installation and commissioning of the equipment if the customer requests.
7) Supplementary conditions: If the buyer need seller's engineer to go to his factory to help install and test the mc, please be kindly bear their visa, go and return ticket, lodging and eating, salary US$100/ per day. But this can be negotiated by both sid e
