Quick Details
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
As per order
-
Weight (KG):
-
200 kg
-
Feeding materials:
-
powder,particles,pellet or other bulk materials
-
capacity:
-
as per order
Quick Details
-
Power:
-
0.3-5.5kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
300mm
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
As per order
-
Weight (KG):
-
200 kg
-
Feeding materials:
-
powder,particles,pellet or other bulk materials
-
capacity:
-
as per order
Introduction

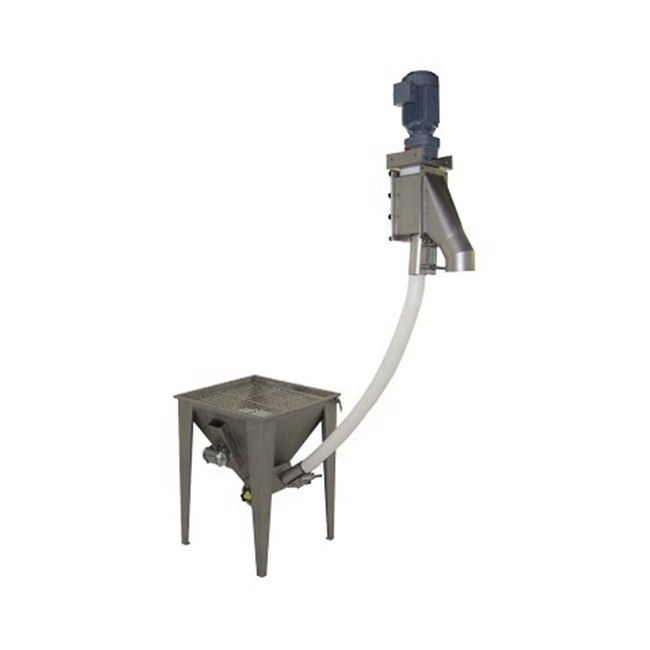

Spring feeding machine is mainly in power,granular,spherical, and other materials.Because of its good flexibility and bending,therefor suitable for different production layout requirements.This equipment mainly consists of inlet,outlet spring,PPR hose,motor and silo.The spring auger wire can be made into flat and round type,Because the round spring strength and toughness is better,having more wide application.In the same conditions,flat design has better output.
Technical Parameters
|
MODEL
|
CAPACITY
(KG)
|
SPEED
(r/min)
|
DIA OF TUBE(mm)
|
CONVEYING LENGTH(m)
|
POWER(kw)
|
VOLTAGE
(v)
|
|
CW-300
|
300
|
910
|
φ76
|
3,5,8,10,20
|
1.5/2.2/3.0
|
220/240/380/415/440/460
|
|
CW-700
|
700
|
910
|
φ90
|
3,5,8,10,20
|
1.5/2.2/3.0
|
220/240/380/415/440/460
|
Main Features
1)The temperature range is wide,the anti sticking line is good.
2)The baffle can be added,the angle of lifting is large.
4)The utility model has the characteristics of high strength,acid and alkali resistance,salt water,etc.
5)The utility is used for conveying under various environments.
PPR Tube
Circular Spring
Inlet Silo
Flat Spring
Conveying spring
Stainless steel pipe
Hopper
*Metallurgy metal mining industry:lead oxide,zinc powder,aluminum powder,iron powder
*Plastic industry:PVC powder etc
*Food powder:sugar,salt powder,soy milk powder etc
Q: How can I get the price quickly ? Please let us know
A1: Material bulk density
A2：Length and angle of conveying
A3：Material of machine (carbon steel Q235A, stainless steel SUS304 or SUS316, etc.materials)
A4：voltage and frequency (Hz) also need accurate quotation.
Q: What is the actual delivery time of your factory?
A: 7-15 days for general series products, 30-60 days for batch products and customized products according to different situations.
