- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
BN-STAINLESS STEEL MESH
-
Brand Name:
-
BN-STAINLESS STEEL MESH
-
Product name:
-
Stainless Steel Wire Mesh Screen
-
Usage:
-
Filter Net
-
Certification:
-
ISO9001:2008
-
Packing:
-
Standard Package
-
Width:
-
0.5m-3m
-
Length:
-
Customers' Requirement
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Filters
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
BN-STAINLESS STEEL MESH
-
Brand Name:
-
BN-STAINLESS STEEL MESH
-
Product name:
-
Stainless Steel Wire Mesh Screen
-
Usage:
-
Filter Net
-
Certification:
-
ISO9001:2008
-
Packing:
-
Standard Package
-
Width:
-
0.5m-3m
-
Length:
-
Customers' Requirement

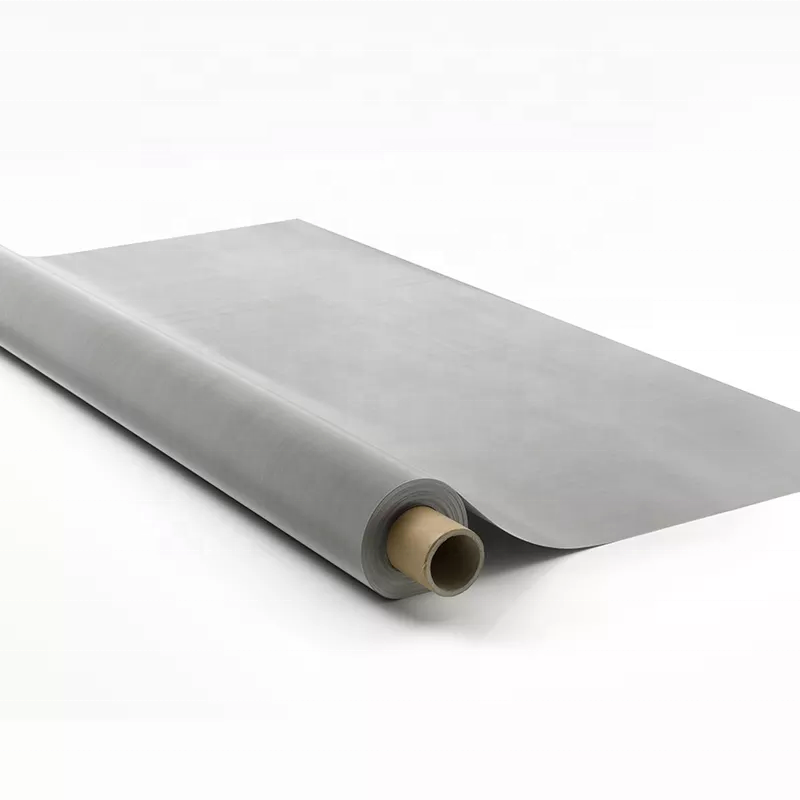

120 micron 304 stainless steel grid mesh woven metal fabric used in filtering
Features :
· Corrosion resistance
· Anti-acid and alkali
· Anti-high temperature
· Good filter performance
· Long using life
PLEASE KIND NOTE:
Special specifications are avaliable!
Please advice us your requested and order quantity of stainless steel wire mesh, we will give you an exact price as soon as possible.
1.Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc
2.Wire Diameter: 0.015-2.8mm
3.Mesh count:
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3500mesh
How to measure stainless steel wire mesh?
special material:410 430 904L etc
Wire diameter: 0.0.025mm-1.80mm
Mesh counts: plain weave 2-635 mesh, dutch weave 12*64-500*3200 mesh
Micron size: 20-500 micron
Weave style: plai/ twill/ dutch
Technique: woven
Feature: acid-resisting,alcali-resisting,wear and corrosion resistance
Application: Used imn mine, oil, chemical industry, pharmaceutical industry and machine-making etc.
Specifications
|
Type |
Mesh/Inch |
Wire diameter (inch) |
OPen Area |
Weight (LB) /100 Square Foot |
|
Plain,Twill Weave Wire Mesh |
1 x 1-635 x 635 |
0.0008"-0.08" |
25 to 84.6 |
2.53 to 41.1 |
|
Type |
Mesh/Inch |
Wire diameter (inch) |
Absolute Filtration Finess μ m |
Nominal Filtration Finess μ m |
|
Plain Dutch Weave Wire Mesh |
8 x 85-80 x 400 |
0.014'' x 0.0126''- 0.0049'' x 0.0028'' |
318-340 to 43-48 |
250-255 to 35-40 |
|
Twill Duntch Weave Wire Mesh |
20 x 250 - 500 x 3200 |
0.0098'' x 0.0079'' - 0.0015'' x 0.0010'' |
110-120 to 8-9 |
98-105 to 2-3 |
