Pendent line control 1 ton 2 ton 3 ton steel box type single beam overhead bridge crane

Pendent line control 1 ton 2 ton 3 ton steel box type single beam overhead bridge crane

FOB Reference Price: Get Latest Price

≥1 Sets

US $4800

≥3 Sets

US $4200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Span:: 7.5-22.5

Place of Origin:: Henan, China

Brand Name:: KUANGYUAN

Weight (KG):: 1550 kg

Product name:: 1 ton 2 ton 3 ton steel box type single beam overhead bridge crane

Speed:: Frequency Inverter

After Warranty Service:: Field maintenance and repair service

Certification:: CE ISO GOST

Keywords:: single beam overhead bridge crane

Control method:: Pendent line control

Lifting mechanism:: Electric Wire Rope Hoist

Girder Type:: Single Box

Color:: Clients' Requirments

Work Duty:: A3-A5

Quick Details

Max. Lifting Height:: 30m

Rated Lifting Moment:: Different

Max. Lifting Load:: 20 ton

Span:: 7.5-22.5

Place of Origin:: Henan, China

Brand Name:: KUANGYUAN

Weight (KG):: 1550 kg

Product name:: 1 ton 2 ton 3 ton steel box type single beam overhead bridge crane

Speed:: Frequency Inverter

After Warranty Service:: Field maintenance and repair service

Certification:: CE ISO GOST

Keywords:: single beam overhead bridge crane

Control method:: Pendent line control

Lifting mechanism:: Electric Wire Rope Hoist

Girder Type:: Single Box

Color:: Clients' Requirments

Work Duty:: A3-A5

Pendent line control 1 ton 2 ton 3 ton steel box type single beam overhead bridge crane

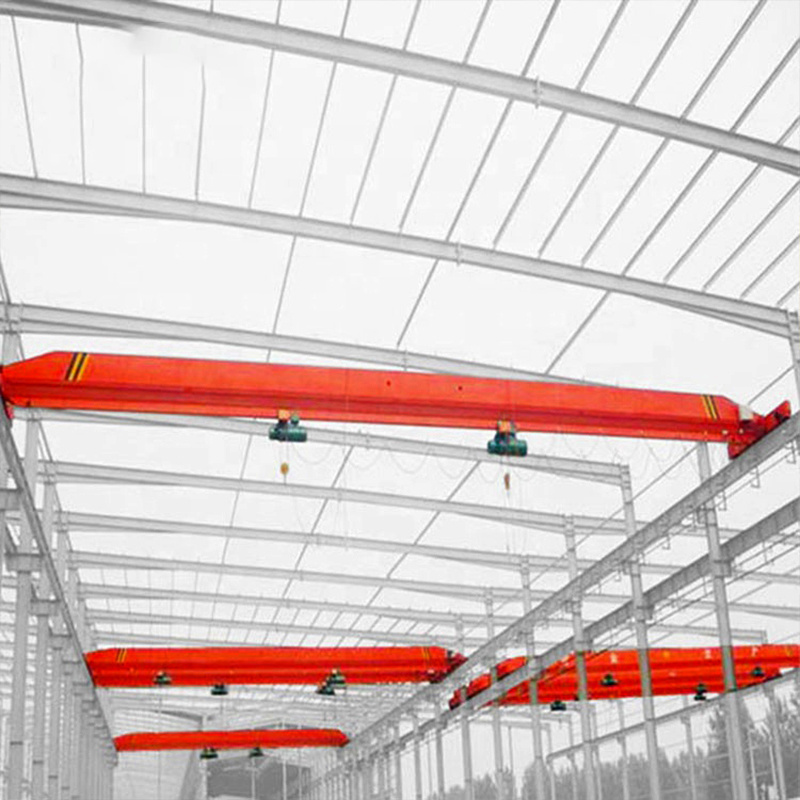

LDA electric single beam crane is composed of main beam, end beam, electric hoist and operating mechanism welded by steel plate and I-steel. The electric hoist runs along the lower flange of the main beam I-steel to complete the lifting of goods. It has the characteristics of light structure and convenient installation and maintenance. It is widely used in factories, warehouses, stockyards and other different occasions to lift goods. There are three operation modes: ground handle, wireless remote control and cab. There are two types of cabs,open and closed. The soft start motor and variable frequency speed regulation can be selected for the running motor according to the user's requirements. The crane starts smoothly and operates safely and reliably.

Benefits & Features：

1. We have the most competitive price in the industry.

2. Design rules for cranes GB/T3811-2008.Safety rules for lifting appliances GB6067.1-2010.

3. Eleven safety systems will ensure your safety.

4. It is widely used in plants, warehouse, and material stocks to lift goods.

5. Customized services such as lifting capacity and lifting height will meet your needs to the greatest extent.

6. Perfect pre-sale and after-sale service to solve your worries.

Specific parameters（take 20 tons as an example）

Crane traveling mechanism	WorKing speed(m/min)			20 Ground
		Speed ratio			58.78
		Motor	Type	YSE90L-4
				Power(Kw)	4*1.5
				Rotation speed(n/min)	7.5≤S≤31.5
Lifting Mechanism(electric hoist)&electric hoist traveling mechanism	Model ofelectric hoist			CD ₁ Model	MD ₁ Model
		Lifting speed(m/min)			3.5	3.5/0.35
		Hoisting height(m)			9、12.、18、24、30
		Traveling speed(m/min)			20
		motor			Cone squirrel-cage model
Working class					A3
Electric current					380V 50Hz three-phase
Wheel diameter					Φ270	Φ370
Width of track					51~70mm
