Quick Details
-
Model Number:
-
OEM
-
Mould material:
-
3Cr13;H13:2738
-
Cavity:
-
10 Cavities
-
Mould life:
-
500000-2000000 Shots
-
Surface treatment:
-
Polishing
-
Certification:
-
ISO9001:2000
-
Plastic material:
-
PVC
Quick Details
-
Shaping Mode:
-
Plastic Extrusion Mould
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AG
-
Model Number:
-
OEM
-
Mould material:
-
3Cr13;H13:2738
-
Cavity:
-
10 Cavities
-
Mould life:
-
500000-2000000 Shots
-
Surface treatment:
-
Polishing
-
Certification:
-
ISO9001:2000
-
Plastic material:
-
PVC

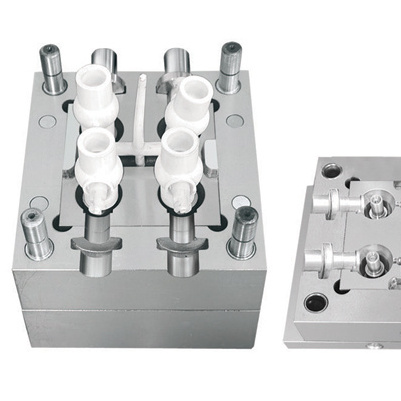

We are a professional plastic pvc pipe fitting injection mould manufacturer according to different customer ’ s
requirements.
The quotation will be offered based on the samples,or part drawing,or the sample photos.
Solidco mould co.,ltd will satisfies you both in mould quality and mould price.
We are looking forward to a solid cooperation with you
1. Mouldbase
Standardization
Use, whenever possible metric standards like LKM for all the mould components. (including guide
bushing, guide pin, ejector pin and so on.)
2. Moudbase surface finishing
All plates should be painted with automotive paint blue or green to protect against the corrosion.
3. Cores & cavities
The cores, cavities and inserts made of stainless steel, hardened and tempered up to 45-48 HRC.
Surface finish: Mirror Finish-Diamond Polished.
4. Core wedge blocks
To be manufactured from P20 local steel and heat treatment by gas nitriding.
Wedge blocks need to be located in deep pockets to prevent movement.
5. Steel hardness in general
It is good practice and necessary to have a difference of several points HRC hardness between
sliding steel mould parts to prevent pick up between the steel parts. For example any P20 core slides
or wear plates should be gas nitride
| our commitment |
All customer-centric,never betray long-term benifits for short-term benfits. |
| our scope of mould business |
Mold,injection molding,product assembly, surface printing,surface spraying integration |
| provide information as follow |
2D,3D,samples or pictures of multiple points of view with dimensions. |
| mould production cycles | 15--60days, on basis of the difficulty level |
|
plastic products production cycles |
7--15days |
| mould precision | 0.1mm |
| service life |
500-1000 thousand times
|
| cavity number of mold |
Single cavity,Multiple cavity or one mold with different products |
| mould material | P20,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
| runner system | Hot runner , Cold runner |
| surface treatment | Words corrosion,Mirror polish,Frosted surface,Dermatoglyph |
| mould standard | HASCO,DME or according to custom's request |
| main process |
Milling,grinding,CNC,EDM,wire-electrode cutting, carved, electrospark,lathe,surface treatment |
| design software | CAD, PRO-E, UG etc. |
| design time | Within 3 days(generally) |
| formed material |
ABS,PP,PC ,PA6,PA66, TPU,POM ,PBT,PVC,HIPS,PMMA, TPE,PC/ABS,TPV,TPO,TPR,EVA,HDPE. |
| quality assurance | ISO9001 |
| factory profile | 5000square meters,100 employees including 8 inspector |
1.Inquiry will be replied within 24hours.
2.Well-trained & experienced staff for pre-sales,ongoing sales and after-sale service is always ready to serve you in English.
3.OEM&ODM cap mould projects are welcome. We have strong R&D team.
4.Your information is confidential to any third party
Our Advantage:
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer
4. we will seive you with the top quolity and best price in china
