Quick Details
-
Place of Origin:
-
China Mainland
-
Brand Name:
-
Cahard
-
Model Number:
-
38mm Diamond Core Drill Bit
-
Product name:
-
Diamond Core Drill Bit For Fast Drilling Reinforced Concrete
-
Valid Length:
-
450 mm or other
-
Diameter:
-
different sizes acceptable
-
Material:
-
High quality Diamond, Full Cobalt Powder
-
Usage:
-
Drillimg Holes Drill Bit
-
Segment Size:
-
22mmX9mmX4.5mm
-
Factory Location:
-
Jiangxi,China
-
MOQ:
-
20 sets
-
OEM:
-
Accept
Quick Details
-
Type:
-
Core Drill Bit
-
Use:
-
Masonry Drilling
-
Finish:
-
Other
-
Place of Origin:
-
China Mainland
-
Brand Name:
-
Cahard
-
Model Number:
-
38mm Diamond Core Drill Bit
-
Product name:
-
Diamond Core Drill Bit For Fast Drilling Reinforced Concrete
-
Valid Length:
-
450 mm or other
-
Diameter:
-
different sizes acceptable
-
Material:
-
High quality Diamond, Full Cobalt Powder
-
Usage:
-
Drillimg Holes Drill Bit
-
Segment Size:
-
22mmX9mmX4.5mm
-
Factory Location:
-
Jiangxi,China
-
MOQ:
-
20 sets
-
OEM:
-
Accept

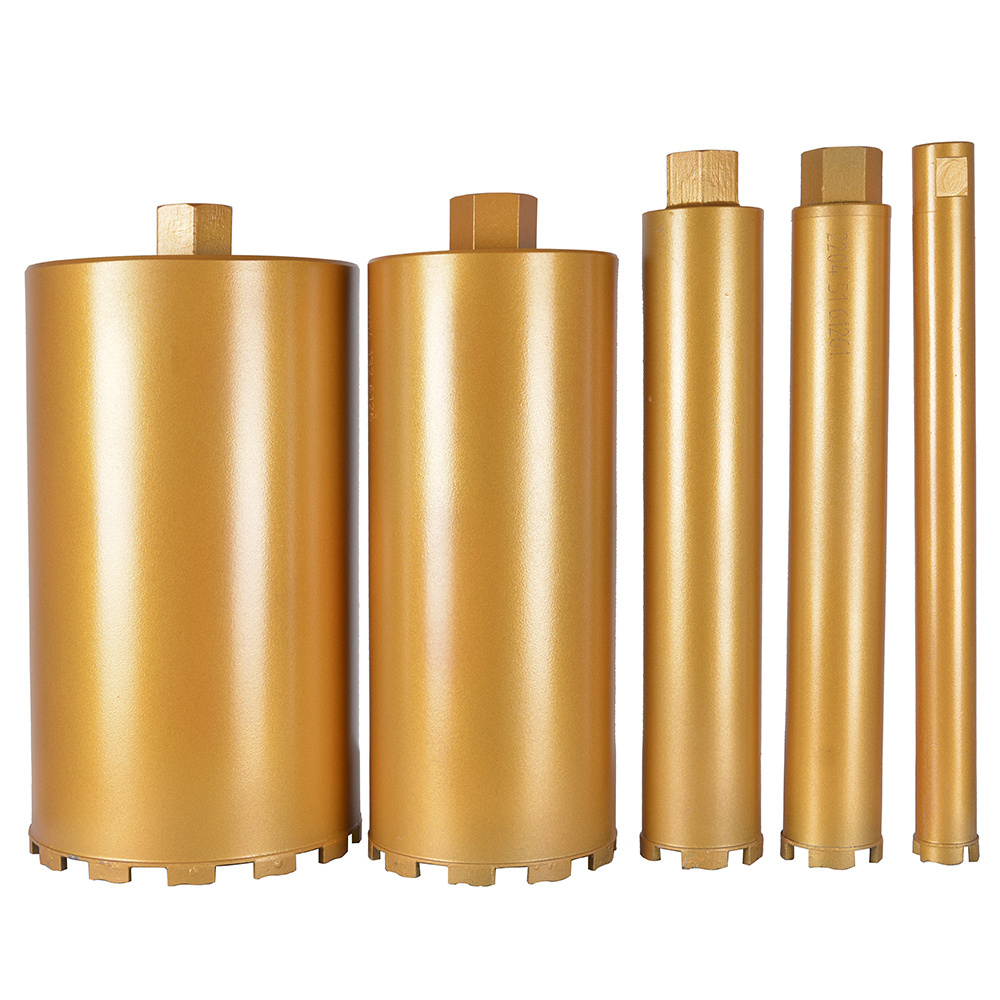

long life span High efficiency Diamond Core Drill bits for drilling concrete stones Produced by Cahard
We supply different models of drill bits,plz confirm which model you may need
|
NO. |
OD of Drill |
valid length(mm) |
Drill Teeth(mm) |
QTY of Teeth |
|
|
1 |
θ25mm |
1″ |
350~450 |
22*9*(3.5)4 |
3 |
|
2 |
θ32mm |
1-1/4″ |
350~450 |
22*9*(3.5)4 |
3 |
|
3 |
θ36mm |
1-1/2″ |
350~450 |
22*9*(3.5)4 |
3 |
|
4 |
θ38mm |
1-1/2″ |
350~450 |
22*9*(3.5)4 |
4 |
|
5 |
θ40mm |
1-2/3″ |
350~450 |
22*9*(3.5)4 |
4 |
|
6 |
θ44mm |
1-3/4″ |
350~450 |
22*9*(3.5)4 |
4 |
|
7 |
θ46mm |
1-4/5″ |
350~450 |
22*9*(3.5)4 |
4 |
|
8 |
θ51mm |
2″ |
350~450 |
22*9*(3.5)4 |
5 |
|
9 |
θ56mm |
2-1/4″ |
350~450 |
22*9*(3.5)4 |
5 |
|
10 |
θ58mm |
2-1/4″ |
350~450 |
22*9*(3.5)4 |
5 |
|
11 |
θ63mm |
2-1/2″ |
350~450 |
22*9*(3.5)4 |
6 |
|
12 |
θ76mm |
3″ |
350~450 |
22*9*(3.5)4 |
7 |
|
13 |
θ83mm |
3-1/4″ |
350~450 |
22*9*(3.5)4 |
8 |
|
14 |
θ89mm |
3-1/2″ |
350~450 |
22*9*(3.5)4 |
8 |
|
15 |
θ102mm |
4″ |
350~450 |
22*9*(3.5)4 |
9 |
|
16 |
θ108mm |
4-1/4″ |
350~450 |
22*9*(3.5)4 |
10 |
|
17 |
θ114mm |
4-1/2″ |
350~450 |
22*9*(3.5)4 |
10 |
|
18 |
θ120mm |
4-3/4″ |
350~450 |
22*9*(3.5)4 |
11 |
|
19 |
θ127mm |
5″ |
350~450 |
22*9*(3.5)4 |
11 |
|
20 |
θ132mm |
5-1/4″ |
350~450 |
22*9*(3.7)4.2 |
12 |
|
21 |
θ140mm |
5-1/2″ |
350~450 |
22*9*(3.7)4.2 |
12 |
|
22 |
θ152mm |
6″ |
350~450 |
22*9*(3.7)4.2 |
13 |
|
23 |
θ159mm |
6-1/4″ |
350~450 |
22*9*(4)4.5 |
14 |
|
24 |
θ167mm |
6-1/2″ |
350~450 |
22*9*(4)4.5 |
14 |
|
25 |
θ180mm |
7″ |
350~450 |
22*9*(4)4.5 |
15 |
|
26 |
θ202mm |
8″ |
350~450 |
22*9*(4)4.5 |
16 |
|
27 |
θ230mm |
9″ |
350~450 |
22*9*(4)4.5 |
18 |
|
28 |
θ255mm |
10″ |
350~450 |
22*9*(4)4.5 |
21 |
|
29 |
θ300mm |
12″ |
350~450 |
22*9*5 |
25 |
|
30 |
θ355mm |
14″ |
350~450 |
22*9*5.5 |
29 |
|
31 |
θ400mm |
15-1/2″ |
350~450 |
22*9*6 |
34 |
1. Each core drill bit is packed in an inner cardboard box, some inner box in an export standard cartons.
2. Delivery time: samples about 5~7days after payment, and bluk order about 15~25days after payment.
