individually controlled by many servo motors, can produce a variety of special-shaped spring, compression spring, double torsion spring, battery spring, flat spring (clockwork spring) and various wires molding and others. Precision accurate, debug machine quickly, stable and reliable.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
1500
-
Name:
-
CNC-1225 Camless Spring Machine
-
Max. spring OD:
-
2.5mm,3mm and 4.5mm
-
Item:
-
Wave Canted Coil Spring Machine
-
Color:
-
Gray/bule
-
Model:
-
CNC-1245
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KC
-
Dimension(L*W*H):
-
1550mm*1250mm*1770mm
-
Weight (KG):
-
1500
-
Name:
-
CNC-1225 Camless Spring Machine
-
Max. spring OD:
-
2.5mm,3mm and 4.5mm
-
Item:
-
Wave Canted Coil Spring Machine
-
Color:
-
Gray/bule
-
Model:
-
CNC-1245
Product Overview

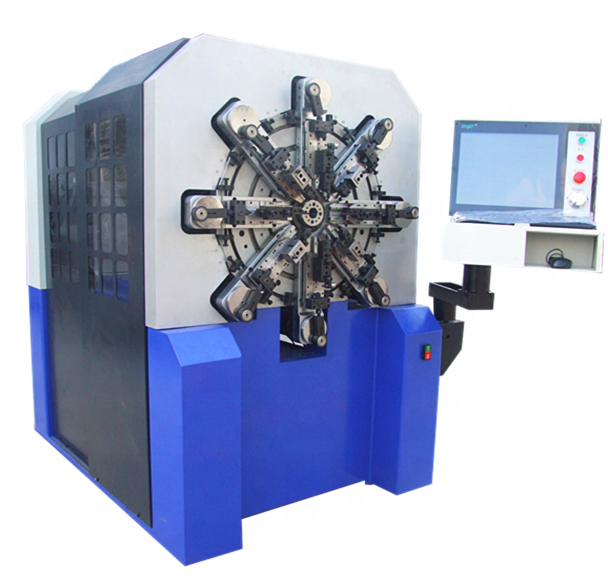

CNC-12-25 12-axis camless spring machine
Unique camless and non-rocker design, independently controlled by multiple sets of servo motors, can produce a variety of
special-shaped springs, compression springs, double torsion springs, battery springs, flat springs (spring springs) and various
wire forming . Precise and accurate, fast, stable and reliable.
Local functions and features:
1. No cam, no rocker design (the speed of the adjustment is more than 50% faster than the traditional cam machine, the
production speed is fast, the positioning is accurate, and the operation is stable).
2, full-rolling guide rail, long-term accuracy.
3, no collision machine and heat, composite tools to complete all processes, low tool loss. 4, intelligent module, automatic
detection and alarm.
5, Windows window operation, Chinese and English display, easy to learn and use.
special-shaped springs, compression springs, double torsion springs, battery springs, flat springs (spring springs) and various
wire forming . Precise and accurate, fast, stable and reliable.
Local functions and features:
1. No cam, no rocker design (the speed of the adjustment is more than 50% faster than the traditional cam machine, the
production speed is fast, the positioning is accurate, and the operation is stable).
2, full-rolling guide rail, long-term accuracy.
3, no collision machine and heat, composite tools to complete all processes, low tool loss. 4, intelligent module, automatic
detection and alarm.
5, Windows window operation, Chinese and English display, easy to learn and use.
FEATURES AT A GLANCE
The unique cam-free and rocker-free design
PRODUCT SPECIFICATIONS
|
Model
|
CNC-1225
|
CNC-1235
|
CNC-1245
|
|
|
Color
|
Grey/Blue(customize)
|
Grey/Blue(customize)
|
Grey/Blue
|
|
|
Diameter of the steel wire(mm)
|
0.2mm-2.5mm
|
1.2mm-3.5mm
|
1.5mm-4.5mm
|
|
|
Total power(kw)
|
14.8
|
19.2
|
25.8
|
|
|
Number of axes
|
12 axis
|
12 Axis
|
12 Axis
|
|
|
Number of the wire feed wheel
|
3 pairs
|
3 pairs
|
3 pairs
|
|
|
Servo motor: Wire feeding
|
2.9kw
|
4.5kw
|
5.5kw
|
|
|
Main machine size(mm)
|
1550*1250*1770
|
1650*1350*1880
|
2200*1760*2100
|
|
|
Net weight of machine(kg)
|
1400
|
2000
|
3500
|
|
PRODUCT CONFIGURATION
12 Axis
Japan Panasonic motor
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q: Why choose our machine ?
A: This machine is China famous brand . There are too many spring factories in China, there are good quality and bad quality products, and our products are verified by the majority of customers of good products.
And competitive prices among similar products.
Q: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
