Quick Details
-
Applicable Material:
-
tablet pill capsule food
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xiaoteng
-
Voltage:
-
220V/380V/110V
-
Dimension(L*W*H):
-
2400*1400*1500mm
-
Weight (KG):
-
600
-
Power (kW):
-
3KW
-
Product name:
-
Automatic Electronic Tablet Counter
-
Counting:
-
Tablet Capsule Soft Gel
-
Bottle Shape:
-
Square
-
Filling Quantity:
-
1-9999pcs/bottle (adjustable)
-
Applicable Capsule Size:
-
Capsule Size 00#-5#
Quick Details
-
Capacity (bottle/min):
-
30 - 200 bottle/min
-
Bottle Capacity (pcs/bottle):
-
2 - 9999
-
Capacity (pcs/h):
-
240000 pcs/h
-
Applicable Material:
-
tablet pill capsule food
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xiaoteng
-
Voltage:
-
220V/380V/110V
-
Dimension(L*W*H):
-
2400*1400*1500mm
-
Weight (KG):
-
600
-
Power (kW):
-
3KW
-
Product name:
-
Automatic Electronic Tablet Counter
-
Counting:
-
Tablet Capsule Soft Gel
-
Bottle Shape:
-
Square
-
Filling Quantity:
-
1-9999pcs/bottle (adjustable)
-
Applicable Capsule Size:
-
Capsule Size 00#-5#

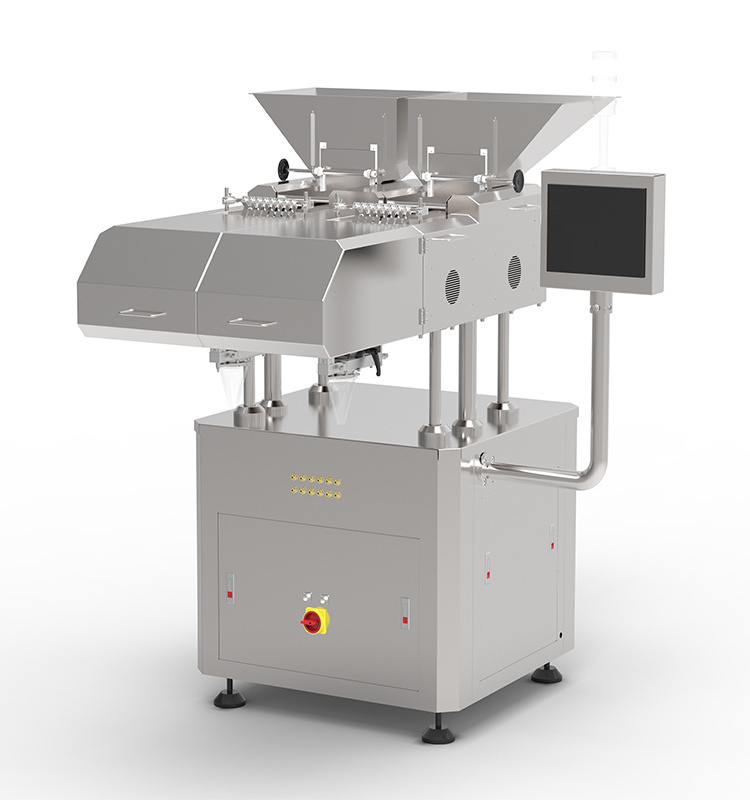

XT-DCE Series Tablets or Capsules counting machine
*Working Principle
Pour the pills into the top hopper when working.
Make the capsules or pills in the hopper gradually slide along the vibrating groove plate to the feeding gate t
hrough proper adjustment of the primary, intermediate and final vibration feeders.
And then the drop detection channel one by one, through the coordination of the circuit and the program to achieve the counting function.
Suitable for soft, hard capsules and transparent capsules, tablets, pills and other solid pills.
The track adopts two or three layers of steps. The drug granule goes downstream layer by layer, and the distance between the medical granule and the medical granule will be set according to the program, which can avoid the overlap phenomenon.
Machine Function
1、The electronic counting machine integrates photoelectric and microcomputer systems for accurate calculation. The countable products include tablets, capsules, ingots, soft capsules and clear capsules
without the need to replace or adjust any mechanical part
s.
2、
The filling quantity is adjustable without any error, the single bottle quantity range is: 1 ~ 9999 grains, equipped with a number of grains error automatic elimination system, to ensure more accurate number of grains,
the unqualified rate of the filling is within 0.1%
, and the unqualified quantity is 1 grain more. With debris removal function.
3
、
Automatic error elimination system is installed to
ensure more accurate count
.
4
、
When changing bottles of different heights, it
can be realized by electric adjustment
and upper and lower limit switch, which can be controlled on the touch screen
.
5
、
In case of equipment failure, the equipment will stop and the alarm stop information will be displayed on the screen. At the same time, the operation mode displayed on the screen will be used to eliminate the fault
.
6
The two shaft cylinder is used to control the bottle block,bottle filling, the structure is simple, the adjustment is convenient, the control is stable.
7、
The
filling head with automatic cleaning function
, the time can be adjusted according to the dust size, cycle range.
|
Model
|
XT-DCE
|
|
Vibrating track number
|
8/16/24
|
|
FillingVolume
|
1-9999/bottle
|
|
Filling Speed
|
1000-20000grain/min
|
|
Bottle Size
|
20-200mm(Diameter) 20-240mm(Height)
|
|
Power Supply
|
AC220V 50HZ
|
|
Machine Size
|
2600*1600*1530
|
FAQ
1. Are you the factory?
Yes. Our company engaged in packing machinery for ten years.
2. Can you do customized packing machine?
Yes,of course. We are specific packing machinery manufacturer with morn than 10 years experiences,we can do packing machinery according to the customer's requirements.
3. Is there any installation direction after we received the machine?
Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
4. Is there any insurance to guarantee my order from your company?
We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance. If you have any question please don't hesitate to contact us, we will give you a warm and rapid reply.
Yes. Our company engaged in packing machinery for ten years.
2. Can you do customized packing machine?
Yes,of course. We are specific packing machinery manufacturer with morn than 10 years experiences,we can do packing machinery according to the customer's requirements.
3. Is there any installation direction after we received the machine?
Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
4. Is there any insurance to guarantee my order from your company?
We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance. If you have any question please don't hesitate to contact us, we will give you a warm and rapid reply.
