Quick Details
-
Color:
-
RGB
-
Panel Size:
-
320mmx160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P8
-
Brightness:
-
>4500, 4500-6000 cd/sqm
-
pixel density:
-
15625
-
Contrast Ratio:
-
5000:1
-
Color Depth:
-
65536
-
Lifespan (hours):
-
100000
-
IP Rating:
-
65
-
HS Code:
-
8528591090
-
Resolution:
-
80x40
-
View Angle（H/V）:
-
140
-
Usage:
-
Outdoor
-
Pixels:
-
8mm
-
Refresh rate:
-
960-1920Hz
-
Life span:
-
96,360 hours
-
LED chip:
-
Epistar
-
Viewing angle:
-
140 /140
-
Scan mode:
-
1/4scan
-
Package:
-
wooden case
-
Material:
-
Iron
Quick Details
-
Application:
-
Outdoor, Video/Image/Text
-
Type:
-
LED
-
Brand Name:
-
CGH
-
Color:
-
RGB
-
Panel Size:
-
320mmx160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P8
-
Brightness:
-
>4500, 4500-6000 cd/sqm
-
pixel density:
-
15625
-
Contrast Ratio:
-
5000:1
-
Color Depth:
-
65536
-
Lifespan (hours):
-
100000
-
IP Rating:
-
65
-
HS Code:
-
8528591090
-
Resolution:
-
80x40
-
View Angle（H/V）:
-
140
-
Usage:
-
Outdoor
-
Pixels:
-
8mm
-
Refresh rate:
-
960-1920Hz
-
Life span:
-
96,360 hours
-
LED chip:
-
Epistar
-
Viewing angle:
-
140 /140
-
Scan mode:
-
1/4scan
-
Package:
-
wooden case
-
Material:
-
Iron
Products Description

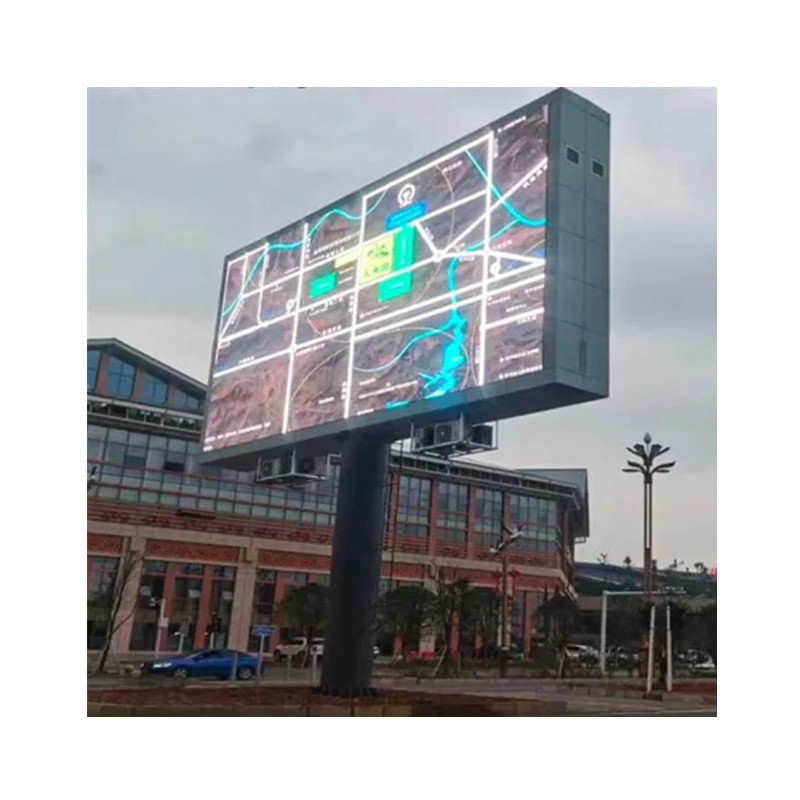

Outdoor LED display screens are generally installed in places with relatively dense traffic, so advertising is very suitable. Like our common outdoor large screens, there are shopping malls outdoor curtain wall LED large screens, column-type LED large screens, road display large screens and Campus outdoor large screen...Because of the large outdoor traffic, whether it is advertising, cultural penetration, event reminders, and outdoor visual experience, outdoor LED displays can satisfy
What pixel i need?
Minimum viewing distance: Pixel(mm) x1000
Optimal viewing distance: Pixel(mm)x3000
The farthest viewing distance: Screen height(cm)x3000
For example: if you choice P6 led display, screen size: 4mx3m
The minimum viewing distance: 6m
Optimal viewing distance: 18m
The farthest viewing distance: 3mx30m=90m
Minimum viewing distance: Pixel(mm) x1000
Optimal viewing distance: Pixel(mm)x3000
The farthest viewing distance: Screen height(cm)x3000
For example: if you choice P6 led display, screen size: 4mx3m
The minimum viewing distance: 6m
Optimal viewing distance: 18m
The farthest viewing distance: 3mx30m=90m
Outdoor Fixed Led Display Specification
Details Images
Led display combination
Led cabinet details
Accept size customize,can do concave,convex shapes
Light Sensor (Options)
Lighter sensor should be added on the led display. It can adjust the brightness of the screen according to the brightness of the day and night. In this way, the screen will not work continuously at the extreme brightness, the failure rate of the screen will be reduced, and the power consumption will also be reduced.
How to control led display screen
Application
Installation Instructions
1. Make the frame.
Our engineer will draw the drawing for you, you make the frame in your local
2. Fixed led display cabinet on frame
3. Connect power cable and date cable through the hole
4.
Do the edging to ensure that no water enters above it
5. Debugging (dowanload software)
Our Technical support
1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. Multi-language software Guidance
