Quick Details
-
Voltage:
-
380V,50HZ,3phase
-
Dimension(L*W*H):
-
2200*1000*1500mm
-
Weight:
-
350 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Capacity of chicken pellet mill:
-
800-1000kg/h Machine Pellet
-
Product name:
-
farm use feed pellet plant
-
Model of poultri feed mill:
-
SZLH-320 Feed Processing Machine
-
Motor of feed pellet line:
-
37kw pellet machin
-
Raw material:
-
grass,straw,corn,beans,wheat bran,fish meal etc.
-
Pellet diameter of ring die:
-
2.5/3/4/6/8/10mm feed pellet machin
-
Length of pellet:
-
Adjustable
-
Keywords:
-
cattle feed plant feed mill mach
-
Certification of Feed Mill:
-
CE feed mill mach
Quick Details
-
Max. Capacity:
-
1ton/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LEABON Chicken Feed Mill
-
Voltage:
-
380V,50HZ,3phase
-
Dimension(L*W*H):
-
2200*1000*1500mm
-
Weight:
-
350 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Capacity of chicken pellet mill:
-
800-1000kg/h Machine Pellet
-
Product name:
-
farm use feed pellet plant
-
Model of poultri feed mill:
-
SZLH-320 Feed Processing Machine
-
Motor of feed pellet line:
-
37kw pellet machin
-
Raw material:
-
grass,straw,corn,beans,wheat bran,fish meal etc.
-
Pellet diameter of ring die:
-
2.5/3/4/6/8/10mm feed pellet machin
-
Length of pellet:
-
Adjustable
-
Keywords:
-
cattle feed plant feed mill mach
-
Certification of Feed Mill:
-
CE feed mill mach
Product Description
Brief introduction - Feed Pellet Machine
SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
Specification
|
Model
|
Power
|
Capacity
|
Diameter of Ring Die
|
Pellet Size
|
|
SZLH-320
|
37KW
|
2-3T/H
|
320MM
|
2/2.5/3/4/6/8/10mm
|
|
SZLH-350
|
55KW
|
3-5T/H
|
350MM
|
2/2.5/3/4/6/8/10mm
|
|
SZLH-420
|
90KW
|
10T/H
|
420MM
|
2/2.5/3/4/6/8/10mm
|

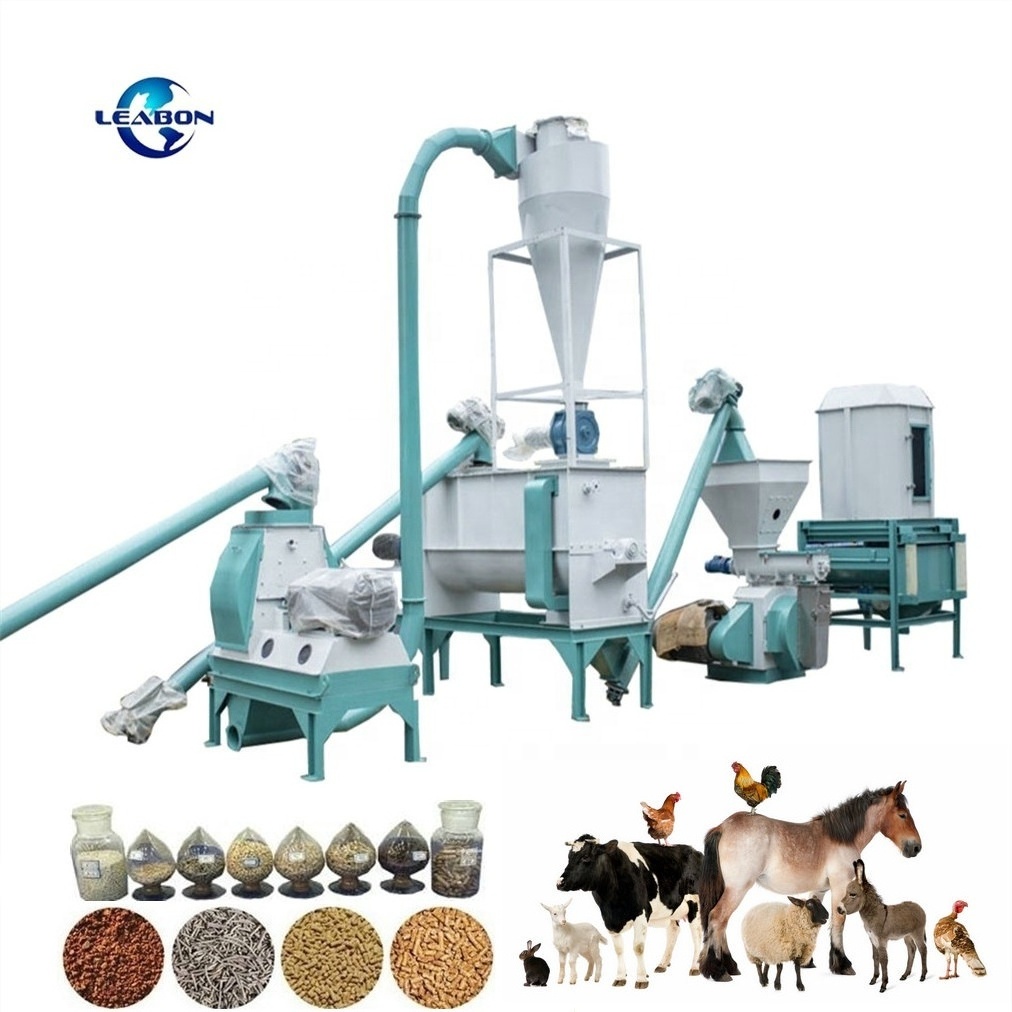

Complete Line
Different Capacity Complete Feed Pellet Production Line Supply
Equipment List of Feed Pellet Line
1). Hammer Mill
2). Feed Mixer
3). Feed Pellet Machine
4). Counter Flow Cooler
6). Packing Machine
7). Pellet Crumbler
8). Rotary Screening Machine
9). Control Cabinet
1. Hammer Mill
Used to crushing maize, soybean, oil cake, etc grains
material into powder feed.
5. Pellet Crumbler
Used to crumbling big size feed pellet into smaller one.
then feeding for small edge broiler.
2. Feed Mixer
Used to mixin
g different kind of powder feed uniformly
together, then making feed pellet.
6. Rotary Screening Machine
Used to screening the crumbling feed pellet, screening the
dust and grading different size feed pellet.
3. Feed Pellet Machine
Used to making mixed powder feed into feed pellet for
chicken, broiler, cattle, sheep, rabbit pig, fish etc animals.
7. Packing Machine
Used to packaging feed pellet into bag, convenient for
stock, for sale and transportation.
4. Colunter Flow Cooler
Used to cooling hot feed pellet, decrease the temperature
and humidity of feed pellet.
8. Control Cabinet
Used to control all machines of complete feed pellet
production line plant at production site.
Packing & Delivery
Before delivery, all machine will be packaged into wooden box and then loading into 40HQ OR 20GP Container shipment to customer by sea.
