Quick Details
-
Brand Name:
-
Hunan Zhenhua
-
Model Number:
-
DRX-II-SPB
-
Temperature range:
-
600~1600oC
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Hunan Zhenhua
-
Model Number:
-
DRX-II-SPB
-
Temperature range:
-
600~1600oC

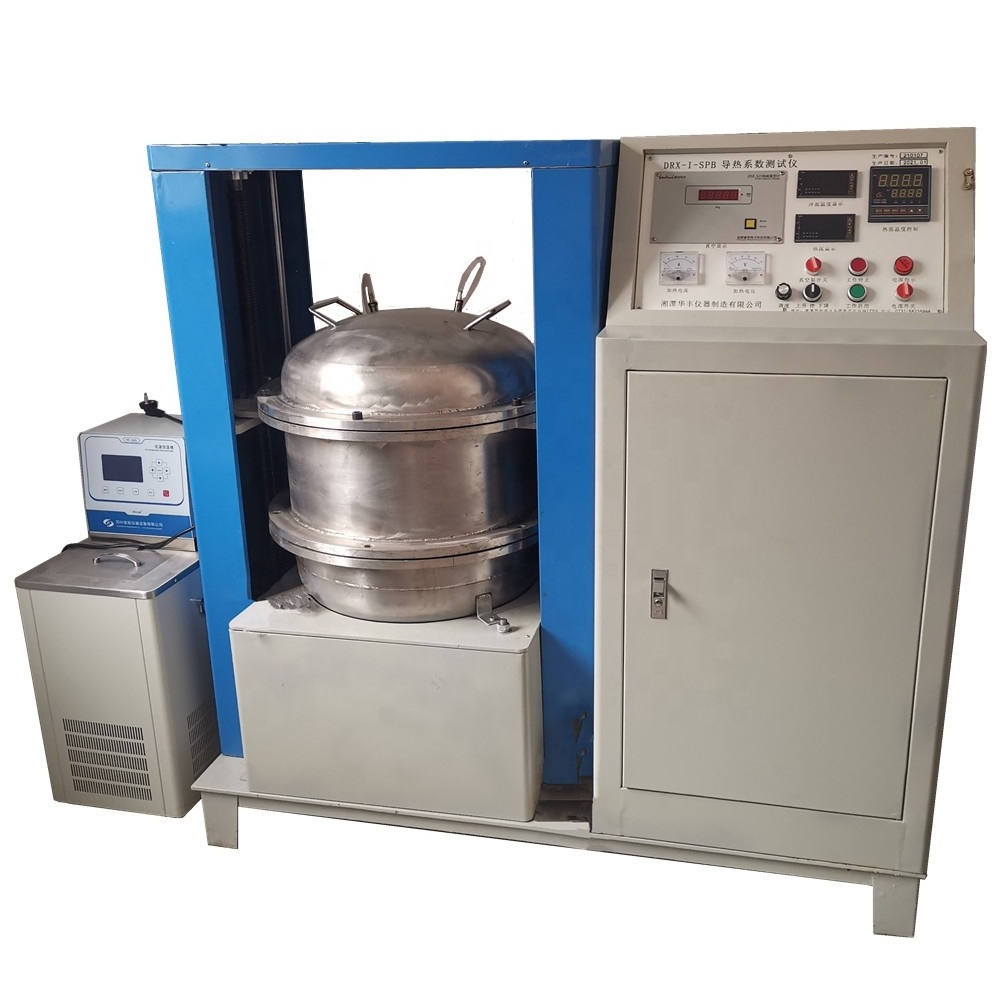

DRX-II-SPB Carbon Material Graphite Felt High Temperature Thermal Conductivity Testing Instrument
The tester is mainly used to test low thermal conductivity of carbon felt, refractory materials, refractory carbon fiber products, heat insulating brick and board, and thermal conductivity of fire-resistant materials and powdery materials. It achieves automatic control by applying industrial PC, with friendly interface, high precise temperature control, and printing test report automatically.
Referential standards:
GB/T 17911.8-2002 Refractory Ceramic Fiber Products--Determination of Thermal Conductivity ASTM C201 Standard Test Method for Thermal Conductivity of Refractories, YB/T 4130-2005.
Main technical parameters:
1. Range of thermal conductivity: 0.03 ~ 2.7W / m. K;
2. Accuracy: ± 3%;
3. Furnace temperature ( o C): 600~ 1600;
4. Heating mode: 1600 ℃ heating by molybdenum rods.
5. The test chamber can be filled with protect atmosphere or be vacuum.
6. Sample thickness: 50mm
7. Sample size (mm): Φ120 ×( 30-50) mm, it can be changed based on users requirements;
8. Cold pole heat flow is measured by heat flow sensor
9. The pressure can be adjusted: 0 ~ 0.1 Mpa, and the furnace body is cooled with cooling water;
10. Power supply: 380V, 12kw.
11. Connect the computer to achieve automatic testing, data printing output.
*12. According to users requirement can order vacuum system ≤200Pa . ( Optional )
13. Complete list of products:
|
Item no. |
Name |
Model/Size |
Unit |
Qty |
Marks |
|
1 |
Thermal Conductivity Machine |
DRX-I-SPB |
set |
1 |
|
|
2 |
Thermostatic Water Cabinet |
|
set |
1 |
|
|
3 |
Molybdenum rod W type |
|
piece |
4 |
2 for spare |
|
4 |
User manual of DRX-I-SPB |
|
piece |
1 |
|
|
5 |
Manual of the intelligent digital instrument |
|
piece |
1 |
|
|
6 |
Manufacturer certificate |
|
piece |
1 |
|
|
7 |
Testing software |
|
piece |
1 |
USB |
Liaoning JinGu carbon material co. LTD
Tianjin Polytechnic University
Shandong University
Zhongji Southwest Energy Technology co. LTD
Anhui Hongchang new material co. LTD
National University of Defense Technology
Wuhan SiFang photoelectric technology co., LTD
Duowei Green Building Technology co. LTD
We are specialized in tester, instrument&furnace of ceramics, inorganic non-metallic materials, glass,cement&engineering testing.
1 Delivery date: 35days
2.Payment terms: TT 30% in advance as the deposit, the balance to be paid before shipment.
3.Package: standard exporting plywood case.
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
