Quick Details
-
Model Number:
-
LZZBJ9-10
-
Coil Number:
-
1 2 3
-
Use:
-
Current transformer
-
Coil Structure:
-
1 2 3
-
Product name:
-

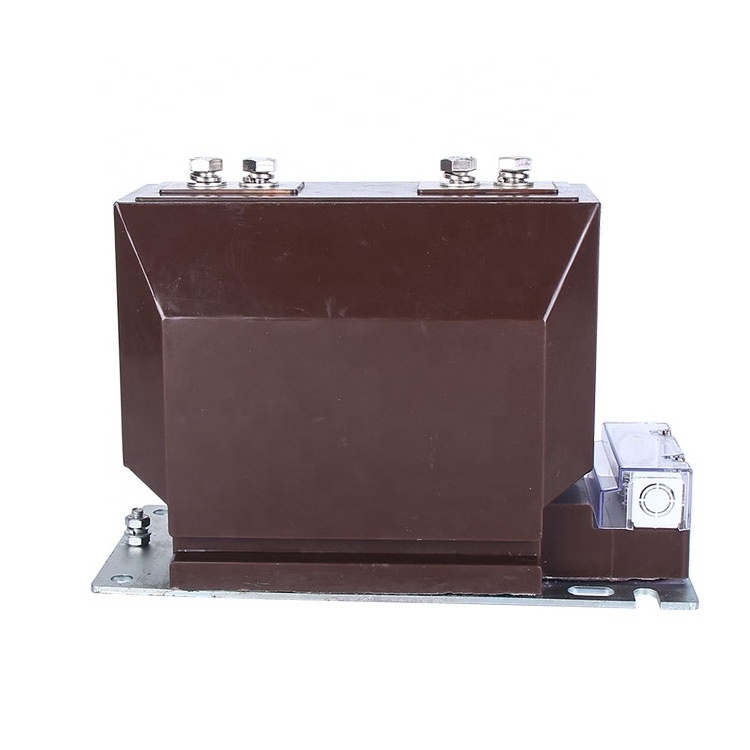

Indoor current Transformer
-
Model:
-
LZZBJ9-10
-
Accuracy level:
-
0.2S/0.5/10P10
-
Rated voltage:
-
10KV
-
Frequency:
-
50/60Hz
-
Rated current:
-
1A/5A
-
Application:
-
Energy Monitoring
-
Usage:
-
Electronic
-
Standard:
-
GB20840.2-2014
Quick Details
-
Phase:
-
Three
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VKSELE
-
Model Number:
-
LZZBJ9-10
-
Coil Number:
-
1 2 3
-
Use:
-
Current transformer
-
Coil Structure:
-
1 2 3
-
Product name:
-
Indoor current Transformer
-
Model:
-
LZZBJ9-10
-
Accuracy level:
-
0.2S/0.5/10P10
-
Rated voltage:
-
10KV
-
Frequency:
-
50/60Hz
-
Rated current:
-
1A/5A
-
Application:
-
Energy Monitoring
-
Usage:
-
Electronic
-
Standard:
-
GB20840.2-2014
Application:
Summary:
The current transformer of the type LZZBJ9-10 is casting unsaturated resin busbar type product. It is used formetering current and electric energy, relay protection in the electrical system of rated frequency 50Hz or 60Hz and ratedvoltage 0.5kV.The current transformer has the character of small volume , lightweight, superior insulation and so on.Thetransformer can be executed according to the standards IEC44-1:1996 and GB1208-2006 <Current transformer>.
Construction:
The current transformer is full enclosed busbar type structure. The primary and secondary windings and iron core are insulated by epoxy resin. The middle hole is used for busbar going through. The secondary outlet is wrapped by outlet box, which can prevent from stealing electricity.
Type designation:
Technical date:
| Rated primary current (A) | Short-time thermal current (KA/S) | Rated dynamic current (KA) | Class combination | cosΦ=0.8 Accuravy class and relativerated output | Surface creepage distance(mm) | |||
| 0.2(S) 0.5S | 5P10 10P10 | 5P15 10P15 | 5P20 10P20 | |||||
| 5-150 | 100| 1n | 250| 1n | 0.2(S)/5(10)P 0.5(S)/5(10)P 0.2(S)/0.2(S) 0.2(S)/0.5(S) 0.2(S)/0.5(S)/ 5 (10)P | 10 | 15 | 15 | 15 | 245 |
| 200-300 | 31.5 | 80 | ||||||
| 400 | 45 | 112.5 | ||||||
| 500-600 | 63 | 130 | ||||||
| 800 | 80 | 160 | 15 | 20 | 20 | |||
| 1000-1250 | ||||||||
| 1500-3150 | 100 | |||||||
