Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YAOU
-
Dimension(L*W*H):
-
858*450*699
-
Weight:
-
100
-
Rated power/speed:
-
16.2/2200
-
Certification:
-
ISO
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Showroom Location:
-
UAE
Quick Details
-
Displacement:
-
1.2L
-
Emission Standard:
-
Euro 4
-
Power:
-
10HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YAOU
-
Dimension(L*W*H):
-
858*450*699
-
Weight:
-
100
-
Rated power/speed:
-
16.2/2200
-
Certification:
-
ISO
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Showroom Location:
-
UAE
Product Description
Mainly produces small and medium-power diesel engines with a power range of 1.7 to 100 kilowatts and a total of more than 1,000
varieties. The products are used in vehicle transportation, agriculture, engineering machinery, ships and other fields.Fuel
saving, high power, high torque, strong power, suitable for walking tractors, transport models, small engineering models,
generator sets, pump units, agricultural irrigation
varieties. The products are used in vehicle transportation, agriculture, engineering machinery, ships and other fields.Fuel
saving, high power, high torque, strong power, suitable for walking tractors, transport models, small engineering models,
generator sets, pump units, agricultural irrigation
|

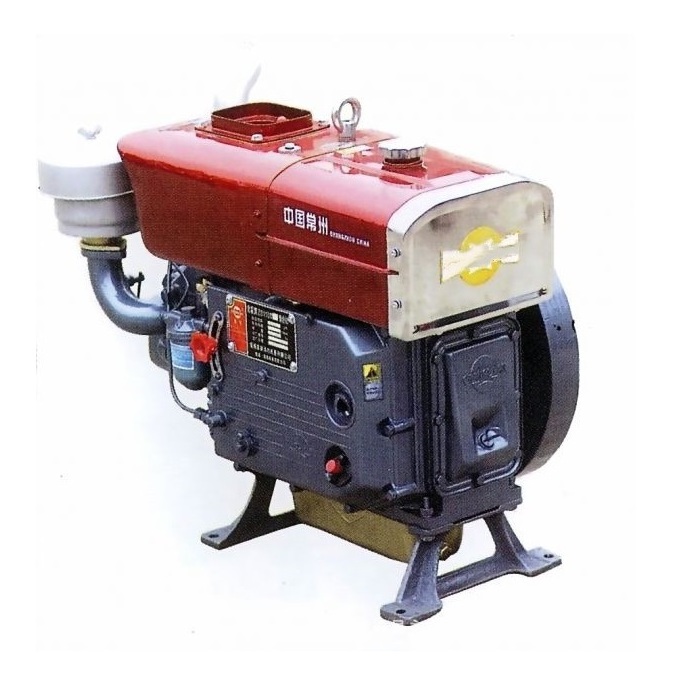

TYPE
|
ZR190/ZS1115
|
|
Speciation
|
sigle cylinder ,horizontal,water cooled,four stroke
|
|
Combustion mode
|
Direct injection
|
|
Cylinder diameter(mm*mm)
|
90*90
|
|
Displacement(L)
|
0.573
|
|
Standard Power(KW)
|
7
|
|
Maximum power(KW)
|
7.7
|
|
Standard RPM(r/min)
|
2300
|
|
Calibration of fuel consumption rate in working conditions(g/kw.h)
|
240
|
|
Cooling
|
Evaporative or heat-dissipating water tank
|
|
Lubrication mode
|
Pressure Splash
|
|
Startup mode
|
Hand shake or electric start
|
|
Net weight(KG)
|
100
|
Detailed Images
Integrated flat water tank.
Large plate flywheel drive with high efficiency and sufficient power.
All-copper motor with toothed flywheel, easy to start .
Aluminum side cover, earthquake resistant and durable.
Diesel filter cup, filter impurities, so that combustion more fully.
Muffler, effectively filter impurities in the air, reduce noise.
