Type
|
Matched Thermocouple
|
Graduated No. of Thermocouple
|
Alloy Conductor
|
|
Color of Insulation
|
|
||
|
|
|
|
Positive Pole
|
Negative Pole
|
Positive Pole
|
Negative Pole
|
||
|
SC
|
Platintml-rhodiuml0-Platinum
|
S
|
SPC (copper)
|
SNC(copper-Nickel
|
Red
|
Green
|
||
|
RC
|
Platinum-rhodium13-Platinum
|
R
|
RPC(copper)
|
RNC(copper-Nickel)
|
Red
|
Green
|
||
|
KC
|
Nickel-chrome-Nickel-silicon
|
K
|
KPC(copper)
|
KNC(copper-Nickel)
|
Red
|
Blue
|
||
|

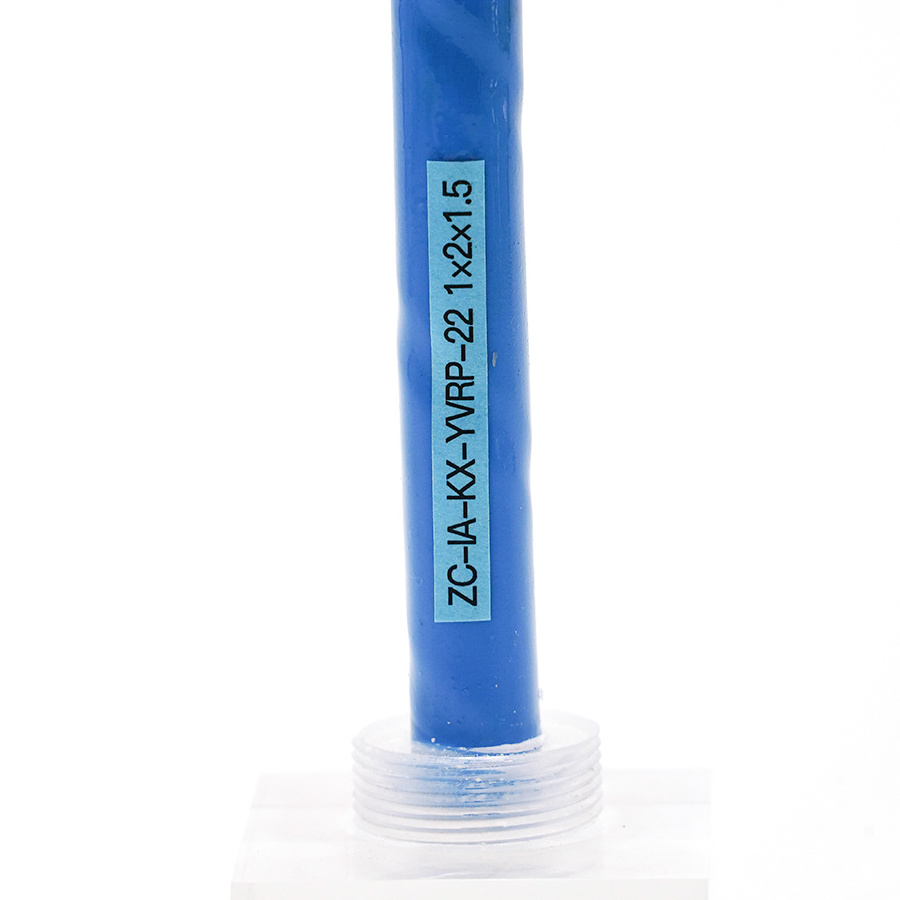

KX
|
|
|
KPX(Nickel-Chrome)
|
KNX(Nickel-silicon)
|
Red
|
Black
|
||
|
NC
|
Nickel-chrome-silicon-Nickel-silicon
|
N
|
NPC(lron)
|
NNC(Copper-Nickel)
|
Red
|
Gray
|
||
|
NX
|
|
|
NPX(Nickel-Chrome-silicon)
|
NNX(Nickel-silicon)
|
Red
|
Gray
|
||
|
EX
|
Nickel-chrome-Copper-nickel
|
E
|
EPX(Nickel-Chrome)
|
ENX(Copper-Nickel)
|
Red
|
Brown
|
||
|
JX
|
Iron-Copper-nickel
|
J
|
JPX(lron)
|
JNX(copper-Nickel)
|
Red
|
Purple
|
||
|
TX
|
Copper-Copper-nickel
|
T
|
TPX(copper)
|
TNX(copper-Nickel)
|
Red
|
White
|
||
