Quick Details
-
Voltage:
-
220V/110V
-
Power:
-
0.8kw
-
Weight:
-
65 KG
-
Dimension(L*W*H):
-
335*490*910mm
-
Year:
-
2022
-
Name:
-
fresh coconut peeling machine
-
Application:
-
fresh coconut peeling machine
-
Function:
-
fresh coconut peeling machine
-
Product name:
-
fresh coconut peeling machine
-
Material:
-
Stainless Steel
-
Usage:
-
fresh coconut peeling machine
-
Capacity:
-
6-10 pcs/min
-
Item:
-
fresh coconut peeling machine
-
Feature:
-
High Efficiency
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANMAX
-
Type:
-
peeler
-
Voltage:
-
220V/110V
-
Power:
-
0.8kw
-
Weight:
-
65 KG
-
Dimension(L*W*H):
-
335*490*910mm
-
Year:
-
2022
-
Name:
-
fresh coconut peeling machine
-
Application:
-
fresh coconut peeling machine
-
Function:
-
fresh coconut peeling machine
-
Product name:
-
fresh coconut peeling machine
-
Material:
-
Stainless Steel
-
Usage:
-
fresh coconut peeling machine
-
Capacity:
-
6-10 pcs/min
-
Item:
-
fresh coconut peeling machine
-
Feature:
-
High Efficiency
Product Description

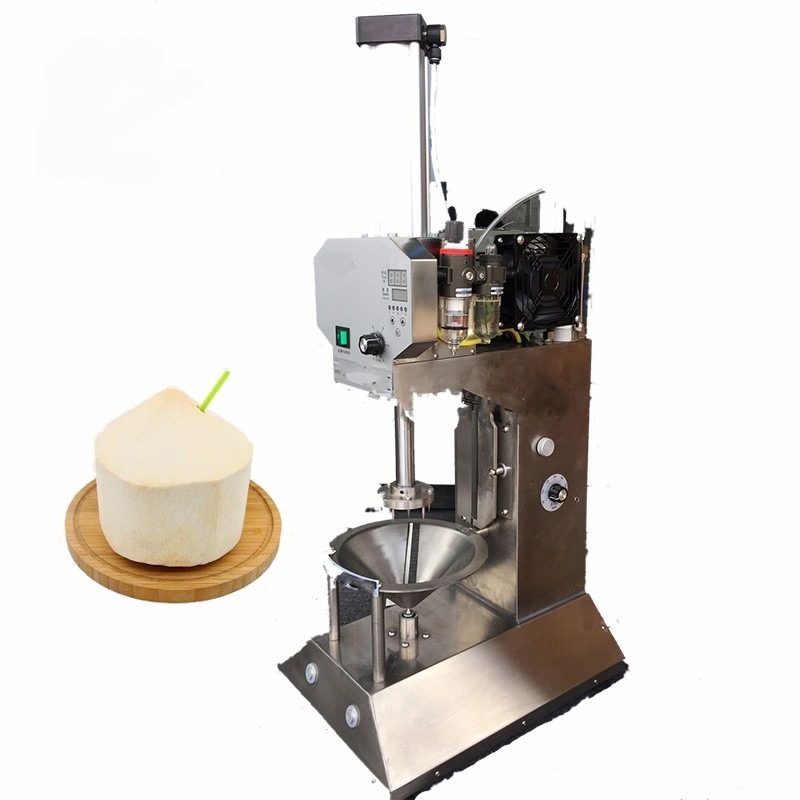

Feature of coconut shelling machine/tender coconut peeling machine price :
1.Coconut trimming machine can cut nice diamond shape coconut in the blink of eyes, as easy as handle a washing machine.
2.It features good material,high efficiency, desktop volume, easy to handle, hygienic and low noise.
3.The material of contacting parts is all made of high quality stainless steel ,that fits the standard of food processing machine.
4.There are 2 blades for trimming top and body separately,so you can choose how to trim and trim for your various purposes.
Installation Instructions
Steps installation
• Put the machine on a flat place; adjust the 4pcs food pad to make sure it in horizontal position. • Turn on the black button of air source processing part, add lubricating oil to oil level, and then fasten the black button. • Pull out the blue tube of pipe joint in convertor of air/liquid on the top of the machine, and then insert the unconnected tube into this pipe joint. Then check the oil level is in the middle position or not. • Insert one side of tube into pipe joints, the other side connects to air compressor. • Plug in power wire, turn on power.
Adjustment and operation
1 Adjustment of diameter and speed • Adjust the side scale to wanted diameter, the diameter range is 100-160mm; refer to “Parameter setting”. • Press “Start”, the machine is peeling automatically. • Rotate clockwise, the speed decreases; rotate anticlockwise, the speed increases. • Repeat the step2, until peeling finished; the number value would be 10-18mm/s in the speed screen. 6.2 Peeling operation • Put coconut on the cone shape plate, press” start” button, peeling starts. If the pneumatic gripper is not on the head, press “ Reset” button. • When the pneumatic gripper reaches the peak, finish peeling, take out coconut, then put another one. • If want to cancel the peeling operation, press” reset”, the machine is automatically reset.
