Quick Details
-
Voltage:
-
220V, 50HZ/380V, 50HZ
-
Power:
-
4kw
-
Dimension(L*W*H):
-
3250mm*1100mm*1850mm
-
Weight:
-
950 kg
-
Marketing Type:
-
New Product
-
Product Name:
-
Napkin Machine
-
Folding Way:
-
1/4, 1/6, 1/8 Fold
-
Embossing Roller:
-
Steel to Wool Roller
-
Finished Products:
-
Napkin Paper, Serviette Tissue
-
Printing Method:
-
1-2 Colors Print Can be Ordered, Rubber Plate Printing
-
Control System:
-
Variable Frequency Speed Control
-
Counting System:
-
Automatic Electronic Counting
-
Embossing Type:
-
Customized
-
Raw Paper Width:
-
180~500mm
Quick Details
-
Production Capacity:
-
150 pcs/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fuyuan
-
Voltage:
-
220V, 50HZ/380V, 50HZ
-
Power:
-
4kw
-
Dimension(L*W*H):
-
3250mm*1100mm*1850mm
-
Weight:
-
950 kg
-
Marketing Type:
-
New Product
-
Product Name:
-
Napkin Machine
-
Folding Way:
-
1/4, 1/6, 1/8 Fold
-
Embossing Roller:
-
Steel to Wool Roller
-
Finished Products:
-
Napkin Paper, Serviette Tissue
-
Printing Method:
-
1-2 Colors Print Can be Ordered, Rubber Plate Printing
-
Control System:
-
Variable Frequency Speed Control
-
Counting System:
-
Automatic Electronic Counting
-
Embossing Type:
-
Customized
-
Raw Paper Width:
-
180~500mm
Product Description

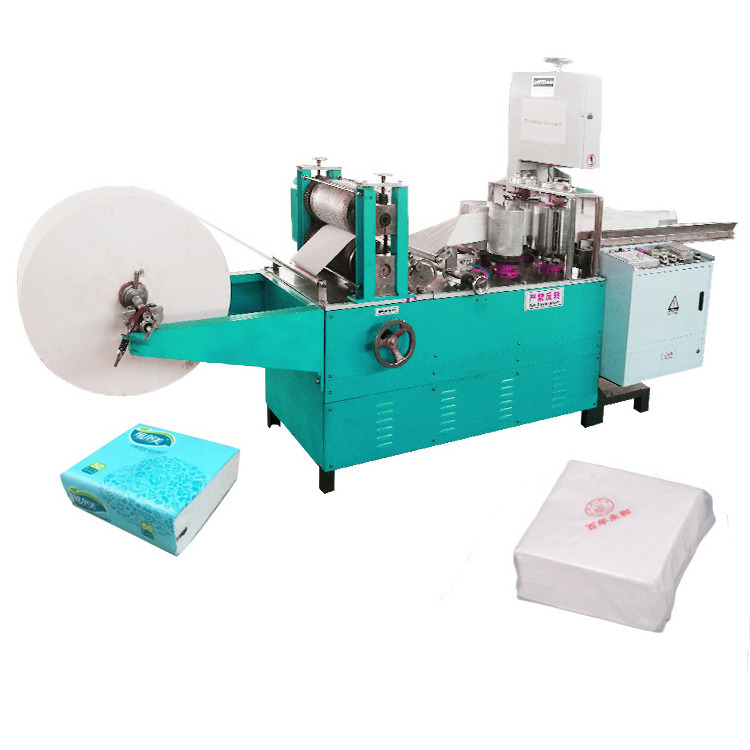

The high-speed napkin machine is used for embossing, folding, electronic counting, cutting and processing into a square napkin.The production process is automatically embossed and folded without manual folding. The pattern of the napkin can be made according to the needs of users. Different clear and beautiful patterns.
Specification
|
Machine Model
|
FY 180-500
|
|
Finished Size(mm)
|
180mm*180mm-460mm*460mm
|
|
Paper Size(mm)
|
≤φ1300mm
|
|
Embossing Roller End
|
Cots, Wool Roll, Steel to Steel
|
|
Counting System
|
Electronic Counting
|
|
Power
|
4-8kw
|
|
Dimensions
|
3200mm*1000mm*1800mm
|
|
Weight
|
1000kg-3500kg
|
|
Speed
|
0-900 sheets/min
|
|
Optional Items
|
Automatic Paper Feeding, Synchronous Conveying and Printing
|
|
Use of Power
|
Frequency Control, Electromagnetic Speed
|
Production Process
Working Principle
Napkin making machine is used to making napkin paper by embossing, printing and folding.
The embossing and printing style can be customized, the printing color can be 1 or 2 color (optioned).
Variable choices will be provided to you ,we are confident that our product will meet all of your requirements.
Performance Characteristics
1. The whole machine frequency control, the unwinding adopts stepless speed regulation, and the function parameters are adjustable;
2. It can produce 1/4 or 1/6 or 1/8 fold according to requirements. Other folding methods can be specified;
3. Can be equipped with color printing device, using flexographic printing;
4. Pneumatic paper feeding device;
5. Automatic counting function;
6. Paper break automatic shutdown system;
7. Fast production speed and low noise, suitable for home production.
2. It can produce 1/4 or 1/6 or 1/8 fold according to requirements. Other folding methods can be specified;
3. Can be equipped with color printing device, using flexographic printing;
4. Pneumatic paper feeding device;
5. Automatic counting function;
6. Paper break automatic shutdown system;
7. Fast production speed and low noise, suitable for home production.
